SGPOE10xx-1xx User's
Guide
The SGPOE10xx-1xx media converter enables
businesses to provide power to network devices over
the existing CAT5 data connection. Transition
Networks' SGPOE10xx-1xx AC powered PoE
media converters combine data received over a fiber
optic link with -48VDC power, provides power to Data Terminal Equipment (DTE) and
Power Devices (PD) over unshielded twisted pair cable. The PoE converters are Power
Sourcing Equipment (PSE), and are fully compatible with Powered Devices (PD) that
comply with the IEEE 802.3af standard. In addition, they have PD signature sensing and
power monitoring features per the IEEE 802.3af standard.
Part Number
Port One - Copper
10/100/1000Base-T
SGPOE1013-100 RJ-45
100 m (328ft.)*
SGPOE1014-100 RJ-45
100 m (328 ft.)*
SGPOE1040-100 RJ-45
100 m (328 ft.)*
SGPOE1040-110 RJ-45
100 m (328 ft.)*
*Cable distances are the typical maximum cable distance. Actual distance is dependent
upon the physical characteristics of the network installation.
Mounting options (sold separately)
Part Number
Description
WMBL
Wall Mount Bracket
Port Two - Fiber
SC, 1000Base-SX, 850 multimode
62.5µm: 220m ( 722ft )
50µm: 550m ( 1804ft)
SC, 1000Base-LX, 1310 single mode
10km (6.2 miles)
100/1000Base-X
SFP slot (empty)
(2) 100/1000Base-X
SFP slots (empty)
Enclosure Mounting . . . . . . . . . .5
DIP Switches . . . . . . . . . . . . . . .6
Internal Jumpers . . . . . . . . . . .10
Operations . . . . . . . . . . . . . . .11
Cable Specifications . . . . . . . . .12
Technical Specification . . . . . .13
Troubleshooting . . . . . . . . . . .14
Contact Us . . . . . . . . . . . . . . .17
Compliance Information . . . . .18
Advertisement
Table of Contents
Related Manuals for Transition Networks SGPOE10 1 Series
Summary of Contents for Transition Networks SGPOE10 1 Series
-
Page 1: Table Of Contents

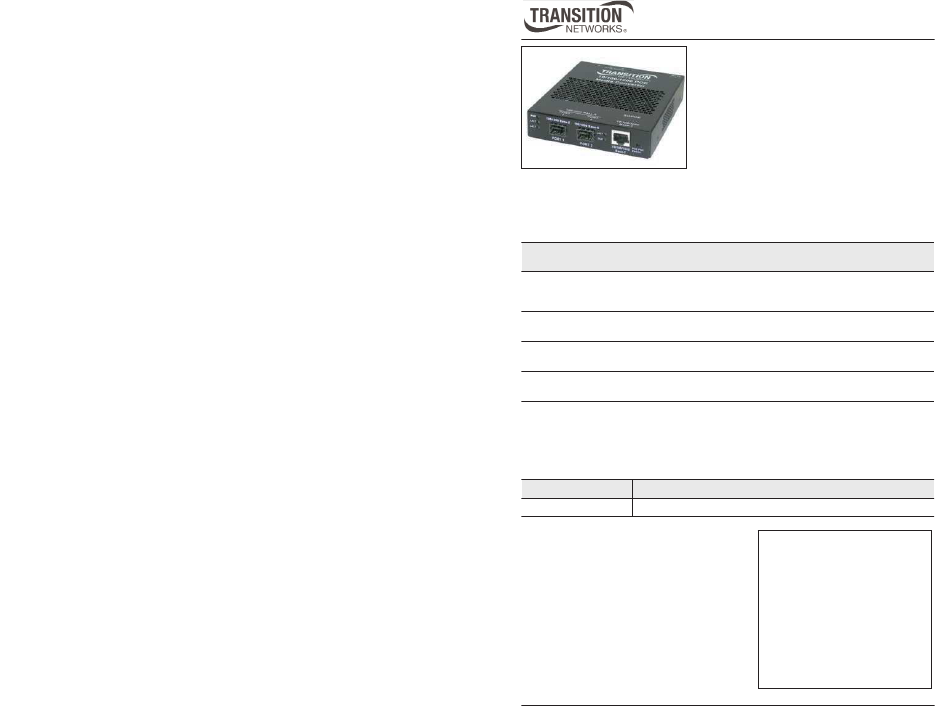

SGPOE10xx-1xx User’s Guide The SGPOE10xx-1xx media converter enables businesses to provide power to network devices over the existing CAT5 data connection. Transition Networks’ SGPOE10xx-1xx AC powered PoE media converters combine data received over a fiber optic link with -48VDC power, provides power to Data Terminal Equipment (DTE) and Power Devices (PD) over unshielded twisted pair cable. -
Page 2: Product Description/Features
POE PWR Automatic Link Restoration 10/100/1000 ERROR Base-T Transition Networks' converters will automatically re-establish link in all network Front Panel conditions: • Without a device reset, the converters will automatically re-establish the link when connected to switches after a link loss. -
Page 3: Enclosure Mounting
512 BT, the path is good. For more information on the 512-Bit Rule, see the white paper titled “Collision Domains” on the Transition Networks website at http://www.transition.com/learning/white papers 24-hour Technical Support: 1-800-260-1312 -- International: 00-1-952-941-7600... -
Page 4: Dip Switches
SGPOE10xx-1xx DIP Switches Installation -- Continued Setting the configuration switches -- continued CAUTION: All installation and service must be performed by qualified service personnel. Read and follow all warning notices and instructions marked on the product and included in this manual. SW1. -
Page 5: Cable & Power Connections
SGPOE10xx-1xx Cable & Power Connections -- Continued Cable & Power Connections Installing the copper cable CAUTION: Associated Ethernet wiring shall be limited to inside the building. Failure to observe this caution could result in damage to the connected equipment. Locate or build 10/100/100Base-TX copper cables with male, RJ-45 connectors installed at both ends. -
Page 6: Internal Jumpers
SGPOE10xx-1xx Internal Jumpers Operation Power over Ethernet (PoE) LEDs The SGPOE10xx-1xx media converter transmits electrical power, along with data, to See individual faceplate for LED placements. The table below explains SGPOE10xx-1xx remote devices over standard twisted-pair cable in an Ethernet network. what the LED functions indicate. -
Page 7: Cable Specifications
SGPOE10xx-1xx Cable Specifications Technical Specifications The physical characteristics must meet or exceed IEEE 802.3™ specifications. For use with Transition Networks Model SGPOE10xx-1xx or equivalent: Copper cable Standards: IEEE 802.3, IEEE 802.3af Data rate: 10/100/1000 Mb/s Category 5: (Minimum Requirement) Gauge: 24 to 22 AWG... -
Page 8: Troubleshooting
SGPOE10xx-1xx Technical Specifications -- continued Troubleshooting -- continued CAUTION: Copper based media ports, e.g., Twisted Pair (TP) Ethernet, USB, RS232, Is the FL LINK LED ON? RS422, RS485, DS1, DS3, Video Coax, etc., are intended to be connected to intra- building (inside plant) link segments that are not subject to lightening transients or •... -
Page 9: Contact Us
00-1-952-941-7600 Model: SGPOE10xx-1xx Series Media Converters Transition now Part Number(s): SGPOE1013-100, SGPOE1014-100, SGPOE1040-100, Chat live via the Web with Transition Networks Technical Support. Log onto SGPOE1040-110 Regulation: EMC Directive 89/336/EEC www.transition.com and click the Tech Support/Transition Now link. Purpose: To declare that the SGPOE10xx-1xx to which this declaration refers is in Web-Based seminars conformity with the following directive(s) standard(s). -
Page 10: Compliance Information
In accordance with European Union Directive 2002/96/EC of the European Parliament radioélectrique édicté par le ministère des Communications du Canada. and of the Council of 27 January 2003, Transition Networks will accept post usage returns of this product for proper disposal. The contact information for this activity can be found in the 'Contact Us' portion of this document. - Page 11 © 2004 - 2010 Transition Networks. All rights reserved. No part of this work may be reproduced or used in any form or by any means - graphic, electronic, or mechanical - without written permission from Transition Networks. 33402.D Printed in the U.S.A.
