User's Guide
SGFEB10xx-12x
SGFEB10xx-12x
Converter
• Copper to Fiber
• 10/100/1000Base-T to 1000Base-SX/LX

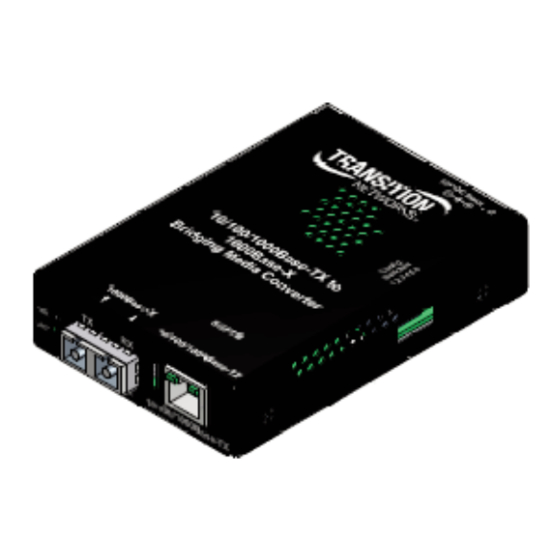

Transition Networks SGFEB10xx-12x series media
converters connect 10Base-T, 100Base-TX, or 1000Base-
T twisted-pair copper cable to 1000Base-SX or
1000Base-LX fiber devices.
The SGFEB10xx-12x has one copper port and one fiber-
optic port.
Part Number
Port 1 - Copper
10/100/1000-Base-T
SGFEB1013-120 RJ-45
100 m (328 ft)
SGFEB1014-120 RJ-45
100 m (328 ft)
SGFEB1015-120 RJ-45
100 m (328 ft)
SGFEB1017-120 RJ-45
100 m (328 ft)
SGFEB1024-120 RJ-45
100 m (328 ft)
SGFEB1035-120 RJ-45
100 m (328 ft)
SGFEB1040-120 RJ-45
100 m (328 ft)
*The SGFEB1024 extends 1000Base-LX beyond 220 meters. Transition Networks
cannot guarantee a full 2km distance on every installation since the distance is largely
dependent on the quality of the fiber, cable installation and splicing.
Distances
The distances listed are the typical maximum cable distance. Actual distance is dependent
upon the physical characteristics of the network installation.
Slide-in-Module Media
Port 2 - Duplex Fiber-Optic
SC, 1000Base-SX, 850nm multimode
220/550m (720/1,805 ft)
SC, 1000Base-LX, 1310nm single mode
10 km (6.2 miles)
SC, 1000Base-LX, 1310nm single mode
25 km (15.5 miles)
SC, 1000Base-LX, 1550nm single mode
65 km (40.4 miles)
SC, 1000Base-LX, 1300nm extended
multimode, 2 km (1.2 miles)*
SC, 1000Base-LX, 1550nm single mode
120 km (77.5 miles)
1000Base-X SFP slot (empty)
Installation . . . . . . . . . . . . . . . . . . .3
Operation . . . . . . . . . . . . . . . . . . .8
Cable Specifications . . . . . . . . . . .11
Technical Specifications . . . . . . . .13
Troubleshooting . . . . . . . . . . . . .14
Contact Us . . . . . . . . . . . . . . . . .15
Compliance Information . . . . . . .16
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Transition Networks SGFEB10xx-12x
Summary of Contents for Transition Networks SGFEB10xx-12x
- Page 1 Transition Networks SGFEB10xx-12x series media converters connect 10Base-T, 100Base-TX, or 1000Base- T twisted-pair copper cable to 1000Base-SX or 1000Base-LX fiber devices. The SGFEB10xx-12x has one copper port and one fiber- optic port. Part Number Port 1 - Copper Port 2 - Duplex Fiber-Optic...
-
Page 2: Installation
SGFEB10xx-12x SGFEB10xx-12x Installation Part Number Port 1 - Copper Port 2 - Duplex Fiber-Optic 10/100/1000Base-T 1000Base LX CAUTION: Wear a grounding device and observe electrostatic discharge precautions SGFEB1029-120 RJ-45 SC, 1310nm TX/1550nm RX single mode when handling the media converter. Failure to observe this caution could result in 100 m (328 ft) 20 km (12.4 miles) - Page 3 Straight-through or crossover twisted-pair cable, depending on installed site devices, MUST be installed at EACH twisted-pair copper link. Note: Factory default is “A” enabled. Transition Networks recommends leaving the device in the “enabled” mode. Power Connector Port Locations The drawing below shows the locations of Port 1 and Port 2 The SGFEB10xx-12x models have two ports.
- Page 4 SGFEB10xx-12x SGFEB10xx-12x Installation—continued Installation -- continued Installing the RJ-45 copper cable Installing the fiber cable Port 1: 10/100/1000Base-T Copper Port Port 2: 1000Base-X Fiber Port Locate a 10/100/1000Base-TX compliant copper cables with male, RJ-45 Locate a 1000Base-X compliant fiber cable with male, two-stranded TX to RX connectors installed at both ends.
-
Page 5: Operation
Status LEDs Auto-Negotiation Use the status LEDs to monitor media converter operations. The Auto-Negotiation feature allows the SGFEB10xx-12x. media converter to Fiber status LEDs automatically configure itself to achieve the best possible mode of operation over a The status LEDs for the 1000Base-SX/LX fiber connection (labeled LACT and link. -
Page 6: Cable Specifications
-17.0 dBm max: 0.0 dBm For more information on the 512-Bit Rule, see the white paper titled “Collision Link Budget: 7.0 dB Domains” on the Transition Networks website at: www.transition.com. SGFEB1014-120 1310nm single mode Pause Fiber Optic Transmitter Power: min: -13.0 dBm... -
Page 7: Technical Specifications
Lifetime • Shielded (STP) OR unshielded twisted-pair (UTP) cable may be used. * Manufacturer’s rated ambient temperature: Tmra range for the SGFEB10xx-12x • All pin pairs (1&2, 3&6, 4&5, 7&8) are active pins in a Gigabit Ethernet network. depends on the Transition Networks PointSystem™ chassis in which this slide-in- •... -
Page 8: Troubleshooting
Regulation: EMC Directive 89/336/EEC Is the Speed LED illuminated? Purpose: To declare that the SGFEB10xx-12x to which this declaration refers is in conformity with the following standards. • The media converter has selected 10 Mb/s operation. If this is not the CISPR 22: 1993;... -
Page 9: Compliance Information
In accordance with European Union Directive 2002/96/EC of the European Parliament and of the Council of 27 January 2003, Transition Networks will accept post usage returns of this product for proper disposal. The contact information for this activity can be found in the 'Contact Us' portion of this document.
