RIUKOE Aura Z3715 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
This product manual contains important information about the safe installation and
use of this projector. Please read and follow these instructions carefully and keep
this manual in a safe place for future reference.
User manual
Please read the instructions carefully before use
Aura Z3715

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Aura Z3715 and is the answer not in the manual?

Questions and answers

Related Manuals for RIUKOE Aura Z3715

Summary of Contents for RIUKOE Aura Z3715

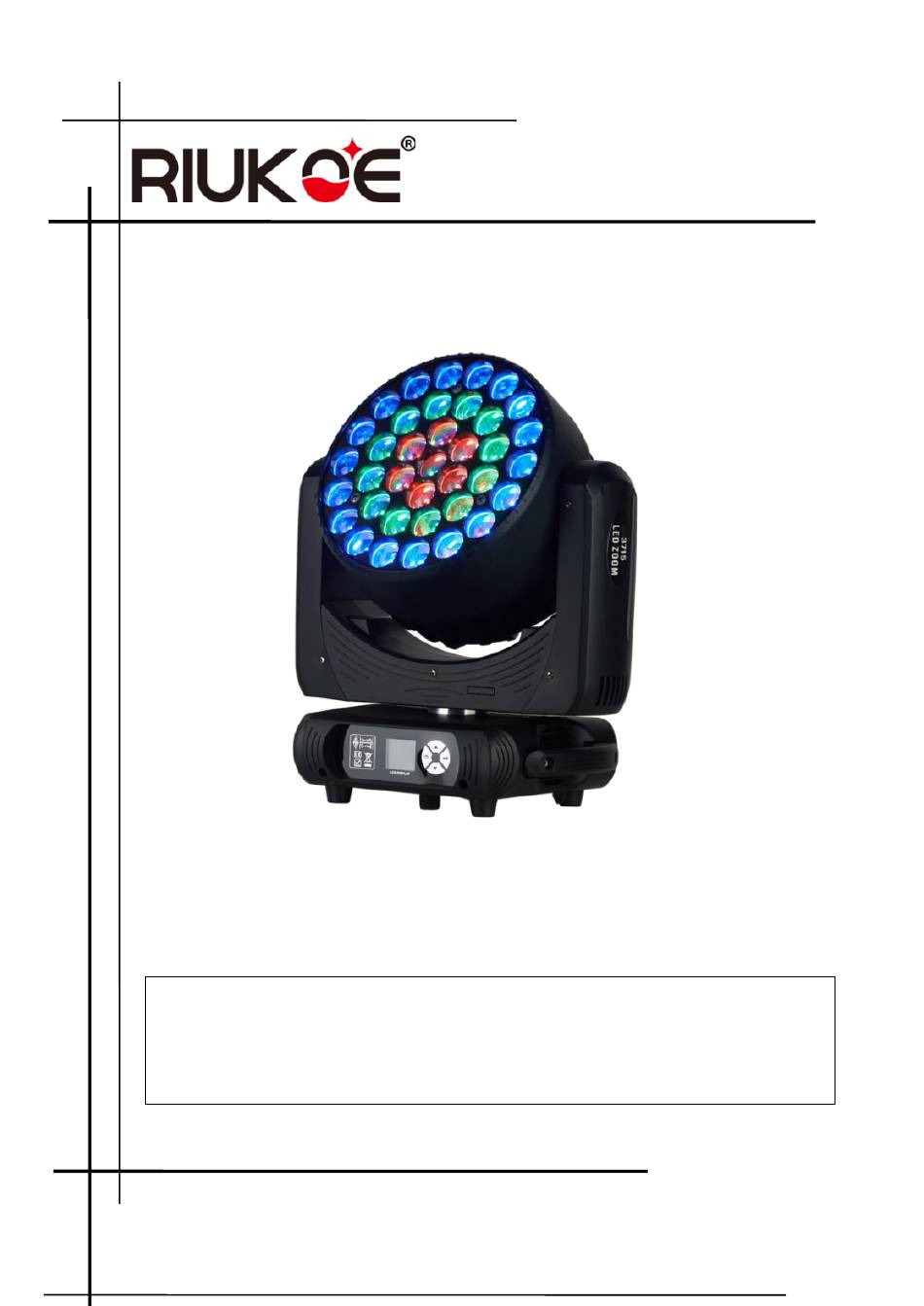

  • Page 1 Aura Z3715 This product manual contains important information about the safe installation and use of this projector. Please read and follow these instructions carefully and keep this manual in a safe place for future reference. User manual Please read the instructions carefully before use...

  • Page 2: Table Of Contents

    INDEX 1.STATEMENT ..................... 2 2.ACCESSORIES ..................2 3.SAFETY INSTRUCTION................2 4.INSTALLATION ..................4 5.TECHNICAL SPECIFICATION..............7 6.PANEL OPTATION ................... 8 7.CHANNEL DESCRIPTION ............... 9 8.TROUBELSHOOTING ................12 9.CLEANING AND MAINTENANCE ............13...

  • Page 3: Statement

    1.STATEMENT product well capability intact packing when leave factory. All of the user should comply with warning item and manual, any misuse cause of the damages are not included in our guarantee, and also cannot be responsible for any malfunction & problem owing to ignore the manual.

  • Page 4: Preventing Electric Shock

    Preventing electric shock WARNING! Risk of electric shock. Always power off/unplug the fixture before removing any covers.  Ensure that the power is turned off when connecting the fixture to the AC  mains supply. Ensure that the fixture is electrically connected to earth (ground). ...

  • Page 5: Installation

    Do not look directly at the light source from close range.  Take precautions to prevent injury due to falls when working at height.  For permanent installation, ensure that the fixture is securely fastened to  a load-bearing surface with suitable corrosion-resistant hardware. For temporary installation with clamps, ensure that the quarter-turn ...

  • Page 6: Dmx-512 Control Connection

    DMX-512 control connection: Connect the provided XLR cable to the female 3-pin XLR output of your controller and the other side to the male 3-pin XLR input of the moving head. You can chain multiple Moving head together through serial linking. The cable needed should be two core, screened cable with XLR input and output connectors.

  • Page 7: Dmx-512 Connection With Dmx Terminator

    DMX-512 connection with DMX terminator: For installations where the DMX cable has to run a long distance or is in an electrically noisy environment, such as in a discotheque, it is recommended to use a DMX terminator. This helps in preventing corruption of the digital control signal by electrical noise.

  • Page 8: Technical Specification

    Please refer to the following diagram to address your DMX512 channel for the first 4 units： CHs Mode Unit 1 Adds Unit 2 Adds Unit 3 Adds Unit 4 Adds 12CH 20CH 32CH 5.TECHNICAL SPECIFICATION Power Supply - Voltage:AC100-240V,50/60Hz - Rated Power:500W Light Source - Light source : 37x15 High Power RGBW LED - Beam angle: 4 °-60 °...

  • Page 9: Panel Optation

    - Electronic zoom Dimmer - Dimming level: 0-100% perfect linear dimming system IP Rated - IP20, indoor only - Working temperature：-20 °- 40 ° Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. 6.PANEL OPTATION Pan Reverse Yes/No...

  • Page 10: Channel Description

    Blue White Dmx Addr 001 - 512 Display Reverse Yes/No Yes/No 简体中文 Language Setting English Yes/No DMX 512 Yes/No Auto 1 Yes/No Operating Mode Auto 2 Yes/No Sound Yes/No 12CH Yes/No Channel Mode 20CH Yes/No 32CH Yes/No 7.CHANNEL DESCRIPTION 12CH 20CH 32CH Function DMX Value Function...
  • Page 11 Zoom 0-255 NARROW BEAM - WIDE BEAM Dimmer 0-255 NO LIGHT - FULL LIGHT Strobe 0-255 0-100%Strobe 0-49 Mode 1 50-99 Mode 2 Dimming mode 100-149 Mode 3 150-199 Mode 4 200-255 Mode 5 Red1 0-255 LED OFF - LED ON Green1 0-255 LED OFF - LED ON...
  • Page 12 70-99 R0%,G100%,B UP 100-129 R0%,G DOWM,B100% 130-159 R UP,G0%,B100% 160-189 R100%,G0%,B DOWM 190-219 R100%,G UP,B UP 220-249 R DOWM,G DOWM,B100% 250-255 R 100%,G 100%,B100%,W100% LED Effect 10-169 Static effect 170-255 Dynamic effect LED Effect Speed 0-255 Slow To Fast Static graphics1 10-19 Static graphics2 20-29...

  • Page 13: Troubelshooting

    0-255 10000K-2500K 0-49 CLOSED 50-99 Auto Run 1 Reset 100-149 Auto Run 2 150-199 Sound 200-255 Reset 8.TROUBELSHOOTING Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: A. The unit does not work, no light and the fan does not work 1.

  • Page 14: Cleaning And Maintenance

    1. The stepper motor might be damaged or the cable connected to the PCB is broken. 2. The motor’s drive IC on the PCB might be out of condition. D. The lamp is cutting out intermittently 1. The lamp is not working well. Check the mains voltage either too high or too low.
  • Page 15 Frequent cleaning is recommended to insure proper function, optimized light output, and an extended life. The frequency of cleaning depends on the environment in which the fixture operates: damp, smoky or particularly dirty environments can cause greater accumulation of dirt on the fixture’s optics. Clean the external lens surface at least every 20 days with a soft cloth ...
  • Page 16 Add: Room 220, Building 3, Seiko Creative Park, Huadu District, Guangzhou +86-20-2904 6476 info@riukoe.com YouTube www.riukoe.com Facebook...
