Labconco FreeZone Quick Installation Manual page 5

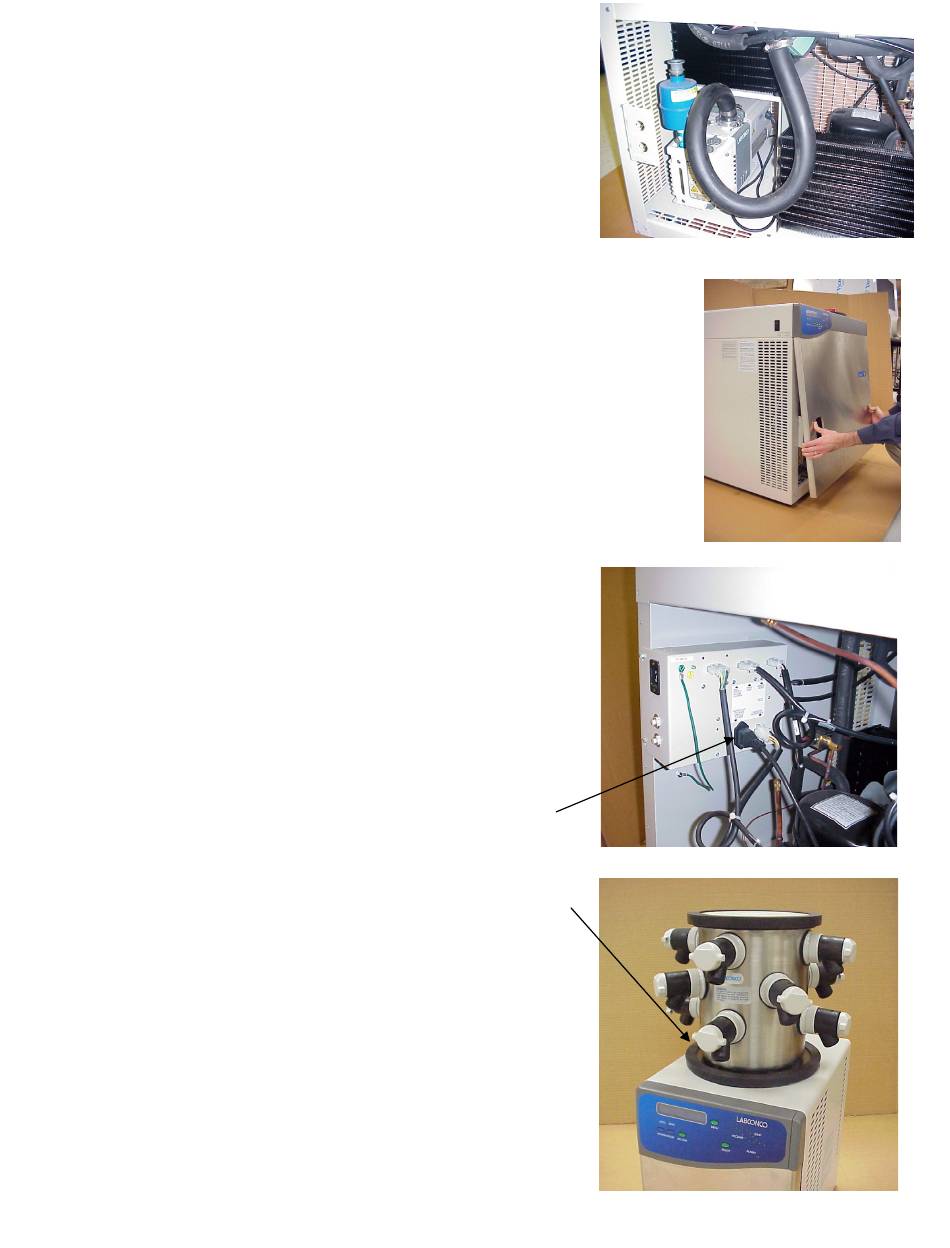

o Place the vacuum pump inside the
cabinet.
o Connect the vacuum hose to the inlet
fitting of the vacuum pump. Clamp
securely.
o Reinstall the front panel by positioning the top edge
under the control panel and pushing the bottom
inward.
o CAUTION - Make sure that power to the
Freeze Dryer is disconnected before
removing the lower back panel. Do NOT
remove the upper back panel.
o Plug the vacuum pump power cord into
the receptacle in the junction box marked
Vacuum Pump.
o Replace the rear panel.
Step 5. Installing a Chamber or Manifold
(except 4.5L models which have chamber
already attached)
• 1L and 2.5L Models
o Place the collector chamber lid on top of
the chamber.
o Center the flat rubber gasket on the hole
in the center of the chamber lid.
o Place the chamber or manifold over the
gasket.
Vacuum Pump
Receptacle
Chamber Lid
Page 4 of 5
Upper Back
Panel
