5.12.2 Checking and Adjusting Lubricant Level – Snapping Unit Gearbox
There is one gearbox in each snapping unit. The lubricant level in each one needs to be checked, and if necessary, adjusted.
For lubricant type and quantity, refer to the inside back cover of this document.

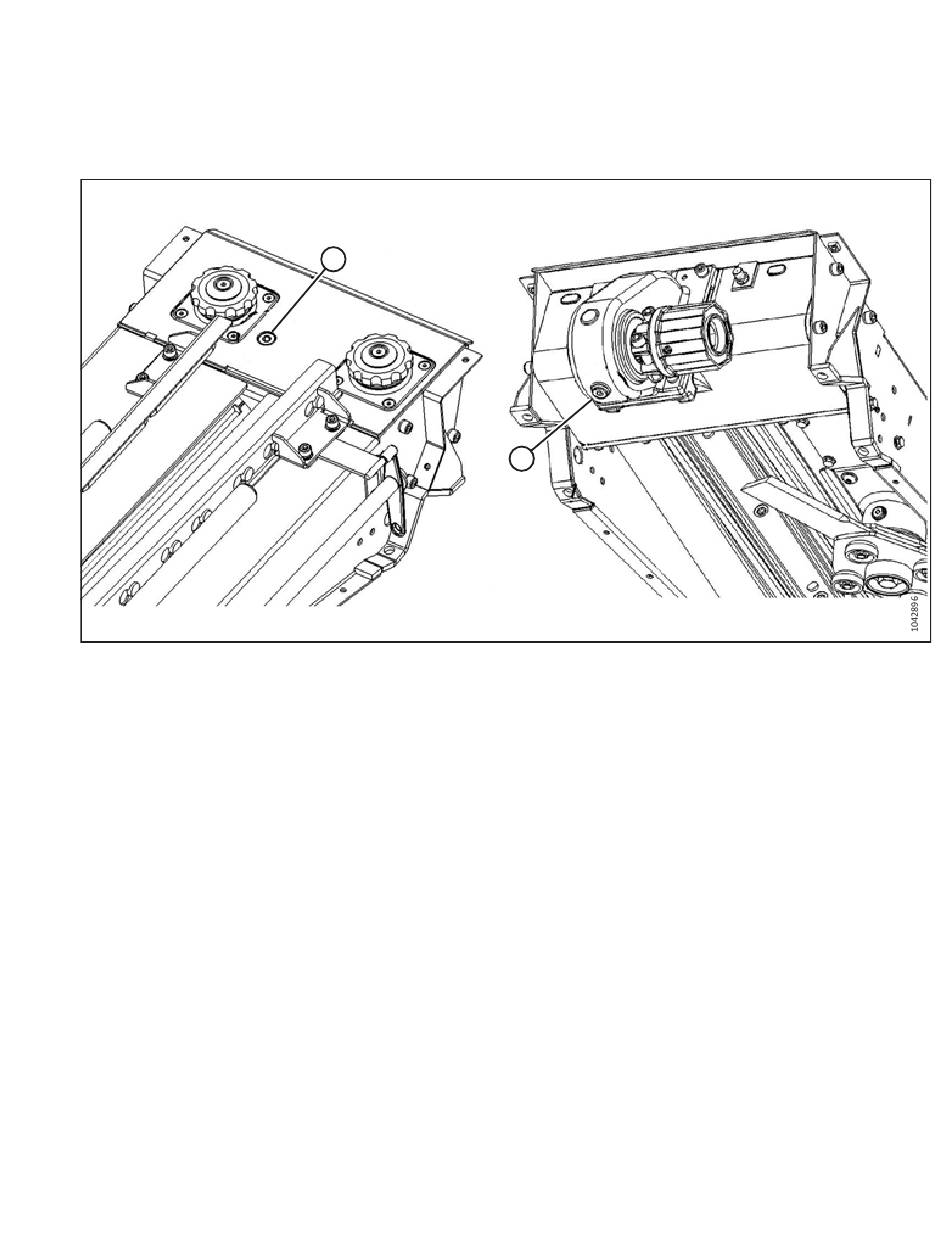

Figure 5.27: Snapping Unit Gearbox
A - Lubricant Fill Plug and Dipstick
1. With the header resting on 10 x 10 cm (4 x 4 in.) blocks and the header angle at 23°, inspect the first snapping unit
gearbox. Unscrew dipstick (A), wipe the dipstick, then replace but do not screw it back in, wait, then remove the
dipstick again. The lubricant level should be midway between the minimum and maximum warning lines.
2. If there isn't enough lubricant, add more.
3. Repeat this procedure for each of the snapping unit gearboxes.
262362
PERFORMING PREDELIVERY CHECKS
A
B - Lubricant Drain Plug
67
B
