2. Check the gap between auger flighting (A) and rear
horizontal stripper bar (B) as shown in the illustration at
right. If the gap is less than or greater than 6 mm (1/4 in.)
across the length of the auger, adjustment is required.
3. Open the right side shield.
4. Loosen bolts (A).
5. Loosen Torx
®
bolt (C) securing the tensioner pulley, and
adjust draw bolt (D) to loosen the chain.
6. Rigid headers: To adjust the auger-to-pan clearance, slightly
loosen bolt (E), then use bolt (B) to move the auger.
7. To adjust the auger-to-stripper bar clearance, slightly
loosen bolt (B), then use bolt (E) to move the auger.
8. Once the auger is positioned correctly, tighten all bolts.
9. Repeat this procedure on the left side of the header.
262362
PERFORMING PREDELIVERY CHECKS

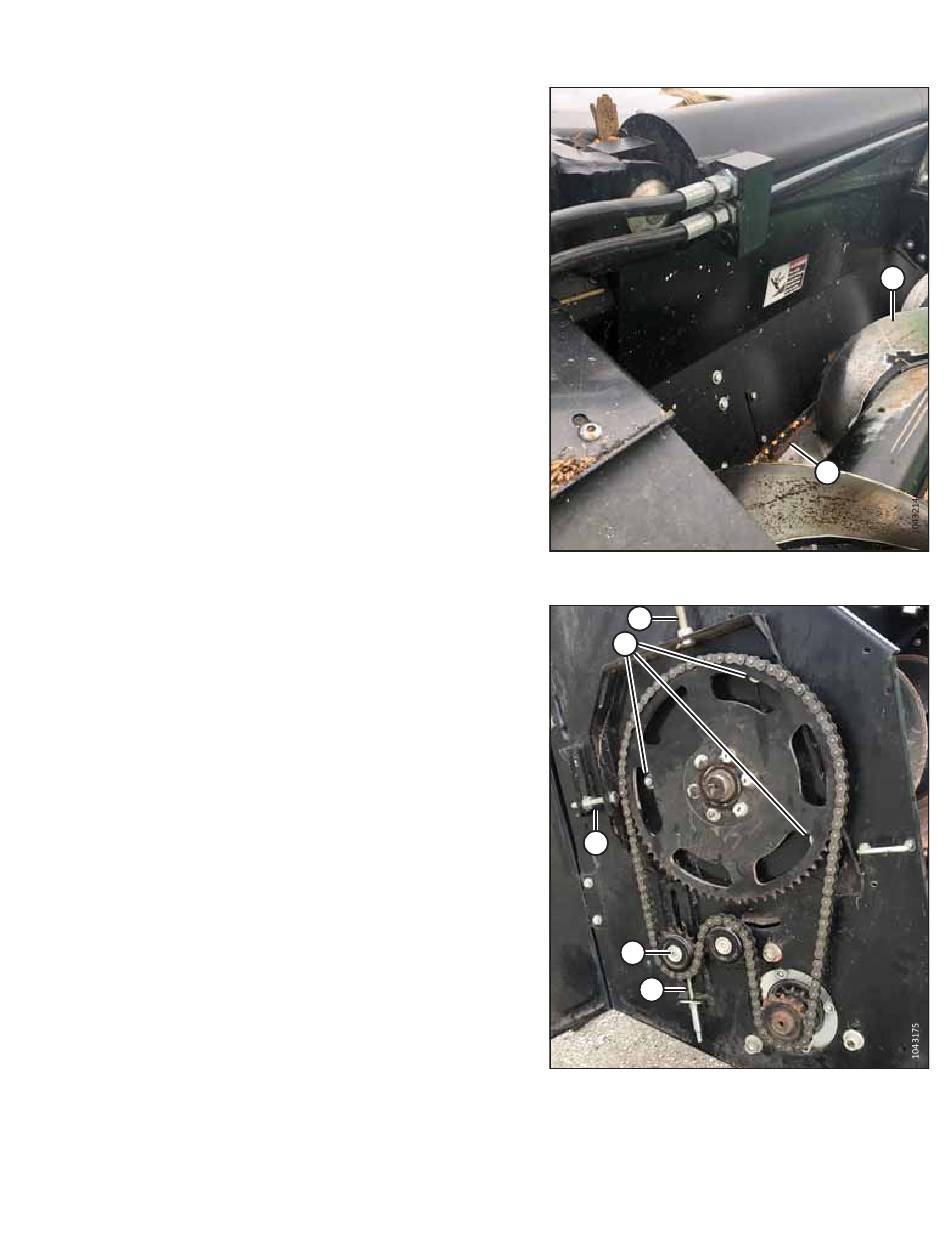

Figure 5.14: Auger-to-Stripper Bar Clearance
Figure 5.15: Auger Drive – Right Side
57
B
A
E
C
D
A
B
Revision A
