3. Insert shaft (A) through the upper hole in each divider (B),
and then secure the shaft to support (C) at the top of the
header side shield with retaining plate (D) and M6 bolt (E).
NOTE:
The hardware is retained from Step
hardware secures each end of the shaft to the divider and
support.
NOTE:
For a close-up view, refer to Figure
4. Remove the shaft from the lower holes in the divider, and
insert it through snout (F) and then through the lower
divider holes. Secure the shaft in place with two
spacers (G), two spring washers (H), and two M12 x 35
®
Torx hex socket button-head bolts (J). Apply medium-
strength threadlocker (Loctite
bolts before installing them.
262362
ASSEMBLING HEADER
1, page 36. One set of
4.32, page 37.
® 243 or equivalent) to the
C
A
D
E
B
J H

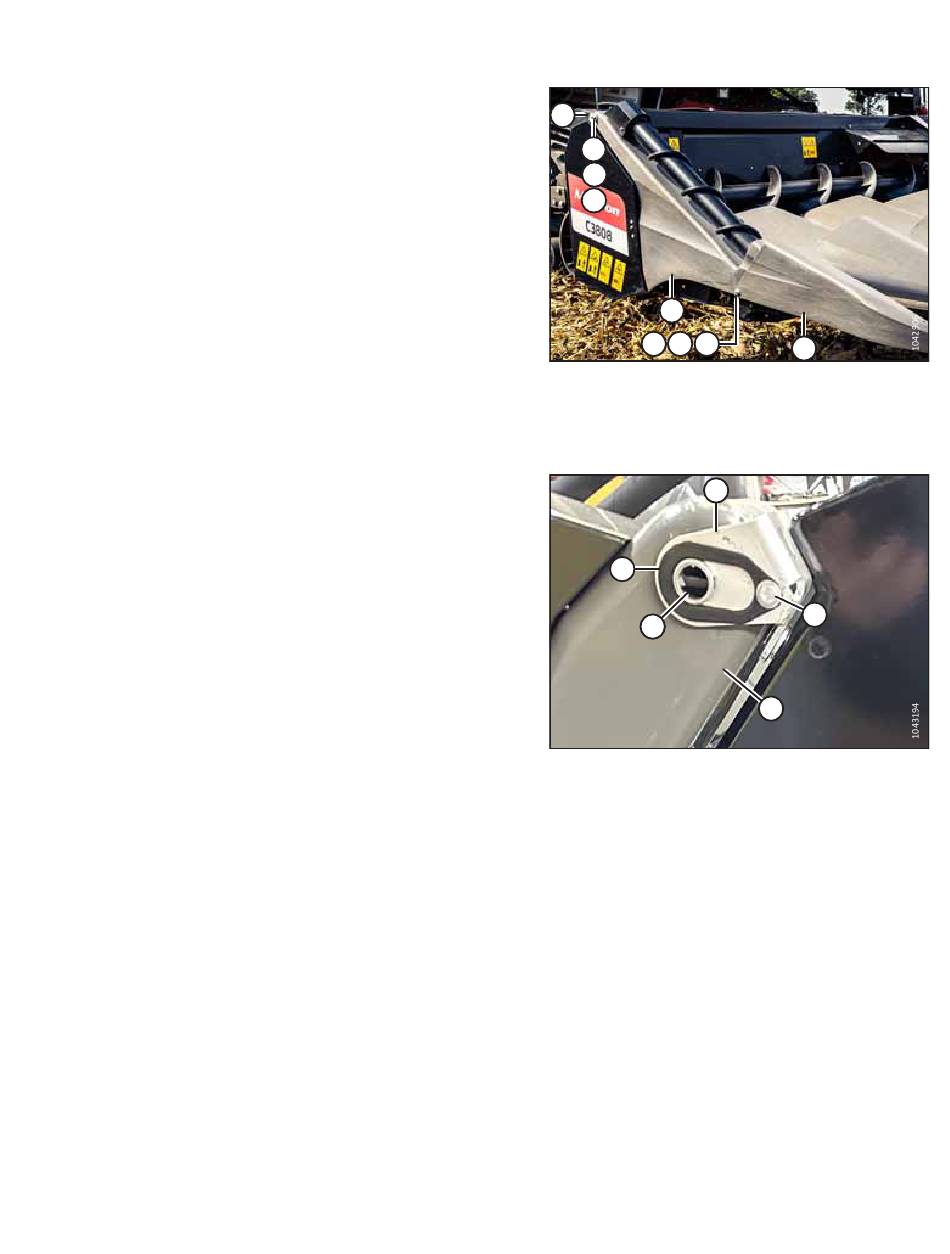

Figure 4.31: RED Installed on Header – Right Side
D
A
Figure 4.32: Close-Up of Top Divider Connection Point
– Left Side
A - Shaft
C - Support
E - M6 Bolt
37
G
F
C
E
B
B - Divider
D - Retaining Plate
