Chapter 6: Configuring Combine

If rotary end dividers (REDs), an auto header height control (AHHC) system, or row guidance have been installed, the
combine that will be used to operate the header will need to be configured to use them.
Refer to the appropriate instructions for your combine brand:
6.1 Configuring Case IH Combines, page 71
6.2 Configuring Challenger
6.3 Configuring CLAAS Combines, page 73
6.4 Configuring IDEAL
6.5 Configuring John Deere Combines, page 75
6.6 Configuring New Holland Combines, page 76

6.1 Configuring Case IH Combines

Case IH combines can be configured to use rotary end dividers (REDs) and auto header height control (AHHC) if necessary.
Setting up REDs
1. On the combine display, navigate to the HEADER
SETUP 1 page.
2. From DECK PLATES menu (A) and HYDRAULIC ROTATING
DIVIDERS menu (B), select INSTALLED. The speed of the
REDs is controlled the same as the reel speed would be
controlled on a platform header.
Configuring AHHC
3. Follow the instructions on the combine display to configure the AHHC. For assistance, refer to the combine operator's
manual.
262362
®
, Gleaner
®
, and Massey Ferguson
Combines, page 74
®
Combines, page 72
A
B

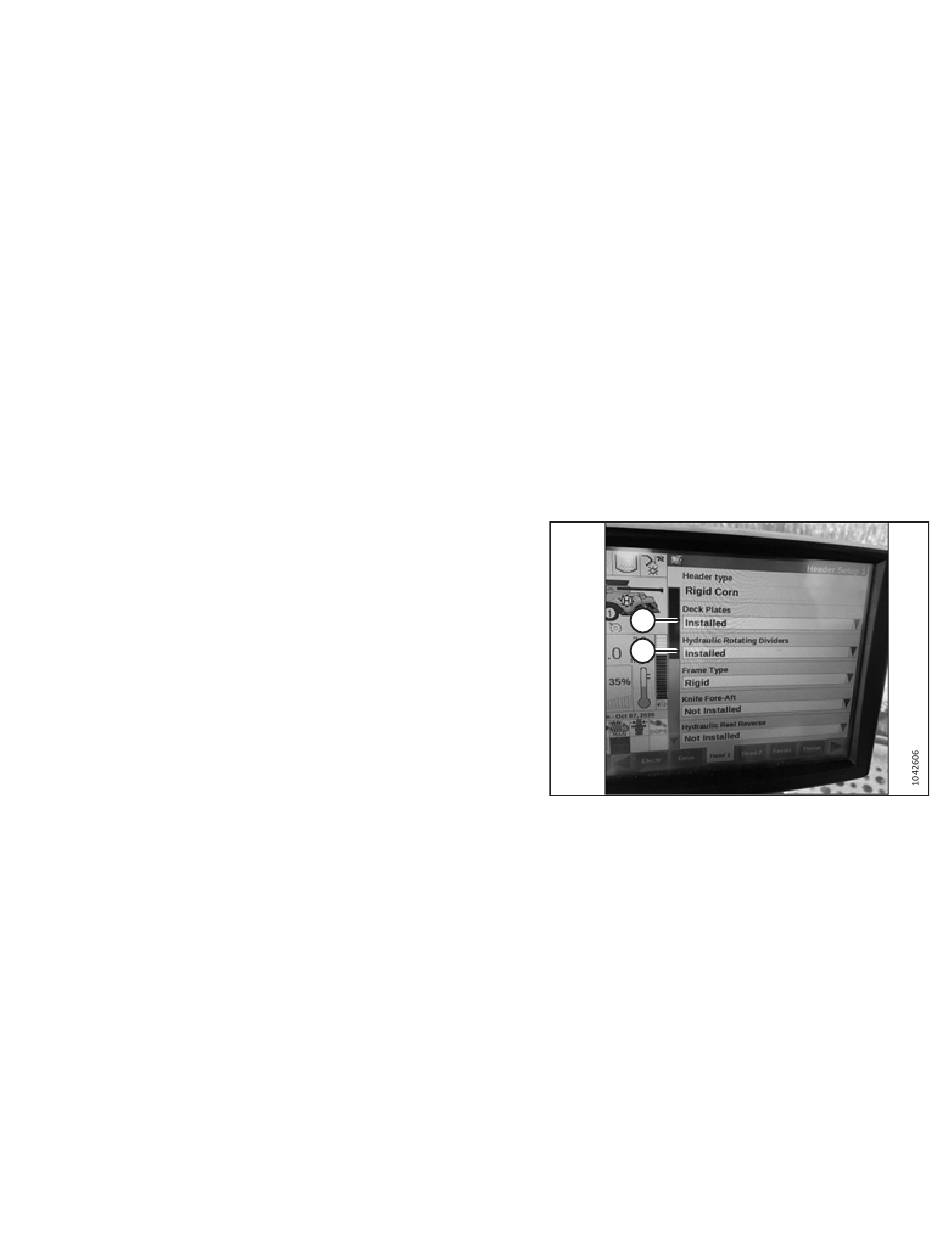

Figure 6.1: Case IH Combine Display – Header
Setup 1 Page
71
Revision A
