4.9 Installing Stubble Stompers (Option)

If stubble stompers were ordered with the header, they can be installed now. A maximum of two Stubble Stomper kits can
be installed on C3006, C3006C, C2208, C2208C, C3008F, and C3008CF headers; a maximum of three kits can be installed on
other headers. There are two stompers in each kit.
Stubble stompers can be installed in the square tubing (A) on either side of the transition frame, in the round tubes (B)
holding the header stands, and in any additional round tubes (C); they cannot be installed below the combine feeder
house. The number of vertical round tubes varies with the header model.
C C

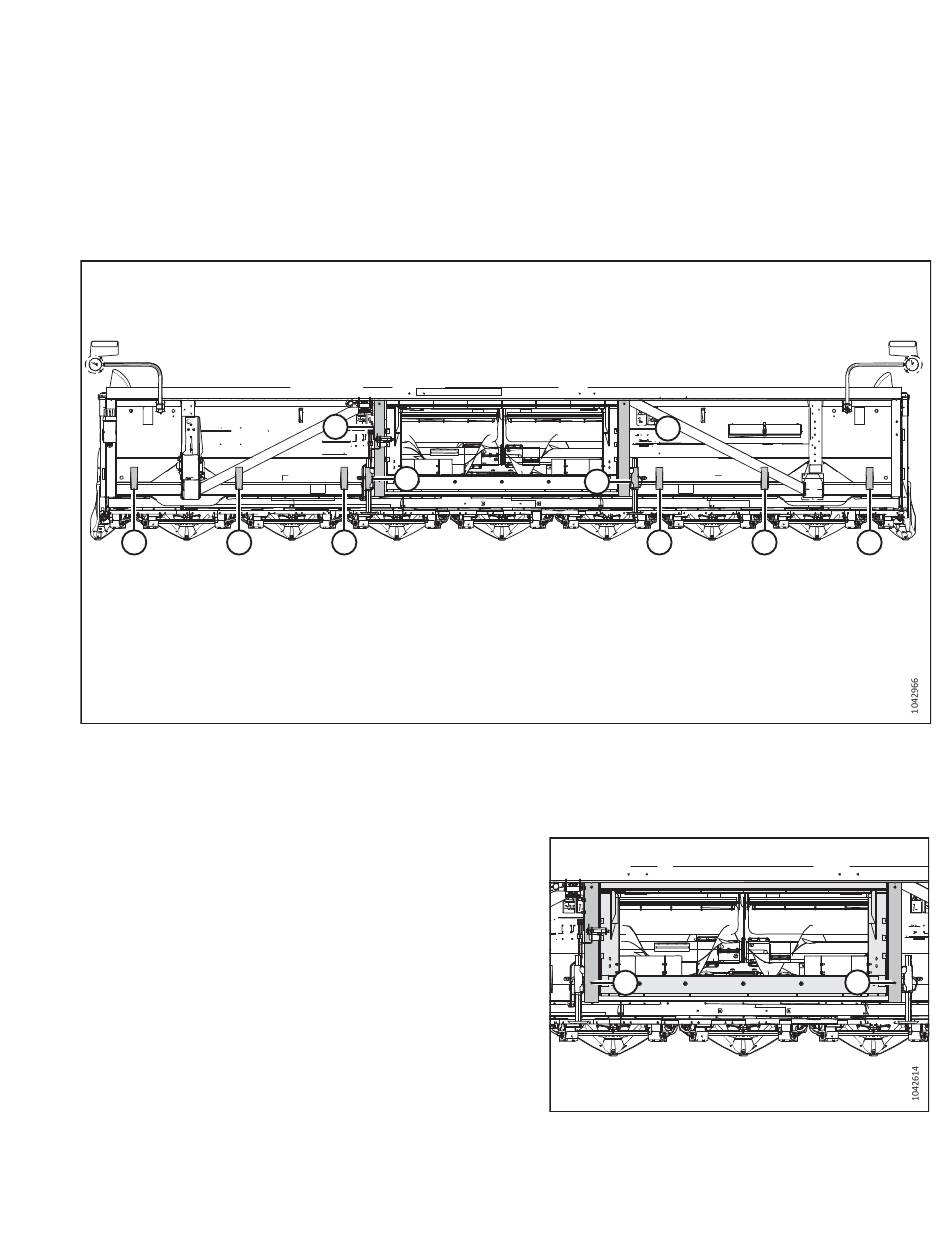

Figure 4.47: Stubble Stomper Installation Locations – C3808
To install stubble stompers, follow these steps:
1. Remove the Stubble Stomper kits from the shipping crate.
2. Identify which rows you want to stomp. If any of the rows
line up with square tubing (A) on either side of the
transition frame, proceed to Step
rows line up with square tubing (A), proceed to Step
page 46.
3. Remove any filler plugs from the bottoms of square
tubing (A).
262362
ASSEMBLING HEADER
A
B
C
3, page 45. If none of the
7,
45
A
B
C
A
Figure 4.48: Square Tubing
C C
A
Revision A
