4.7 Installing End Dividers

Each header must have either standard end dividers or rotary end dividers (REDs). Tall end dividers (TEDs) can be installed
on standard end dividers or REDs.
Follow the installation procedure(s) for the dividers shipped with your header:
•
4.7.1 Installing Standard End Dividers, page 35
•
4.7.2 Installing Rotary End Dividers, page 36
•
4.7.3 Installing Tall End Dividers, page 38

4.7.1 Installing Standard End Dividers

One divider needs to be installed on each end of the header.
1. Remove the hardware securing each divider to the shipping brackets, then using a forklift or crane, remove the
dividers from the header. Retain the hardware for reinstallation.
2. Remove the shipping brackets from the header.
3. Insert shaft (A) through the upper hole in each divider (B),
and then secure the shaft to support (C) at the top of the
header side shield with retaining plate (D) and M6 bolt (E).
NOTE:
The hardware is retained from Step
NOTE:
For a close-up view, refer to Figure
262362
ASSEMBLING HEADER
1, page 35.
4.28, page 35.
35
B

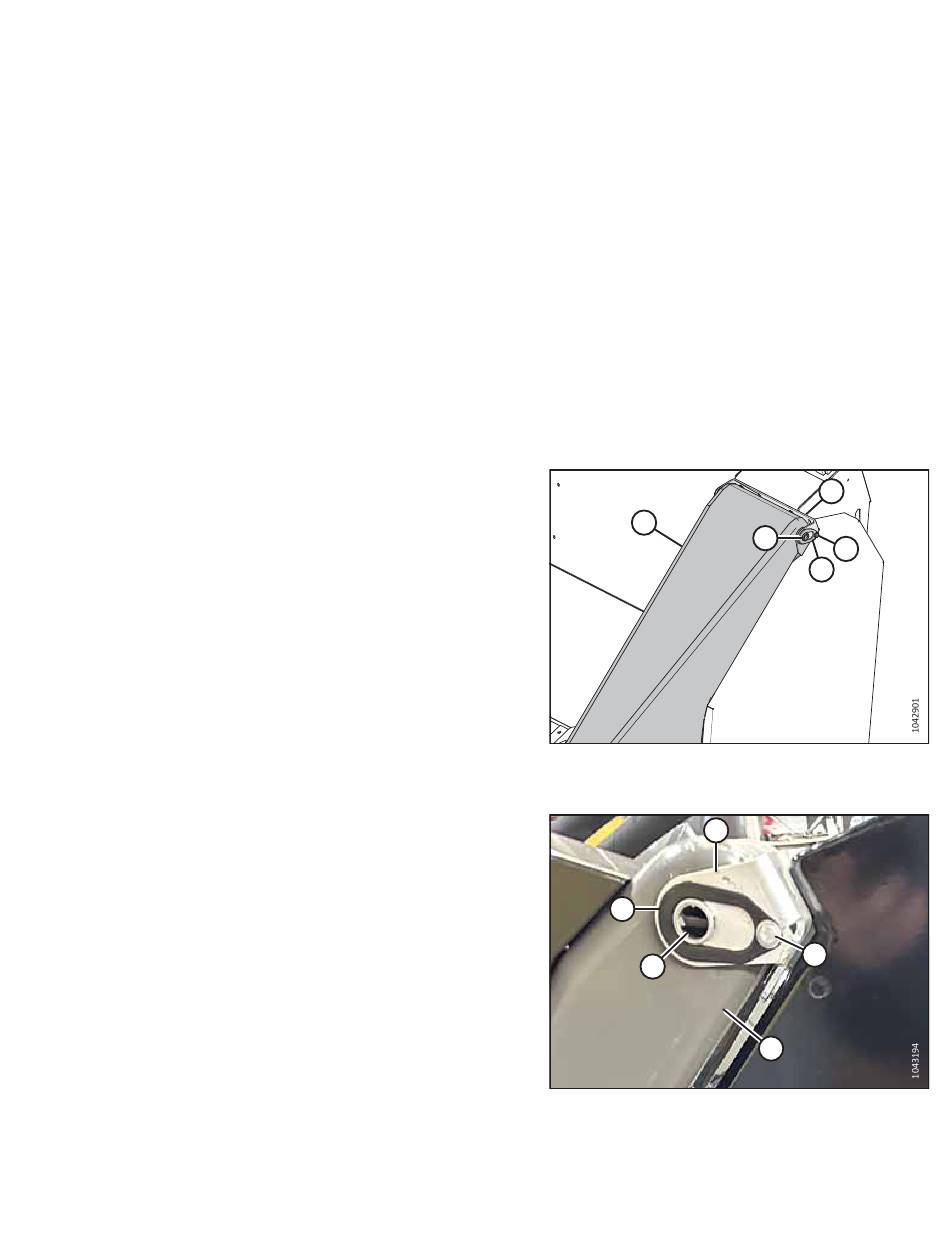

Figure 4.27: Standard End Divider Installed on Left
Side Shield
C
D
A
Figure 4.28: Close-Up of Top Divider Connection Point
A - Shaft
C - Support
E - M6 Bolt
C
A
E
D
E
B
B - Divider
D - Retaining Plate
