16 - TEST OF IP65 RATING
To check sealing after servicing use the IPTESTBOX.
1

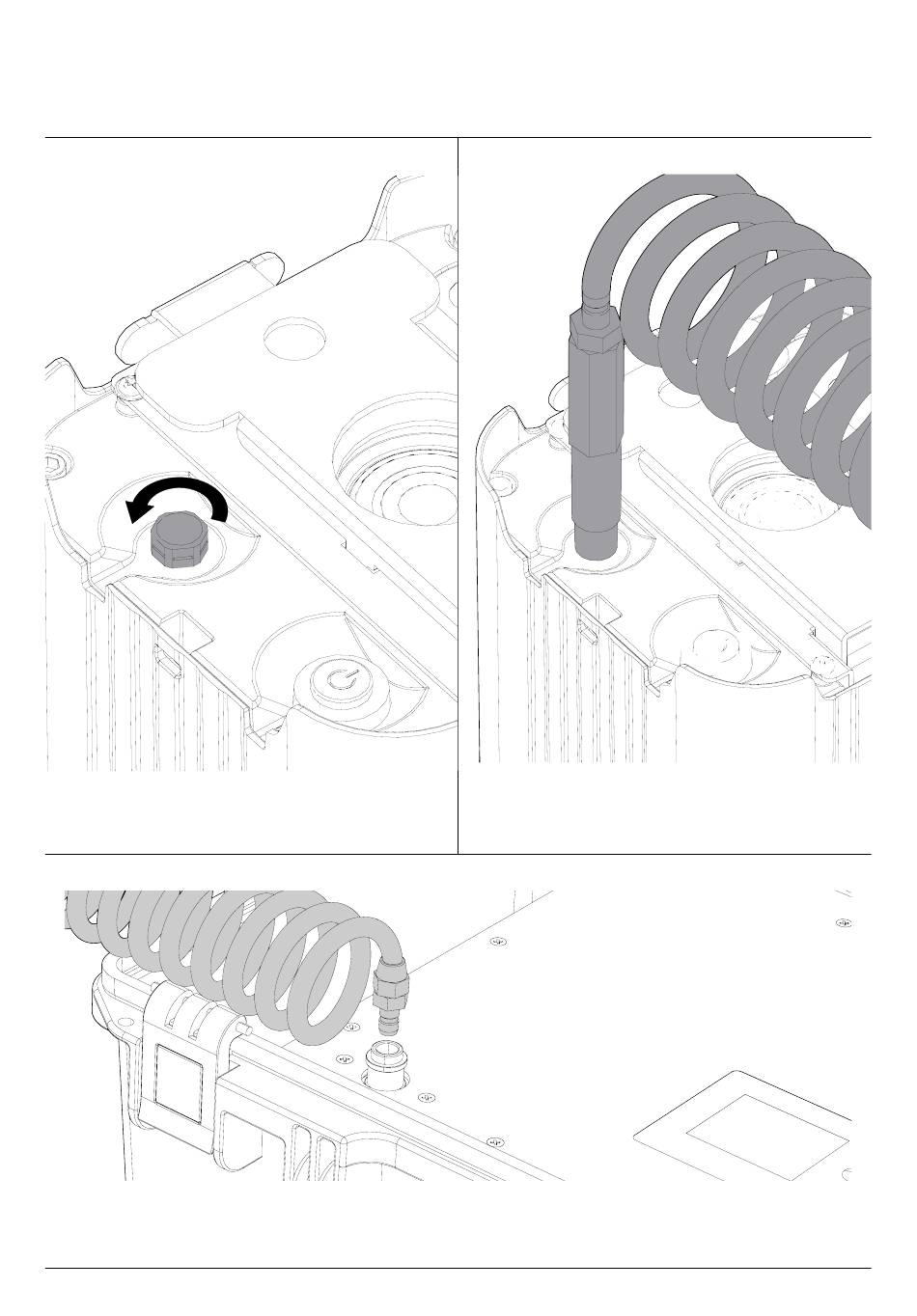

Remove the gore valve from the connections panel.Insert the threaded end into the threaded valve
3
Connect the air hose to the IPTESTBOX by inserting the quick-connect fitting into the coupler.
For the operating procedure using the instrument, refer to the IPTESTBOX user manual.
hole socket.
NOTE: IPTBM6ADP M6 adapter is required.
PROLIGHTS - Smart BatPlusNeo
2
Fig. 09
35
