SmartBat PlusNeo

60W Outdoor battery uplighter with

RGB+WW LED source

USER MANUAL

English version

Rev.01 - 01/25 - Preliminary

Need help?

Do you have a question about the SmartBat PlusNeo and is the answer not in the manual?

Questions and answers

Summary of Contents for ProLights SmartBat PlusNeo

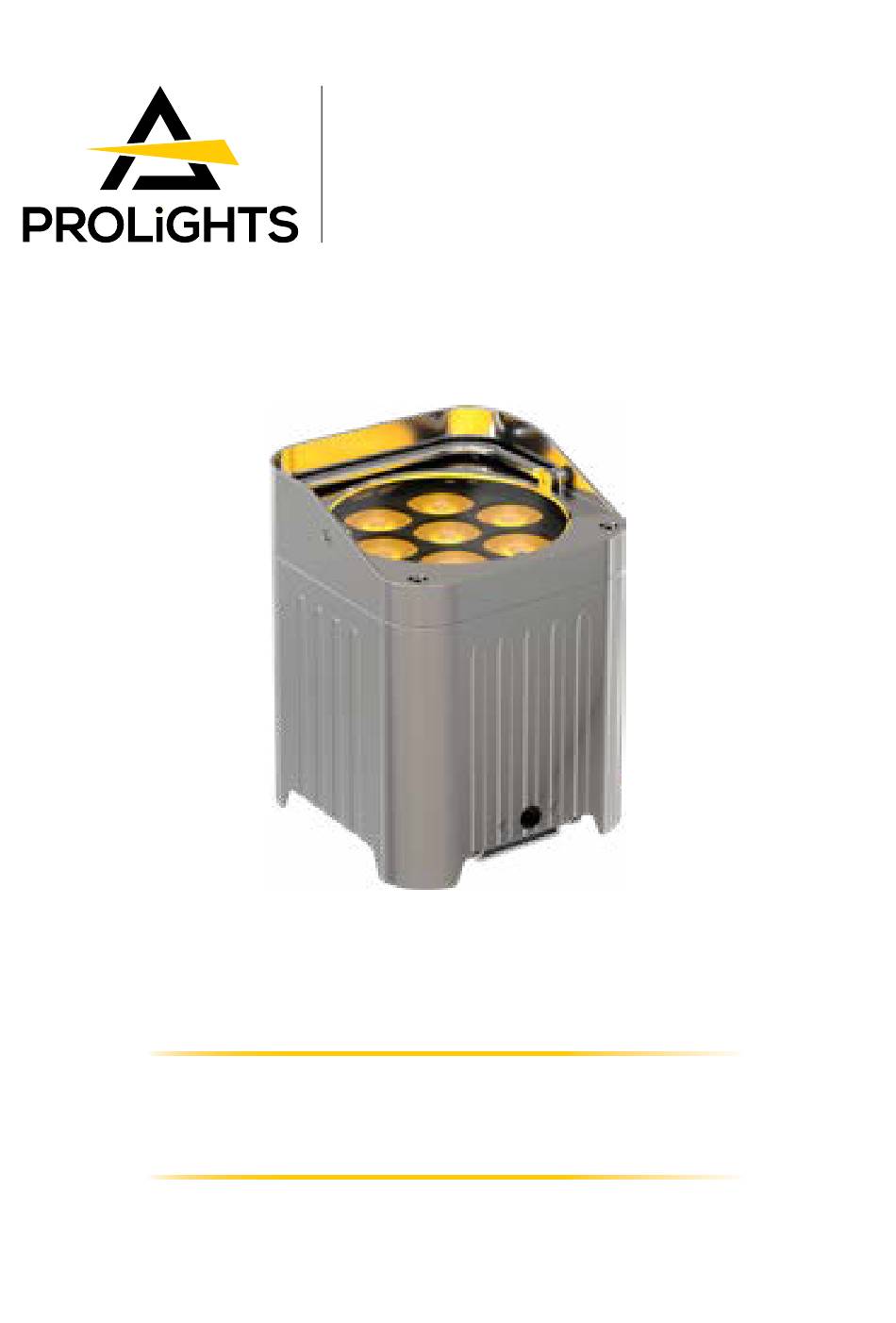

Page 1 SmartBat PlusNeo 60W Outdoor battery uplighter with RGB+WW LED source USER MANUAL English version Rev.01 - 01/25 - Preliminary...
Page 2 PROLIGHTS product are trademarks OWNED or licensed by Music & Lights S.r.l., its affiliates, and subsidiaries. PROLIGHTS is a registered trademark by Music & Lights S.r.l. All right reserved. Music & Lights – Via A. Olivetti, snc - 04026 - Minturno (LT) ITALY.
Page 3 SNOOT / FILTER (CODE SBPNEOSNOOT - SBPNEOFILT20/40/60/1060/3060 - OPTIONAL) ........................34 16 - TEST OF IP65 RATING 17 - MAINTENANCE MAINTENANCE AND CLEANING THE PRODUCT............36 VISUAL CHECK OF PRODUCT HOUSING ..............36 TROUBLESHOOTING ..................... 37 PROLIGHTS - Smart BatPlusNeo...
Page 4 Overview • Only specialised technicians may service the battery. • Use only Prolights approved batteries in your Prolights products. • Do not leave the projector unused for extended periods of time in storage. • Lithium-Ion batteries continue to slowly discharge (self-discharge) when not in use or while in storage.
Page 5 Charging • Refer to your product’s user manual and/or online help for detailed information about charging its battery. The latest version of your Prolights product user manual is avail- able at www.prolights.it. • Avoid charging if the projector has any damage, malfunction, tampering or signs of moisture inside.
Page 6 • Do not reapply power until repairs have been completed. • Refer any service operation not described in this manual to PROLIGHTS Service team or an authorized PROLIGHTS service center.
Page 7 • Warning! Disconnect the fixture from AC mains power and allow to cool for at least 10 minutes before handling. • Only technicians who are authorized by PROLIGHTS or Authorised service partners are permitted to open the fixture. • Users may carry out external cleaning, following the warnings and instructions pro- vided, but any service operation not described in this manual must be referred to a qualified service technician.
Page 8 2. This device must accept any interference received, including interference that may cause undesired operation. Other approvals • The product meets the safety requirements of the certification procedures of the market in which it is placed and sold. PROLIGHTS - Smart BatPlusNeo...
Page 9 Check the updated accessories list, description and informations of the product at the following link: https://www.prolights.it/product/SMARTBATPLUSNEO#accessories 2 - TECHNICAL DRAWING 138 mm 180 mm [5.4 in] [7.1 in] Weight: 3,4 kg - 7,5 lbs Fig. 01 PROLIGHTS - Smart BatPlusNeo...
Page 10 Warning! When clamping the fixture to a truss or other structure at any angle, use clamps of half-cou- pler type. Do not use any type of clamp that does not completely encircle the structure when fastened. Press this plate to tilt the projector Fig. 02 PROLIGHTS - Smart BatPlusNeo...
Page 11 4. To completely power down the product, use the power switch located on the unit Note: The charging base must remain connected to power for charging functionality. The product itself operates independently on battery power when removed from the base. PROLIGHTS - Smart BatPlusNeo...
Page 12 3. CHARGING POINT. 4. USER INTERFACE with display and buttons for access to the control panel functions. 5. BUTTON to tilt the unit. 6. HANDLE to transport the unit. 7. M12 HOLE for truss installations. Fig. 03 PROLIGHTS - Smart BatPlusNeo...
Page 13 2. Use UP/DOWN buttons for select Wireless, then press ENTER to confirm. 3. Enable TX UNLINK to ON 8 (please note that TX UNLINK will be available only if WDMX mode is set to Transmitter). • All connected receivers will be unlinked. PROLIGHTS - Smart BatPlusNeo...
Page 14 1. Push MENU button untill you show CONNECT on display, then press ENTER button to confirm. 2. Use UP/DOWN buttons for select Wireless, then press ENTER to confirm. 3. Enable RX RESET to ON. • The wireless icon on the receiver display indicates the received signal strength. PROLIGHTS - Smart BatPlusNeo...
Page 15 • ENTER: used to confirm the current menu or confirm the current function value or option within a menu. • UP: browse upwards through the menu list and increases the numeric value displayed. • DOWN: browse downwards through the menu list and decreases the nu- meric value displayed. PROLIGHTS - Smart BatPlusNeo...
Page 16 Only in Trasmitter mode. TX UNLINK Disconnect the transmitter from all receivers. TX unlink unlocks only if WDMX mode is on transmitter. RX RESET Total reset of the receiver. RX reset unlocks only if WDMX mode is receiver. PROLIGHTS - Smart BatPlusNeo...
Page 17 <300> ON CYCLE ered on MAINTENANCE How many hours elapsed from the last ELAPSED TIME <99H> TIME maintenance/reset Fixture will show maintenance allert after ALERT PERIOD 10 - 750 this amount of time (Default 500H) TEMPERATURE PROLIGHTS - Smart BatPlusNeo...
Page 18 <10.000k> SPEED <1-100> Default value 50 STATIC FIXED COLORS Static mode for Standalone will keep DIMMER the selected Color on to the selected <000-255> dimmer level RGBW COLOR MACRO "Color Macro" DIMMER on page 25 <000-255> PROLIGHTS - Smart BatPlusNeo...
Page 19 Stand Alone Menu Quick access to Stand Alone menu DOWN for 3 sec in Home Screen Factory reload Menu Quick access to Factory reload MENU + UP keep pushed while Factory Default Restore default value powering on PROLIGHTS - Smart BatPlusNeo...
Page 20 DMX512 SLOT_INFO 0x0120 Setup DMX512 SLOT_DESCRIPTION 0x0121 Setup DMX512 DEFAULT_SLOT_VALUE 0x0122 Setup DMX512 DMX_BLOCK_ADDRESS 0x0140 Setup DMX512 DMX_FAIL_MODE 0x0141 Setup DMX512 DMX_STARTUP_MODE 0x0142 Setup Dimmer DIMMER_INFO 0x0340 Settings Dimmer MINIMUM_LEVEL 0x0341 Settings Dimmer MAXIMUM_LEVEL 0x0342 Settings PROLIGHTS - Smart BatPlusNeo...
Page 21 Control 0x1030 PRESET_PLAYBACK Control 0x1031 IDENTIFY_MODE Control 0x1040 PRESET_INFO Control 0x1041 PRESET_STATUS Control 0x1042 POWER_ON_SELF_TEST Control 0x1044 0: HOLD Manufacturer DMX FAULT 0x82DD 1: BLCK PIDs 2:SA 0:MST DMX Manufacturer 1:MST NO MASTER/SLAVE 0x8211 PIDs 2:SLAVE PROLIGHTS - Smart BatPlusNeo...
Page 22 0x82DF PERIOD PIDs MAINTENANCE TIME:ELAPSED Manufacturer 0x82E0 TIME PIDs Manufacturer WIRELESS QUALITY 0x82F4 PIDs Manufacturer ERROR MESSAGE 0x82EA PIDs Manufacturer 0:OFF TUNGSTEN EMULATION 0x82BC PIDs 1:ON Manufacturer POWER CONSUMPTION 0x82EF PIDs Manufacturer CURRENT HOURS 0x82C5 PIDs PROLIGHTS - Smart BatPlusNeo...
Page 23 LEGACY HSI DMX BASIC MODES BASIC STANDARD EXTENDED PARAMETER (1ch) (5ch) (11ch) (17ch) DIMMER DIMMER FINE STROBE CROSSFADE RED FINE GREEN GREEN FINE BLUE BLUE FINE WARM WHITE WARM WHITE FINE COLOR MACRO CTO ON COLORS CONTROL PROLIGHTS - Smart BatPlusNeo...
Page 24 DMX LEGACY MODES 10CH PARAMETER DIMMER GREEN BLUE WARM WHITE STROBE COLOR MACRO AUTO PROGRAM AUTO SPEED DIMMER CURVE SATURATION BRIGHTNESS INTENSITY PROLIGHTS - Smart BatPlusNeo...
Page 25 4200 4300 12743 13653 4300 4400 13653 14563 4400 4500 14563 15474 4500 4600 15474 16384 4600 4700 16384 17294 4700 4800 17294 18204 4800 4900 18204 19114 4900 5000 19114 20025 5000 5100 20025 20935 PROLIGHTS - Smart BatPlusNeo...
Page 26 9100 9200 57343 58253 9200 9300 58253 59164 9300 9400 59164 60074 9400 9500 60074 60984 9500 9600 60984 61894 9600 9700 61894 62804 9700 9800 62804 63715 9800 9900 63715 64625 9900 10000 64625 65535 PROLIGHTS - Smart BatPlusNeo...
Page 27 ALICE BLLUE CONGO BLUE DARK STEEL BLUE DEEP LAVENDER LILAC TING DAYLIGHT BLUE FLAME RED BASTARD AMBER DEEP ORANGE PALE GOLD APRICOT BRIGHT BLUE PRIMARY GREEN SPECIAL LAVENDER PALE LAVENDER DEEP GOLDEN AMBER MEDIUM BLUE BRIGHT PINK PROLIGHTS - Smart BatPlusNeo...
Page 28 SUNSET RED DARK AMBER GOLD AMBER MEDIUM AMBER FIRE SURPRISE PEACH STRAW TINT MEDIUM YELLOW LEE MINUS GREEN PALE GOLD ORANGE DEEP STRAW ROSE PURPLE DEEP PURPLE SOFT GREEN Reserved for future use 2700K 2800K 3000K PROLIGHTS - Smart BatPlusNeo...
Page 29 8 bit value 16 bit value Function Note From From No Function Default @ 0 Always on Hold 3s to take function Backlight Flip Display Key Lock Reserved Linear S-curve Dimmer Curve Square Law Inverse Square PROLIGHTS - Smart BatPlusNeo...
Page 30 Stand Alone Emergency Reserved Tungsten Emula- tion Master DMX Master no DMX Slave Effect 1 Effect 2 Effect 3 Standalone Effect 4 Effect 5 Fixed colors Color macro White presets Manual colors Reserved Reset all channel controlled PROLIGHTS - Smart BatPlusNeo...
Page 31 [SENSOR ERROR] Sensor damaged (open or in short circuit) This error message indicates that an overheating on the [LED TEMPERATURE HIGH] lamp has occurred and the lamp has been switched OFF by the product protection system. PROLIGHTS - Smart BatPlusNeo...
Page 32 18H (H) RGBW The following graph presents a detailed analysis of the performance of different SmartBat PlusNeo operating modes, highlighting how each mode behaves over time in terms of light intensity. The 3H mode represents the peak performance, delivering maximum light intensity (100%) for three complete hours.
Page 33 15 - ACCESSORIES INSTALLATION LENSES (CODE SBPNEOL20/35/60 - OPTIONAL) Place fixture on a stable surface. • Remove the 4 screws and remove the top hat by the onboard handle Fig. 05 PROLIGHTS - Smart BatPlusNeo...
Page 34 • Unscrew the lenses holder screws and remove the lens holder. Fig. 06 PROLIGHTS - Smart BatPlusNeo...
Page 35 • Gently replace each lens as shown in figure Fig. 07 PROLIGHTS - Smart BatPlusNeo...
Page 36 SNOOT / FILTER (CODE SBPNEOSNOOT - SBPNEOFILT20/40/60/1060/3060 - OPTIONAL) FILTER SNOOT • Just place the accessory on the top of the projector, it will be fixed by included magnets NOTE: The snoot can be placed also on top of the filter. Fig. 08 PROLIGHTS - Smart BatPlusNeo...
Page 37 NOTE: IPTBM6ADP M6 adapter is required. Connect the air hose to the IPTESTBOX by inserting the quick-connect fitting into the coupler. For the operating procedure using the instrument, refer to the IPTESTBOX user manual. Fig. 09 PROLIGHTS - Smart BatPlusNeo...
Page 38 IP grade of the fixture. • All other service operations on the product must be carried out by PROLIGHTS, its approved service agents or trained and qualified personnel.
Page 39 • Check if the Fuse is intact and eventually replace it if fault. necessary. • Contact the PROLIGHTS Service or authorized service partner. Do not remove parts and/or covers, or carry out any repairs or service that are not described in...
Page 40 Note...
Page 41 Note...
Page 42 Note...
Page 44 PROLIGHTS is a trademark of prolights.it Via A.Olivetti snc MUSIC & LIGHTS S.r.l. support@prolights.it 04026 - Minturno (LT) ITALY musiclights.it Tel: +39 0771 72190...
