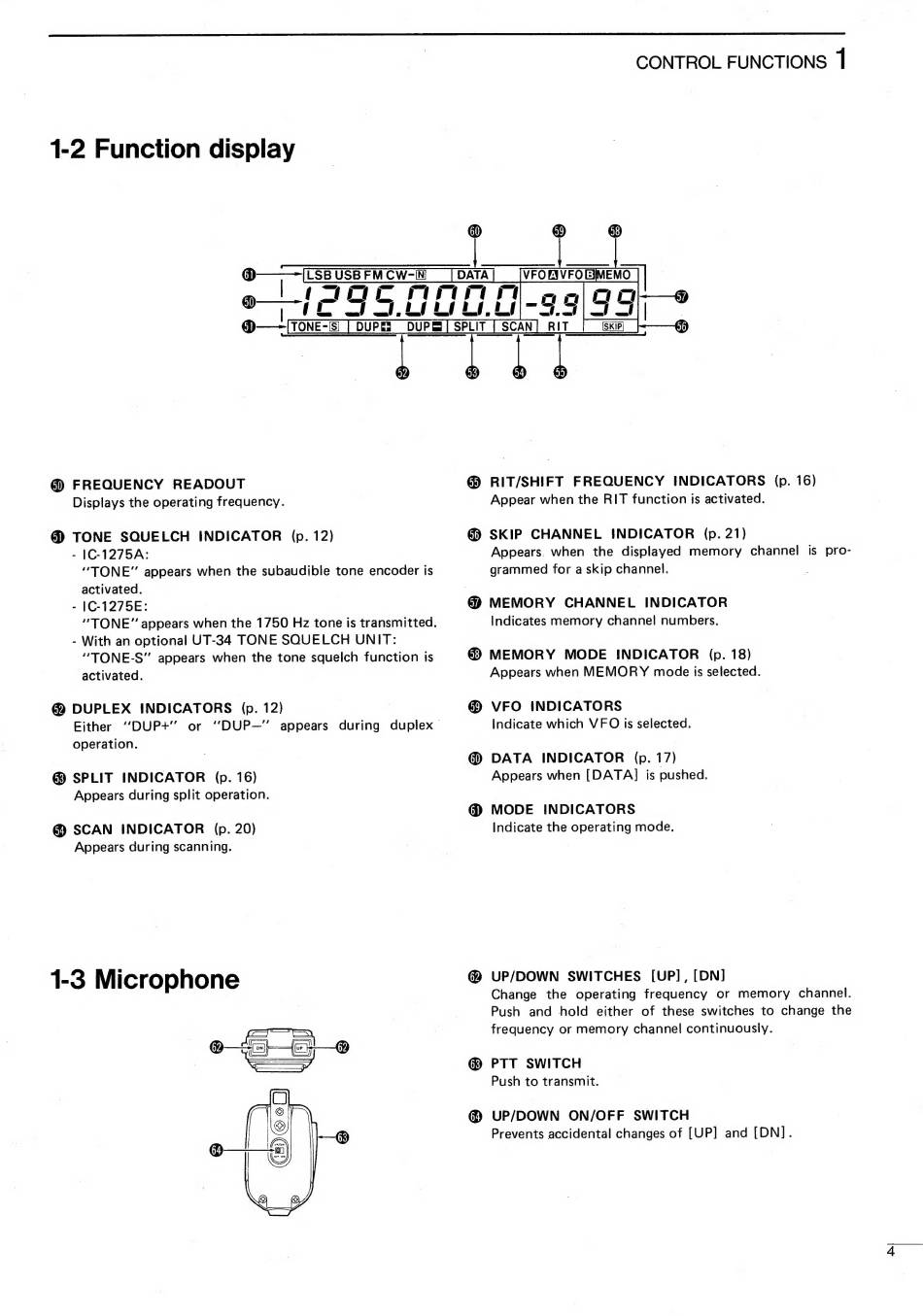

1-2 Function display
@ FREQUENCY READOUT
Displays the operating frequency.
@ TONE SQUELCH INDICATOR (p. 12)
- 1C-1275A:
"TONE" appears when the subaudible tone encoder is
activated.
- 1C-1275E:
"TONE" appears when the 1750 Hz tone is transmitted.
- With an optional UT-34 TONE SQUELCH UNIT:
'""TONE-S" appears when the tone squelch function is
activated.
@ DUPLEX INDICATORS (p. 12)
Either "DUP-*" or "DUP-" appears during duplex
operation.
Ф SPLIT INDICATOR (р. 16)
Appears during split operation.
@ SCAN INDICATOR (p. 20)
Appears during scanning.
1-3 Microphone
$—6s—E:—0
CONTROL FUNCTIONS 1
® RIT/SHIFT FREQUENCY INDICATORS (p. 16)
Appear when the RIT function is activated.
Ф SKIP CHANNEL INDICATOR (р. 21)
Appears. when the displayed memory channel is pro-
grammed for a skip channel.
@ MEMORY CHANNEL INDICATOR
Indicates memory channel numbers.
€ MEMORY MODE INDICATOR (p. 18)
Appears when MEMOR Y mode is selected.
@ VFO INDICATORS
Indicate which VFO is selected.
@ DATA INDICATOR (p. 17)
Appears when [DATA] is pushed.
@ MODE INDICATORS
Indicate the operating mode.
(D UP/DOWN SWITCHES [UP], [DN]
Change the operating frequency or memory channel.
Push and hold either of these switches to change the
frequency or memory channel continuously.
@ PTT SWITCH
Push to transmit.
@ UP/DOWN ON/OFF SWITCH
Prevents accidental changes of [UP] and [DN].
