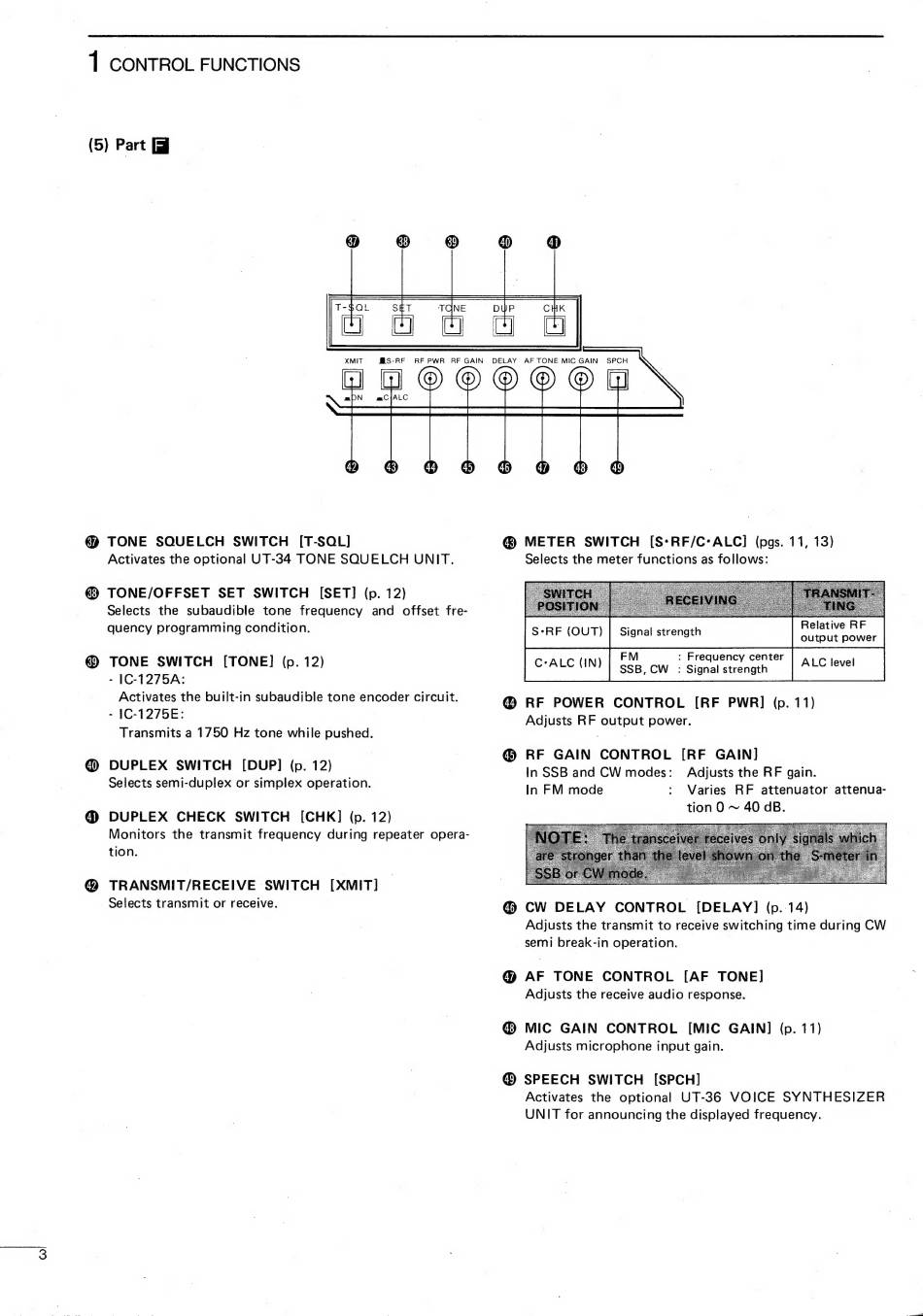

1 CONTROL FUNCTIONS
(5) Part
@ TONE SQUELCH SWITCH [T-SQL]
Activates the optional UT-34 TONE SQUELCH UNIT.
Ф TONE/OFFSET SET SWITCH [SET] (р. 12)
Selects the subaudible tone frequency and offset fre-
quency programming condition.
@ TONE SWITCH [TONE] (p. 12)
- |C-1275A:
Activates the built-in subaudible tone encoder circuit.
- |C-1275E:
Transmits a 1750 Hz tone while pushed.
@ DUPLEX SWITCH [DUP] (p. 12)
Selects semi-duplex or simplex operation.
@ DUPLEX CHECK SWITCH [СНК] (p. 12)
Monitors the transmit frequency during repeater opera-
tion.
(D TRANSMIT/RECEIVE SWITCH [XMIT]
Selects transmit or receive.
(B METER SWITCH [S:RF/C-ALC] (pgs. 11, 13)
Selects the meter functions as follows:
Kum
i Relative RF
S*RF (OUT) | Signal strength ие power
2 FM : Frequency center
C*ALC (IN) | SSB, CW : Signal strength ALC level
@ RF POWER CONTROL [RF PWR] (p. 11)
Adjusts RF output power.
@ RF GAIN CONTROL [RF GAIN]
In SSB and CW modes: Adjusts the RF gain.
In FM mode Varies RF attenuator attenua-
tion 0 ~ 40 dB.
@ CW DELAY CONTROL [DELAY] (p. 14)
Adjusts the transmit to receive switching time during CW
semi break-in operation.
@ AF TONE CONTROL [AF TONE]
Adjusts the receive audio response.
@ MIC GAIN CONTROL [MIC GAIN] (p. 11)
Adjusts microphone input gain.
@ SPEECH SWITCH [SPCH]
Activates the optional UT-36 VOICE SYNTHESIZER
UNIT for announcing the displayed frequency.
