23
9

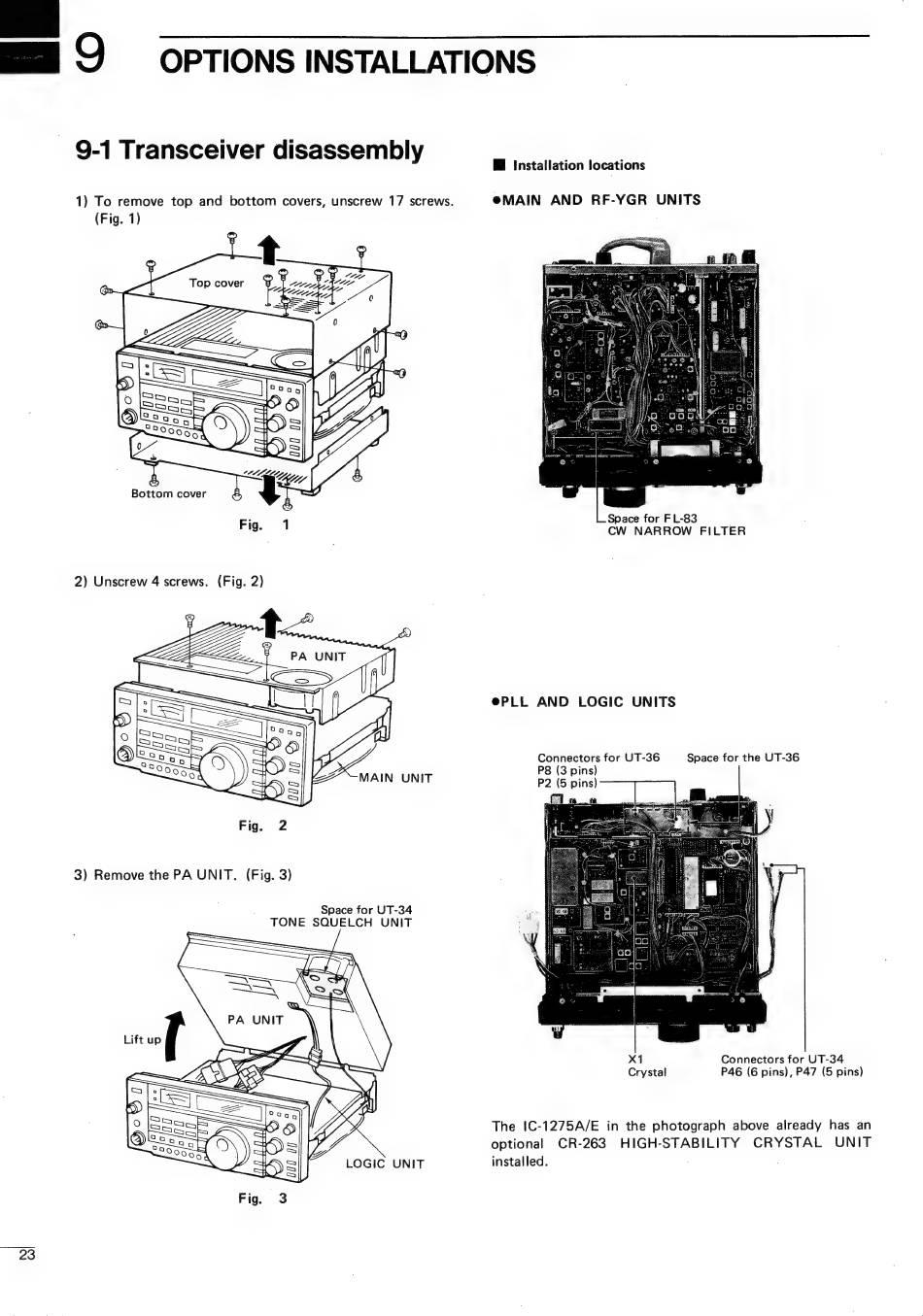

9-1 Transceiver disassembly
1) To remove top and bottom covers, unscrew 17 screws.
(Fig. 1)
MAIN UNIT
3) Remove the PA UNIT. (Fig. 3)
Space for UT-34
TONE SQUELCH UNIT
LOGIC UNIT
OPTIONS INSTALLATIONS
Ш installation locations
eMAIN AND RF-YGR UNITS
Space for FL-83 |
CW NARROW FILTER
ePLL AND LOGIC UNITS
Connectors for UT-36
P8 (3 pins)
P2 (5 pins)
Space for the UT-36
X1 Connectors for UT-34
Crystal P46 (6 pins), P47 (5 pins)
The 1C-1275A/E in the photograph above already has an
optional CR-263 HIGH-STABILITY CRYSTAL UNIT
installed.
