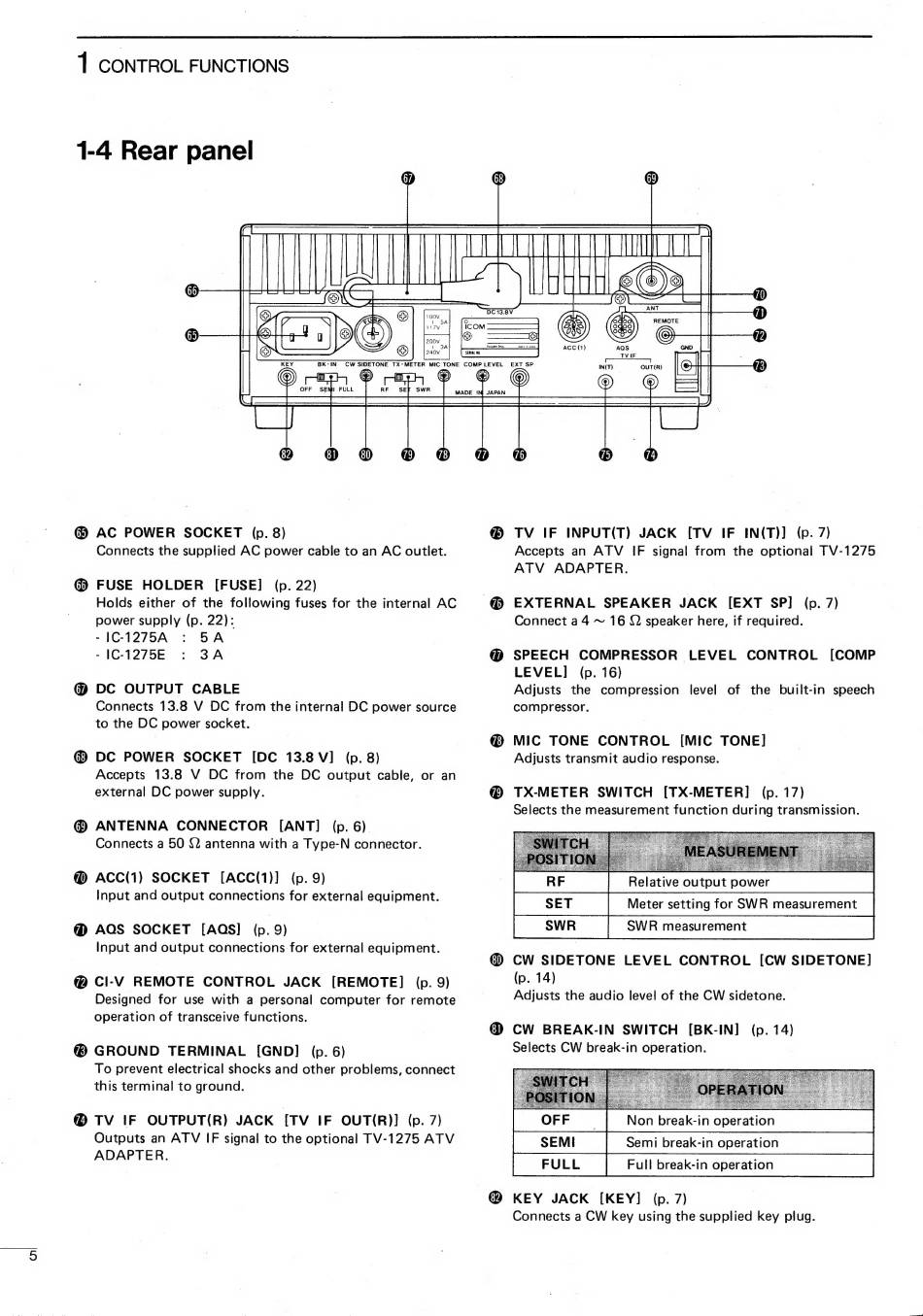

1 coNTROL FUNCTIONS
1-4 Rear panel
a $$ M— — M —— HN
III | | f Ii [|| ОЦ
LA "ТП Ө
QS ( © )) &
Ф = Se Acc epe is В L E I IOLE
AT 3 © [== aS race |
© TSt HY) „| сы] 2 : T
Ф AC POWER SOCKET (р. 8)
Connects the supplied AC power cable to an AC outlet.
@ FUSE HOLDER [FUSE] (p. 22)
Holds either of the following fuses for the internal AC
power supply (p. 22):
- |C-1275A 5A
- IC-1275E 3A
@ DC OUTPUT CABLE
Connects 13.8 V DC from the internal DC power source
to the DC power socket.
Ф DC POWER SOCKET [DC 13.8 V] (р. 8)
Accepts 13.8 V DC from the DC output cable, or an
external DC power supply.
@ ANTENNA CONNECTOR [АМТ] (p. 6)
Connects a 50 О antenna with a Type-N connector.
@ ACC(1) SOCKET [АСС(1)] (p. 9)
Input and output connections for external equipment.
@ AQS SOCKET [AQS] (p. 9)
Input and output connections for external equipment.
(p CI-V REMOTE CONTROL JACK [REMOTE] (p. 9)
Designed for use with a personal computer for remote
operation of transceive functions.
( GROUND TERMINAL [GND] (p. 6)
To prevent electrical shocks and other problems, connect
this terminal to ground.
@ TV IF OUTPUT(R) JACK [TV IF OUT(R)] (p. 7)
Outputs an ATV IF signal to the optional TV-1275 ATV
ADAPTER.
(p TV IF INPUT(T) JACK [TV IF IN(T)] (p. 7)
Accepts an ATV IF signal from the optional TV-1275
ATV ADAPTER.
Ф EXTERNAL SPEAKER JACK [EXT SP] (p. 7)
Connect a 4 ~ 16 Q speaker here, if required.
@ SPEECH COMPRESSOR LEVEL CONTROL [COMP
LEVEL] (p. 16)
Adjusts the compression level of the built-in speech
compressor.
@ MIC TONE CONTROL [MIC TONE]
Adjusts transmit audio response.
© TX-METER SWITCH [TX-METER] (p. 17)
Selects the measurement function during transmission.
А
Relative output power
Meter setting for SWR measurement
SWR measurement
@ CW SIDETONE LEVEL CONTROL [CW SIDETONE]
(p. 14)
Adjusts the audio level of the CW sidetone.
@ CW BREAK-IN SWITCH [BK-IN] (p. 14)
Selects CW break-in operation.
| ОРЕ | Non break-in operation
| SEM | Semi break-in operation
FULL Full break-in operation
@ KEY JACK [KEY] (p. 7)
Connects a CW key using the supplied key plug.
