Interconnections; Rear Panel Connections - Icom IC-1275A Instruction Manual

3

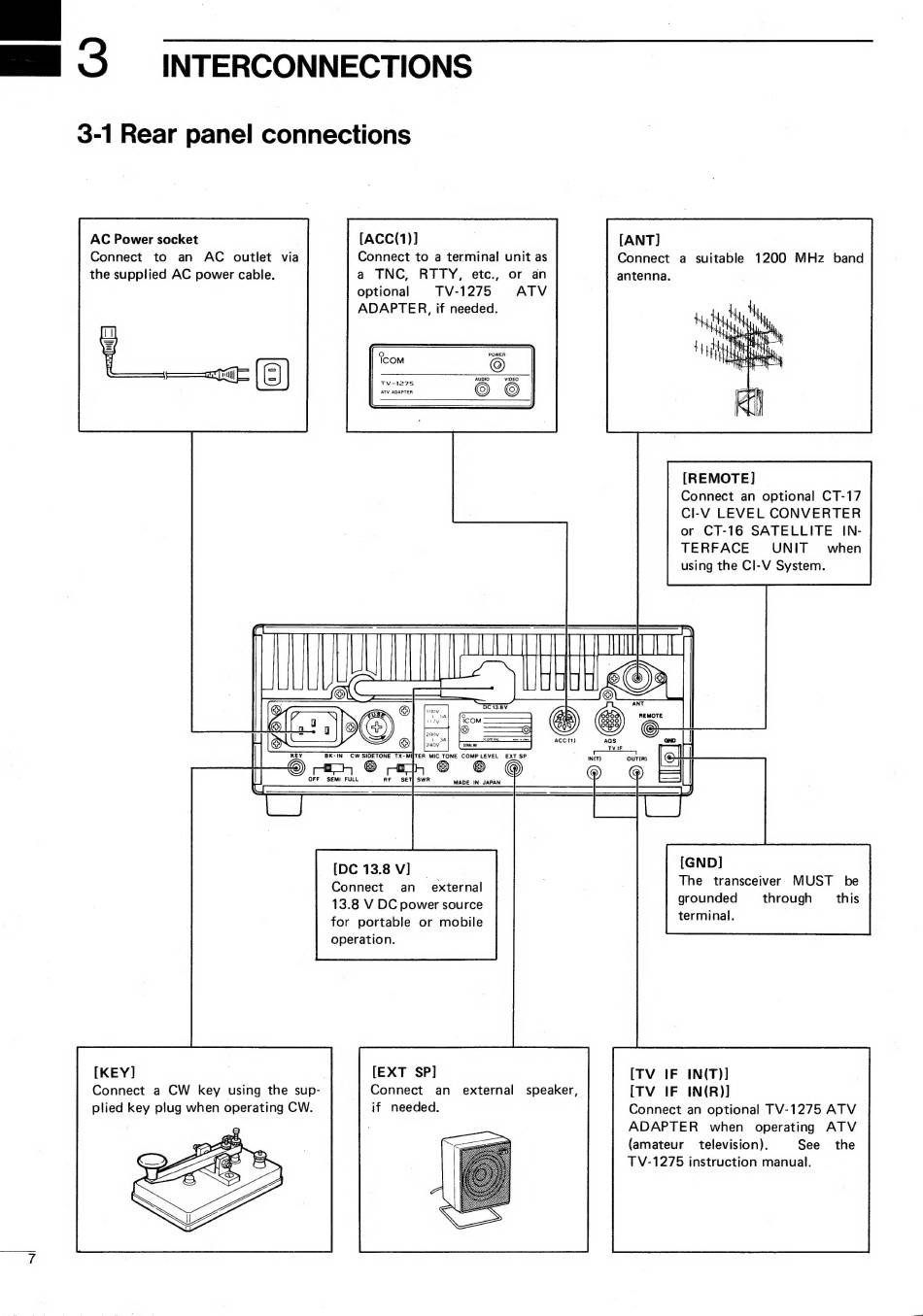

3-1 Rear panel connections
INTERCONNECTIONS
AC Power socket [ACC(1)]
Connect to an AC outlet via
the supplied AC power cable.
optional TV-1275
ADAPTER, if needed.
[e
ICOM
Connect to a terminal unit as
a TNC, RTTY, etc., or an
ATV
POWER
AUDIO
al
ЕЎ
TV-1275
ATV ADAPTER
[ANT]
Connect a suitable 1200 MHz band
antenna.
[REMOTE]
Connect an optional CT-17
CI-V LEVEL CONVERTER
or CT-16 SATELLITE IN-
TERFACE UNIT when
using the CI-V System.
a
eff S
G
АЕ
fe П
[DC 13.8 V] |
Connect an external
13.8 V DC power source
for portable or mobile
operation.
[KEY] [EXT SP]
Connect a CW key using the sup-
plied key plug when operating CW. if needed.
DC13.8V
© 240V
g |
| KEY ВК-1М CW SIDETONE TX-MHTER MIC TONE COMP LEVEL EXT SP
| | (9) гш ген
| OFF SEMI FULL RF SET| SWR MADE IN JAPAN
Connect an external
НИ ТО
(27
The transceiver MUST be
grounded through this
terminal.
[TV IF IN(T)]
[TV IF IN(R)]
Connect an optional TV-1275 ATV
ADAPTER when operating ATV
speaker,
(amateur television). See the
T V-1275 instruction manual.
