Johnson Controls YORK PYT 0330 Instruction Manual page 30

Chillers with liquid-cooled variable speed drives and starters
Hide thumbs Also See for YORK PYT 0330:

Advertisement

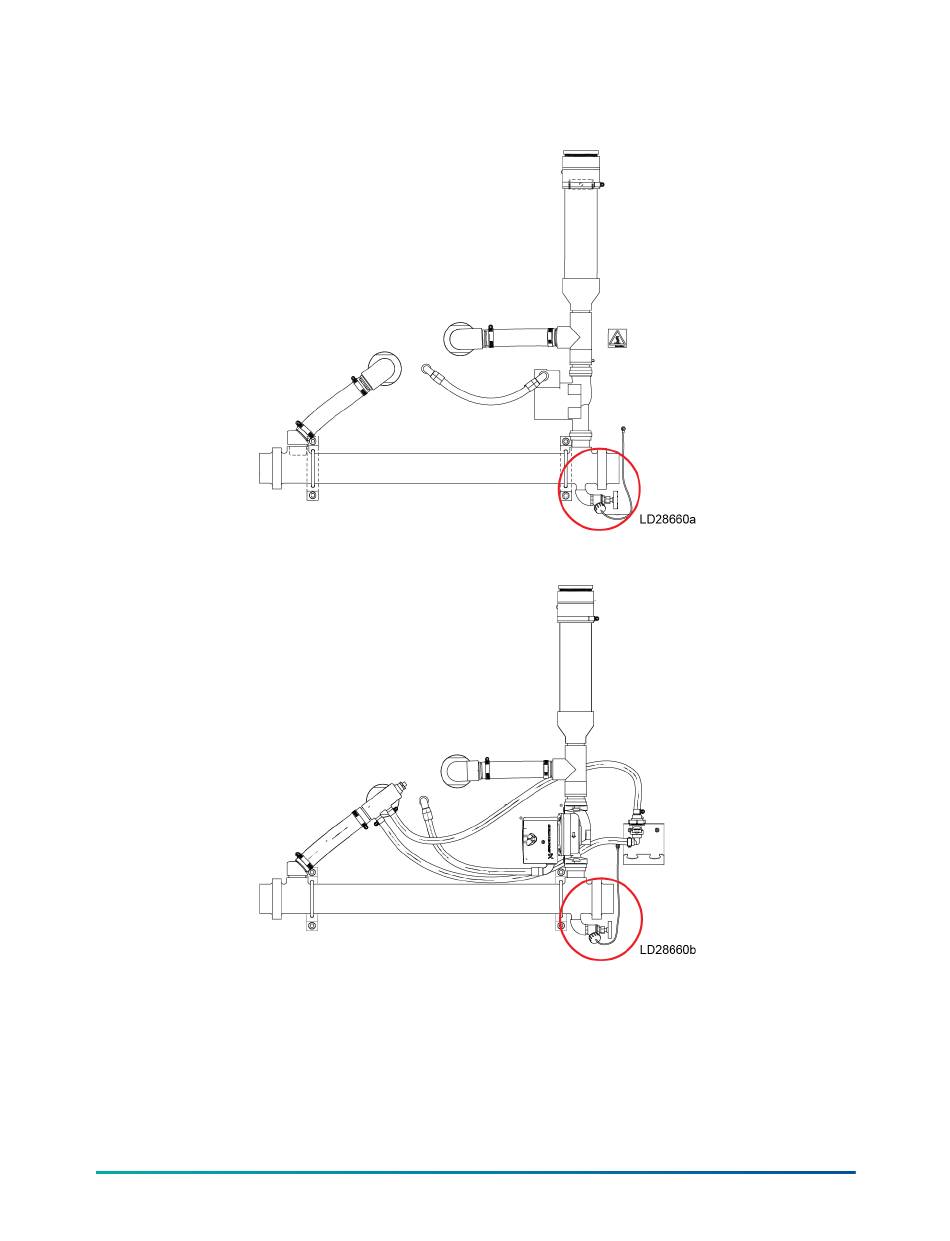

External piping components for all HYP model drives
Figure 20: HYP0490 Mod A drive external piping
Figure 21: HYP0490 Mod B drive external piping
30
Chillers with YORK Liquid-Cooled Variable Speed Drives and Starters
© 2025 Johnson Controls. All rights reserved.
