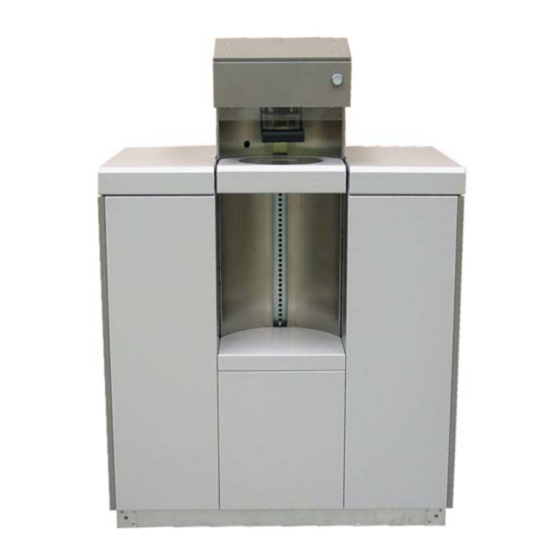

- Page 1 TATOCOLOR Automatic Dispenser User’s manual 4063153 [5G] V1.0R0 (10/2024)
-
Page 2: Copyright
COROB is a registered trademark and/or commercial trademark used on an exclusive basis by COROB S.p.A. and its affiliated companies (hereinafter “COROB”). A failure of a trademark to appear hereunder does not mean that COROB does not use the trademark in question nor does it constitute a waiver by COROB of any related intellectual property rights. -
Page 3: Quick Guide
At the end of the working day • Refill the canisters. • Update the canister filling levels in the management software. • Shut down the computer. Do not shut off the machine. It is recommended to carefully read the user’s manual. - 3 - TATOCOLOR [5G]... -
Page 4: Table Of Contents
Products to be used ............................30 External cleaning ..............................31 Cleaning the nozzle center (Autocap) ........................31 Cleaning and moistening the sponge (humidifier cap) ..................32 TECHNICAL DATA ..........................33 Technical data ..............................33 8.2 Dimensions and weight ............................34 Declaration of conformity ..........................35 Warranty................................38 - 4 - TATOCOLOR [5G]... -
Page 5: General Information
The manual could be available in paper (inserted in the product packing)or in digital format accessible from COROB website. It is possible to ask the manufacturer a paper copy of the manual. -
Page 6: Features
2. Off-line button. 3. Upper covers. 4. Canister filling area. The dispenser is managed by the computer. The manufacturer can also supply a wide range of software applications to manage all of the machine’s functions. - 6 - TATOCOLOR [5G]... -
Page 7: Description Of Units
Bung Hole Locator (B.H.L.) This is a system that emits laser beams that allow the positioning of pre-punched cans, so that the hole is in line with the center of the dispensing nozzles. - 7 - TATOCOLOR [5G]... -
Page 8: Usable Cans
When the cap is open, the system confirms the can presence to begin dispensing. 2.3 Usable cans Nozzle humidifier cap 340 mm [13.3”] Manual rotating cap 505 mm [19.9”] 75 mm [3”] 61 mm [2.40”] 340 mm [13.3”] 230 mm [9”] - 8 - TATOCOLOR [5G]... -
Page 9: Intended Use And Reasonably Foreseeable Misuse
The machine has an identification plate (chapter 3.4) indicating: 1. Manufacturer’s name. 2. Marking. 3. Machine model. 4. Month and year of manufacture. 5. Serial number. 6. Electrical specifications. NOTE Do not remove or tamper with the identification plate in any way. - 9 - TATOCOLOR [5G]... -
Page 10: Safety
• Do not stare the light source of the Laser Bung Hole Locator (Class II laser product). • If the machine catches fire, never use water. Use only dry powder or carbon dioxide fire extinguishers, and strictly follow the instructions and warnings indicated by the manufacturer and listed on the extinguisher. - 10 - TATOCOLOR [5G]... -
Page 11: Warning On The Use Of Products
5. In case of accidental product leaks or spills, thoroughly ventilate the area and proceed as indicated in this manual and in the instructions provided with the product itself. 6. Do not dispose of colorant in the sewage system. Follow local regulations when disposing of waste. - 11 - TATOCOLOR [5G]... -
Page 12: Residual Risks
Risk of poisoning and sensitization - Fumes generated by the colorants used may cause Keep the room suitably ventilated. poisoning and/or sensitization during canister refilling operations, machine cleaning and disposal. Personal Protective Equipment as specified in MSDS. - 12 - TATOCOLOR [5G]... -
Page 13: Position Of Labels
Q UI ER CU AL X X X DE R . OR PR OD X X X CO DE LA SE DO NOT R RA RE INTO SS II 1 mW ER PRO 630- 6082 5-1: 2003 - 13 - TATOCOLOR [5G]... -
Page 14: Emergency Situations
3 required. No type of parts must be leant against or stocked close to the machine. Avoid naked flames or material that may create sparks and cause a fire. It is forbidden to smoke in the machine nearby area. - 14 - TATOCOLOR [5G]... -
Page 15: Shipping And Handling
To move the machine without external cardboard, but still fixed to the pallet, use suitable lifting equipment. Fork the pallet in such a way as to distribute the weight equally on the forks and thus prevent the machine from tipping over. - 15 - TATOCOLOR [5G]... - Page 16 6. Lower the feet to support and level the machine properly, and make sure that the wheels are not resting. To repack the machine, follow the unpacking instructions in reverse order. We recommend reusing the original packing any time the machine must be moved or shipped. - 16 - TATOCOLOR [5G]...
- Page 17 14 mm - 17 - TATOCOLOR [5G]...
-
Page 18: Standard Material Supplied
For the colorants remaining in the canisters, for the machine components most soiled with product and if any products have been used on the machine that require special disposal procedures, follow local regulations when disposing of waste. - 18 - TATOCOLOR [5G]... -
Page 19: Start-Up
The dispenser is managed by the computer. The manufacturer can also supply a wide range of software applications to manage all of the machine’s functions. The complete installation of the machine, including computer connection, management software installation and system configuration, must be carried out by a specialized maintenance technician. - 19 - TATOCOLOR [5G]... -
Page 20: Control Devices And Connections
5. USB serial port - For the connection to the management computer. 6. Off-line button with ON lamp - To interrupt machine functions, without shutting it off. The ON lamp indicates that the machine is powered. - 20 - TATOCOLOR [5G]... -
Page 21: Off-Line Button With Integrated On Lamp
Pressing the off-line button while a formula is being dispensed will cause dispensing to be interrupted. The interrupted formula recovery function, i.e. the ability to resume dispensing the quantity necessary to complete the formula, is enabled only if the firmware and the dispensing program support this function. - 21 - TATOCOLOR [5G]... -
Page 22: Electrical Connection And Start-Up
When the software is launched it offers the operator a series of procedure requests that have the purpose to get the machine ready for use. These procedures are strictly related to the type of management software used. - 22 - TATOCOLOR [5G]... -
Page 23: Shut-Down
Should it be essential to shut down the machine, avoid keeping it off for extended periods of time. When the machine is not being used, if necessary shut off only the computer. AVVISO La potenza assorbita dalla macchina accesa, durante la sua inattività o durante un ciclo di agitazione, è molto bassa. - 23 - TATOCOLOR [5G]... -
Page 24: Using The Dispenser
Load the can in the machine and adjust the height of the can ch. 6.3.1 shelf. Via the software, enter the formula dispensing command. ch. 6.3.3 When dispensing is finished, remove the can and proceed with another dispensing process. - 24 - TATOCOLOR [5G]... -
Page 25: Loading The Can - Manual Shelf
1. After having correctly positioned the can on the shelf, the laser beams will switch on. 2. Position the can in such a way that the hole on the lid is in the center of the laser beams. - 25 - TATOCOLOR [5G]... -
Page 26: Dispensing
Colorant spills cause the circuit pumping unit to be blocked. 5. Close the canister with its corresponding lid. 6. Bring the machine back to the on-line condition using the off-line button (chapter 5.4). 7. Repeat the above steps to fill other canisters. - 26 - TATOCOLOR [5G]... - Page 27 After topping up the colorant, it is advisable to carry out the stirring process using the functions provided in the management software, to eliminate any air that may be emulsified and incorporated into the colorant. - 27 - TATOCOLOR [5G]...
- Page 28 MAX - 3 l 3.17 qt 2.3 l 2.43 qt 1.4 l 1.48 qt 0.5 l 0.53 qt - 28 - TATOCOLOR [5G]...
-
Page 29: Troubleshooting
Incorrect base paint selected or formulation error Check the can chosen and the selections made in the program. in dispensing software. Low colorant level in canister. Fill canister with colorant using the specific software function. - 29 - TATOCOLOR [5G]... -
Page 30: Ordinary Maintenance
Should growths form in the cap, in the sponges or in the humidifier water bottle, it is advisable to use the following fluids: • Propylene glycol solution, 50% by volume, in water; • AgCl solution in water; • Bleach (dilution 1%). - 30 - TATOCOLOR [5G]... -
Page 31: External Cleaning
3. Accurately clean the nozzles using a sharp tool; remove any dried colorant residue delicately, to avoid damaging the ends of the circuits. 4. Connect power supply and switch on the machine (chapter 5.5). 5. Close the humidifier cap. 6. Carry out purge using the command in the management software. - 31 - TATOCOLOR [5G]... -
Page 32: Cleaning And Moistening The Sponge (Humidifier Cap)
If it is very dirty, remove the sponge from the cap and wash it thoroughly. If the sponge is severely damaged, replace it. Open the cap with your hand and screw back the sponge holding lid. Connect power supply and switch on the machine (chapter 5.5). - 32 - TATOCOLOR [5G]... -
Page 33: Technical Data
Type of colorants Decorative and industrial: water, universal and solvent. Type of valves COROB 3-way electric valve (with recirculation) Canister stirring Pre-set (a) Excluding connected auxiliary devices (machine without optional auxiliary sockets). The power information is purely indicative, and depends strictly on the machine configuration. -
Page 34: Dimensions And Weight
Figures are purely indicative; they depend on the configuration of the machine and are referred to the machine with empty canisters and without accessories. 600 mm [23.6 inch] 351 mm [14 inch] 300 mm [118 inch] 334 mm [13.1 inch] 950 mm [37.4 inch] 205 kg 452 lb 238 kg 525 lb - 34 - TATOCOLOR [5G]... -
Page 35: Declaration Of Conformity
EN ISO 9001:2015 about quality management systems. [Name and Surname of Special Proxy Holder in charge] COROB S.p.A. San Felice sul Panaro, DD/MM/YYYY 1 / 2 | CE IT DSP 01_2025 - 35 - TATOCOLOR [5G]... - Page 36 Elektromanyetik Uyumluluk Direktifi - 2015/863/EU tarafından değiştirilen 2011/65/EU sayılı Direktif - WEEE 2012/19/EU Direktifi. Bundan başka, makinenin tasarım ve ilgili üretimi, kalite yönetim sistemlerine ilişkin EN ISO 9001:2015 standardına uygun kesin işletme prosedürlerinin izlenmesi yoluyla gerçekleştirilmesi ve belgelendirilmesi sağlanır. 2 / 2 | CE IT DSP 01_2025 - 36 - TATOCOLOR [5G]...
- Page 37 • The Waste Electric and Electronic Equipment (WEEE) Regulations 2013 [Name and Surname of Special Proxy Holder in charge] COROB S.p.A. San Felice sul Panaro, DD/MM/YYYY 1 / 1 | UK DOC IT DSP_02 01_2025 - 37 - TATOCOLOR [5G]...
-
Page 38: Warranty
• Failure to observe the instructions and maintenance rules set forth in the manual. • Making or having changes and/or repairs made on the machine by personnel outside the service organization authorized by the manufacturer and/or made using non-original spare parts. - 38 - TATOCOLOR [5G]...
