Key switches
Key switches
Surface-mounted housings
Ref.-no.: 804.18 W, 806.18 W, 833.18 W, 834.18 W
Operating instructions
1 Safety instructions
Electrical devices may only be installed and connected by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow the instructions in full.
These instructions are an integral part of the product, and must remain with the end customer.
2 Device components
1
(1) Housing
(2) Insert
(3) Profile half cylinder
(4) Centre plate
3 Function
Intended use
- for profile half cylinder with approx. 40 mm overall length (DIN 18252), e.g. art. no.: 28, 28 G1
Designs
Blind reversing switch, 1-pole (1 motor)
804.18 W
Blind reversing push-button, 1-pole (1 motor)
834.18 W
Push-button (2-way), 1-pole
833.18 W,
Universal-off 2-way switch, 1-pole
806.18 W
4 Information for electrically skilled persons
Mounting and electrical connection
DANGER
Electrical shock on contact with live parts in the installation environment.
Electrical shocks can be fatal.
Before working on the device, disconnect the power and cover live parts in the area!
Connecting surface-mounted housing
Feed the cable through the opening in the housing.
For this, use the included sealing gaskets.
Connect the key switch acc. to the connection diagram. (fig. 5 to fig 7)
0024006900
2
3

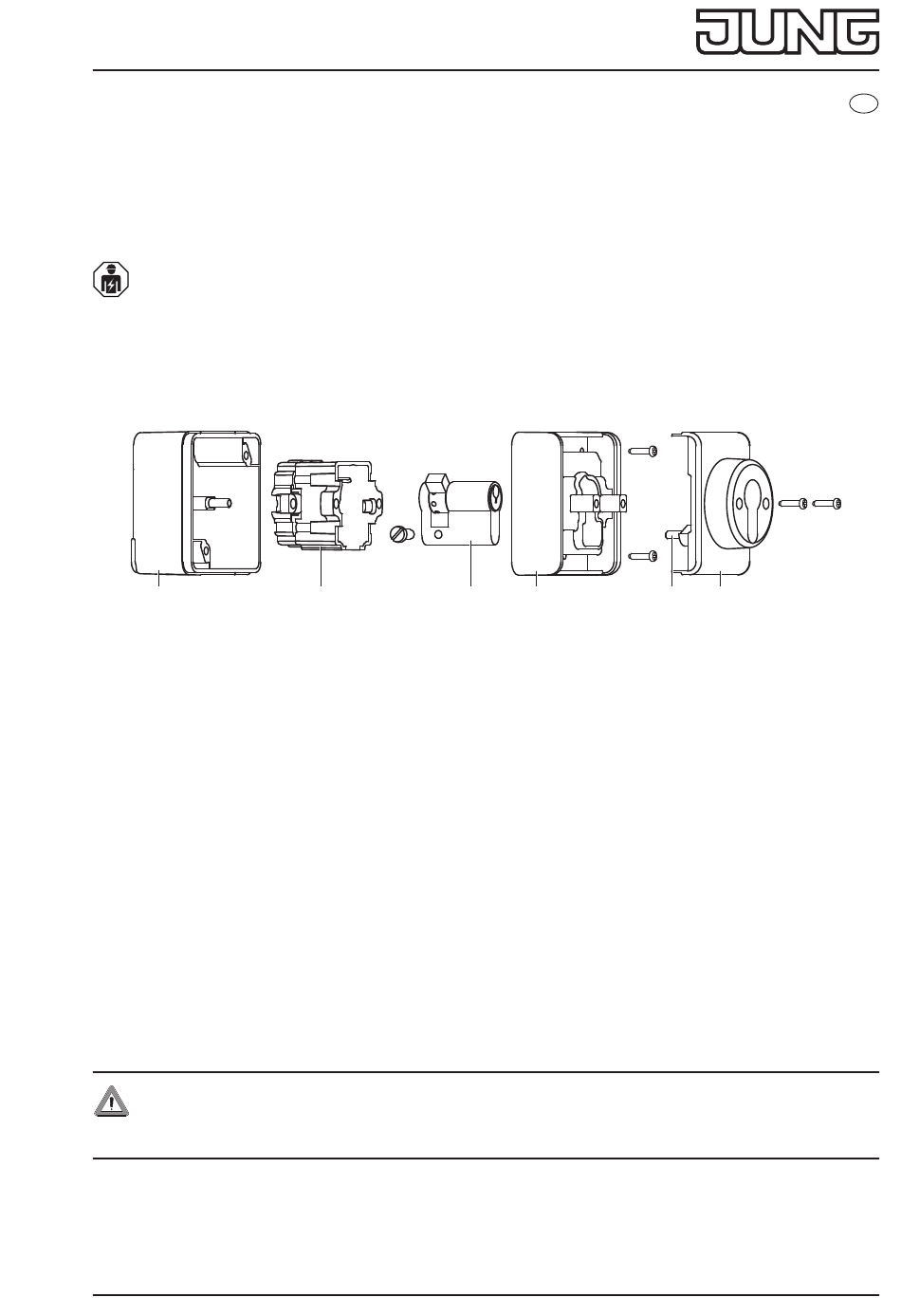

Fig. 1: Device components
1 / 3
4
5
GB
4
21.11.2024
