Operating instructions
JUNG HOME push-button 1-gang
Art. no. BT..17101..

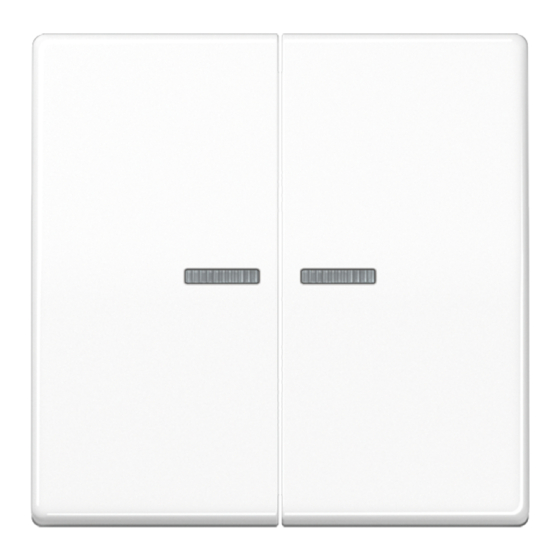

JUNG HOME push-button 2-gang
Art. no. BT..17102..
ALBRECHT JUNG GMBH & CO. KG
Volmestraße 1
58579 Schalksmühle
GERMANY
Telefon: +49 2355 806-0
Telefax: +49 2355 806-204
kundencenter@jung.de
24.02.2023
32405203 J0082405203
www.jung.de
Advertisement
Table of Contents
Related Manuals for Jung HOME
Summary of Contents for Jung HOME
- Page 1 Operating instructions JUNG HOME push-button 1-gang Art. no. BT..17101.. JUNG HOME push-button 2-gang Art. no. BT..17102.. ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle GERMANY Telefon: +49 2355 806-0 Telefax: +49 2355 806-204 kundencenter@jung.de 24.02.2023 32405203 J0082405203 www.jung.de...
-
Page 2: Table Of Contents
JUNG HOME push-button 1-gang, JUNG HOME push-button 2-gang Table of Contents Safety instructions ...................... 3 Device components...................... 3 Intended use ........................ 4 Product characteristics ...................... 4 Operation .......................... 7 Operation via extensions .................. 8 Mounting and electrical connection ................... 9 Commissioning via app .................... 10 Resetting the device to the factory setting .............. 11 Technical data ......................... 12... -
Page 3: Safety Instructions
The device must not be used for applications from the area of safety engineering, such as emergency stop, emergency call, smoke extraction. Read the instructions in full, observe them and keep them for future reference. You can find more information on JUNG HOME at www.jung.de/JUNGHOME Device components Image 1: JUNG HOME push-button 1-gang... -
Page 4: Intended Use
Wireless connection to devices from the JUNG HOME system – Operation with system insert for dimming, switching, Venetian blind or 3-wire extension Product characteristics – Commissioning and operation using JUNG HOME app on mobile end device (smartphone or tablet) via Bluetooth 32405203 4 / 26 24.02.2023 J0082405203... - Page 5 Operation of top, bottom and full surface with up to two linked functions per rocker – Using buttons to control areas (groups) or call up scenes – Using buttons to operate wirelessly linked JUNG HOME devices – Multi-colour status indication with optional night mode – Feedback of load status by status LED –...
- Page 6 If the device was not previously added to a Bluetooth Mesh network (project) by means of the JUNG HOME app, it will switch to pairing mode for two minutes after the mains voltage returns and the status LED will flash slowly at a regular interval in blue.
-
Page 7: Operation
Brief push-button action < 1 s < long push-button action Wireless operation Wireless operation is done with linked JUNG HOME devices or via the JUNG HOME App, which is also used to link the JUNG HOME devices (see 'Commissioning via App'). -
Page 8: Operation Via Extensions
JUNG HOME push-button 1-gang, JUNG HOME push-button 2-gang Operation via extensions Precondition: A push-button, an Satellite insert 2-wire with an LB Management push-button 1-gang or an Satellite insert 3-wire, power supply with an LB Management push-button 1- gang or LB management motion detector is connected. Multiple extensions can be combined with each other. -
Page 9: Mounting And Electrical Connection
– If JUNG HOME devices are installed on both sides of a solid wall, they should be positioned as close as possible to each other on the opposite sides of the wall. -
Page 10: Commissioning Via App
The parameter settings and app and network connections are retained. Commissioning via app Prerequisite: The JUNG HOME device does not yet belong to a Bluetooth Mesh net- work. Otherwise reset the device to the default setting. If a Bluetooth Mesh network (project) does not yet exist, a new project must first be created for the first JUNG HOME device in the JUNG HOME app. -
Page 11: Resetting The Device To The Factory Setting
If the device has already been added to a project with the JUNG HOME app, it can be reset also to the default setting in one step with the "Delete device"... -
Page 12: Technical Data
The status LED flashes red more slowly for approx. 5 seconds, the device has been reset to the default setting. After resetting the device to the default setting, it must be removed from the JUNG HOME app provided it has not already been deleted from the app. - Page 13 JUNG HOME push-button 1-gang, JUNG HOME push-button 2-gang Radio frequency 2.402 ... 2.480 GHz Transmission capacity max. 10 mW, Class 1.5 Transmission range (inside building) typ. 30 m This device includes an integrated battery. At the end of its useful life, dispose of the device together with the battery in accordance with the environmental regulations.
-
Page 14: List Of Functions And Parameters
JUNG HOME push-button 1-gang, JUNG HOME push-button 2-gang List of functions and parameters The JUNG HOME app can be used to configure all functions of the JUNG HOME device and its behaviour in the Bluetooth Mesh project for the respective individual purposes. - Page 15 JUNG HOME push-button 1-gang, JUNG HOME push-button 2-gang Parameters Setting options, Explanations Default setting Operating lock** No lock, factory reset Factory reset block: prevents resetting on block, operating block the device and hence the removal from a project and pairing again by unauthorised Default setting: no lock persons.
- Page 16 JUNG HOME push-button 1-gang, JUNG HOME push-button 2-gang Parameters Setting options, Explanations Default setting Astro timer** 0 (off) ... 120 minutes Astro times represent the sunrise and time shift before or after sunrise sunset times in the course of a calendar and sunset year.
- Page 17 JUNG HOME push-button 1-gang, JUNG HOME push-button 2-gang Parameters Setting options, Explanations Default setting Switch-off delay 0 s (off) ... 240 min Switches off the load after a switch-off command, delayed by the value. Re- Default setting: off peated switch-off commands during the current delay restart the delay time.
- Page 18 JUNG HOME push-button 1-gang, JUNG HOME push-button 2-gang Parameters Setting options, Explanations Default setting Presentation Off, on The presentation function is used in com- function bination with a linked JUNG HOME pres- Default setting: off ence detector. The presentation function can be switched on or off with the app or a linked JUNG HOME push-button.
- Page 19 JUNG HOME push-button 1-gang, JUNG HOME push-button 2-gang Parameters Setting options, Explanations Default setting Disabling func- Deactivated, continu- The disabling function switches the load tion (restraint ously ON, continuously output to the desired status and blocks it guidance)** OFF, for fixed time ON/...
- Page 20 JUNG HOME push-button 1-gang, JUNG HOME push-button 2-gang Parameters Setting options, Explanations Default setting Run-on time 0 s (off) ... 240 min Ensures that the load is switched off after (load) the set run-on time expires instead of re- Default setting: off maining permanently switched on after a switch-on command.
- Page 21 JUNG HOME push-button 1-gang, JUNG HOME push-button 2-gang Parameters Setting options, Explanations Default setting Presentation Off, on The presentation function is used in com- function bination with a linked JUNG HOME pres- Default setting: off ence detector. The presentation function can be switched on or off with the app or a linked JUNG HOME push-button.
- Page 22 JUNG HOME push-button 1-gang, JUNG HOME push-button 2-gang Parameters Setting options, Explanations Default setting Colour temper- 2000 ... 10000 K Defines the adjustable colour temperature ature range range. The minimum and maximum value Default setting: (min-max) (only depend on the colour temperature range 2,700 K ...
- Page 23 JUNG HOME push-button 1-gang, JUNG HOME push-button 2-gang Parameters Setting options, Explanations Default setting Night light func- 5 ... 100% Defines the reduced switch-on brightness tion brightness** to which the light is switched with the Default setting: 20% night function activated. The entry in per- cent applies to the maximum brightness of the dimming range.
- Page 24 JUNG HOME push-button 1-gang, JUNG HOME push-button 2-gang Parameters Setting options, Explanations Default setting Slat change- 300 ms ... 10 s Absolute time for changing-over Venetian over time blind slats. Here, the fabric-stretching Default setting: 1 s time can be set for the operation of awn- (Venetian blind), 0.3 s...
- Page 25 JUNG HOME push-button 1-gang, JUNG HOME push-button 2-gang Parameters Setting options, Explanations Default setting Position when 0 ... 100% Position of the Venetian blind, shutter or the mains awning after the mains voltage returns. voltage re- Note: Applies only if the "stored position"...
-
Page 26: Conformity
JUNG HOME push-button 1-gang, JUNG HOME push-button 2-gang Conformity Albrecht Jung GmbH & Co. KG hereby declares that the radio system type art. no. BT..17101.. and BT..17102.. meets the directive 2014/53/EU. You can find the full article number on the device. The complete text of the EU Declaration of Conformity is available under the Internet address: www.jung.de/ce...
