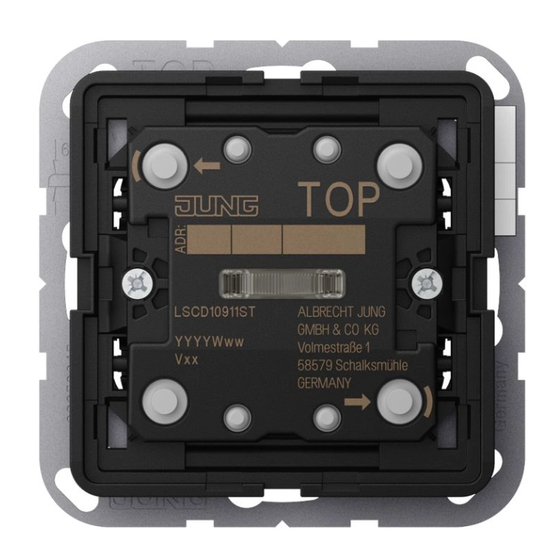

KNX push-button universal / KNX push-button standard / KNX push-button
extension
KNX push-button universal 1-gang
Art. no.: ..10911ST
KNX push-button universal 2-gang
Art. no.: ..10921ST
KNX push-button standard 1-gang
Art. no.: ..10711ST
Operating philosophy F10
KNX push-button standard 2-gang
www.jung.de
Art. no.: ..10721ST
KNX push-button extension 1-gang
Art. no.: ..10911TE
KNX push-button extension 2-gang
Art. no.: ..10921TE
Operating instructions
1
Safety instructions
Electrical devices may only be mounted and connected by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
These instructions are an integral part of the product, and must remain with the end customer.
82402103
19.02.2020
1 / 12
J0082402103
Advertisement
Related Manuals for Jung 10921ST
Summary of Contents for Jung 10921ST
- Page 1 KNX push-button universal / KNX push-button standard / KNX push-button extension KNX push-button universal 1-gang Art. no.: ..10911ST KNX push-button universal 2-gang Art. no.: ..10921ST KNX push-button standard 1-gang Art. no.: ..10711ST Operating philosophy F10 KNX push-button standard 2-gang www.jung.de Art.
-
Page 2: Device Components
KNX push-button universal / KNX push-button standard / KNX push-button extension Device components Figure 1: Device components 1-channel Figure 2: Device components 2-channel Design frame (accessories) Status LED Operating rockers (accessory) 82402103 19.02.2020 2 / 12 J0082402103... - Page 3 The device can be updated. Firmware can be easily updated with the Jung ETS Service App (additional software). The device is KNX Data Secure capable. KNX Data Secure offers protection against manipula- tion in building automation and can be configured in the ETS project.
-
Page 4: Energy Saving Mode
KNX push-button universal / KNX push-button standard / KNX push-button extension Energy saving mode The device optionally switches to the energy saving mode after a preset time or by an external telegram. In energy saving mode all LED functions are switched off. The device leaves the energy saving mode –... -
Page 5: Fitting And Electrical Connection
KNX push-button universal / KNX push-button standard / KNX push-button extension Information for electrically skilled persons DANGER! Mortal danger of electric shock. Cover up live parts in the installation environment. 6.1 Fitting and electrical connection Mounting and connecting the device (Figure 3) Figure 3: Fitting the device Design frame Operating rocker (top = narrow side) - Page 6 KNX push-button universal / KNX push-button standard / KNX push-button extension ￭ Attach device onto the supporting frame. ￭ Optional: Screw the device to the supporting frame. Tighten the plastic screws only lightly. ￭ Snap on rockers. The rockers suitable for the device must be ordered separately (see accessories). The device should be used in an air-tight appliance box.
- Page 7 KNX push-button universal / KNX push-button standard / KNX push-button extension Do not connect any external voltage. Figure 5: Connecting installation push-button 82402103 19.02.2020 7 / 12 J0082402103...
- Page 8 KNX push-button universal / KNX push-button standard / KNX push-button extension 6.2 Commissioning Preconditions in secure operation – A dedicated application program is required. – Secure commissioning is activated in the ETS. – Device certificate entered/scanned or added to the ETS project. A high resolution camera should be used to scan the QR code.
- Page 9 KNX push-button universal / KNX push-button standard / KNX push-button extension Deactivating safe-state mode ￭ Switch off bus voltage or carry out ETS programming. Master reset The master reset restores the basic device setting (physical address 15.15.255, firmware re- mains in place). The device must then be recommissioned with the ETS. During secure operation: A master reset deactivates device security.
- Page 10 KNX push-button universal / KNX push-button standard / KNX push-button extension 6.3 Dismantling Dismantling the operating rockers (Figure 7) The operating rockers can be dismantled using a dismantling wedge or a screwdriver (Figure 8). The recesses are intended for a blade width of up to 4 mm. Figure 7: Dismantling rocker from the side Figure 8: Dismantling rocker from above 82402103...
-
Page 11: Technical Data
KNX push-button universal / KNX push-button standard / KNX push-button extension Technical data KNX medium TP256 Safety X-mode Commissioning mode S-mode Rated voltage DC 21 ... 32 V SELV Current consumption KNX without push-button extension or external switching con- 4.9 ... 8.2 mA tacts with push-button extension 6.6 ... -
Page 12: Warranty
KNX push-button universal / KNX push-button standard / KNX push-button extension Warranty The warranty is provided in accordance with statutory requirements via the specialist trade. ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle GERMANY Telefon: +49 2355 806-0 Telefax: +49 2355 806-204 kundencenter@jung.de...
