Jung WG 800 Manual

Timer switches
Timer switches
Timer switch inserts
Ref.-no.: .. 11015 .., .. 11030 .., .. 11060 .., .. 11120 ..,
.. 11030-20 .., .. 11120-20 .., .. 110.120 ..,
.. 110.240 .., .. 110.360 .., .. 110.720 ..,
8012 W, 8015 W
Covers
Ref.-no.: .. 1541 .., .. 1941 ..
Operating instructions
1 Safety instructions
Electrical devices may only be installed and connected by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow the instructions in full.
These instructions are an integral part of the product, and must remain with the end customer.
2 Device components
(1) Insert
(2) Frame
(3) Cover
(4) Scale disc
(5) Toggle
3 Function
Intended use
- time tolerance ± 10 %
- resettable by means of slip clutch
Designs
11015 ..
8015 W
.. 11030 ..
.. 11030-20 ..
.. 11060 ..
.. 11120 ..
8012 W
.. 11120-20 ..
.. 110.120 ..
.. 110.120-20 ..
.. 110.240 ..
.. 110.360 ..
.. 110.720 ..
0024094801
1
2

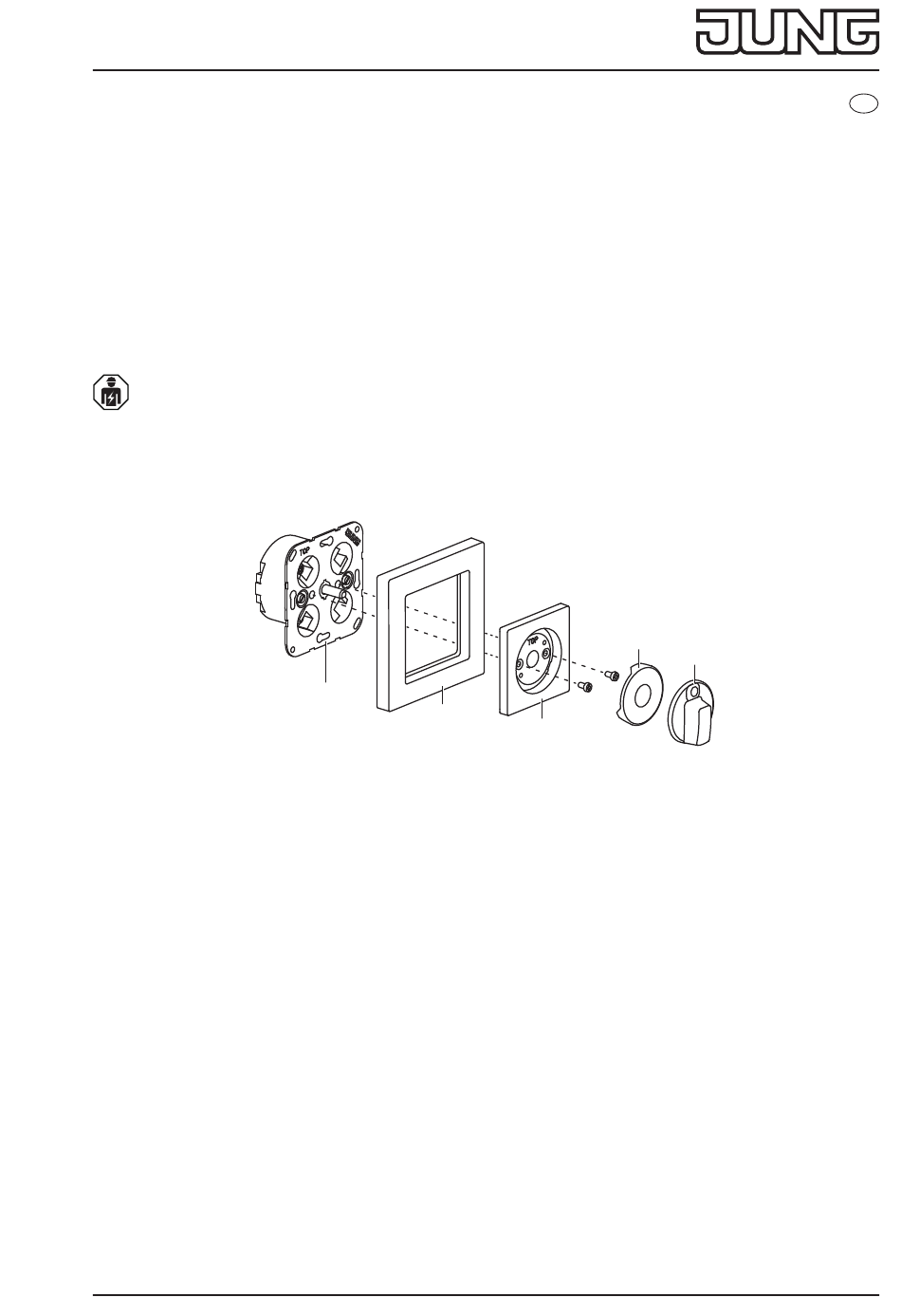

Fig. 1: Device components
2-pole, 1-way, max. 15 min.
2-pole, 1-way, max. 15 min.
2-pole, 1-way, max. 30 min.
1-pole, 2-way, max. 30 min.
2-pole, 1-way, max. 60 min.
2-pole, 1-way, max. 120 min.
2-pole, 1-way, max. 120 min.
1-pole, 2-way, max. 120 min.
2-pole, 1-way, max. 120 min.
1-pole, 2-way, max. 120 min.
2-pole, 1-way, max. 240 min.
2-pole, 1-way, max. 360 min.
2-pole, 1-way, max. 720 min.
1 / 2
4
5
3
