Light Management

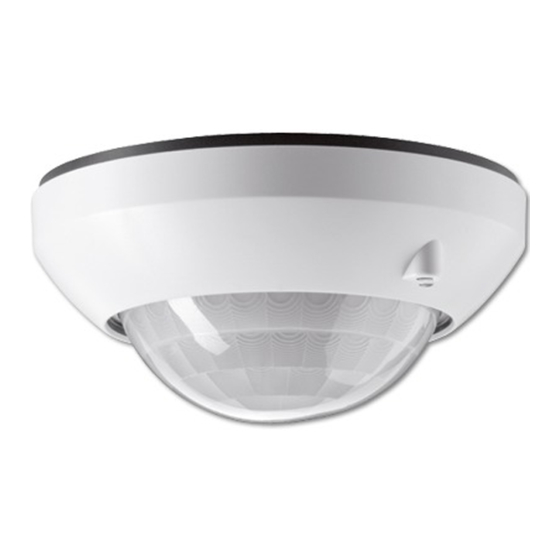

Ceiling automatic switch
Ceiling automatic switch
Art.-No.: DAW 360 WW
Ceiling automatic switch
Art.-No.: DAW 360 AL
Operating instructions
1 Safety instructions
Electrical equipment may only be installed and fitted by electrically skilled persons.
Failure to observe the instructions may cause damage to the device and result in fire and
other hazards.
Danger of electric shock. Always disconnect before carrying out work on the devise or
load. At the same time, take into account all circuit breakers that supply dangerous
voltage to the device or load.
Danger of electric shock. Device is not suitable for disconnection from supply voltage.
The load is not electrically isolated from the mains even when the device is switched off.
Do not press on the sensor window. Device can be damaged.
The device is not suitable for use as a burglar alarm or other alarm.
These instructions are an integral part of the product, and must remain with the end
customer.

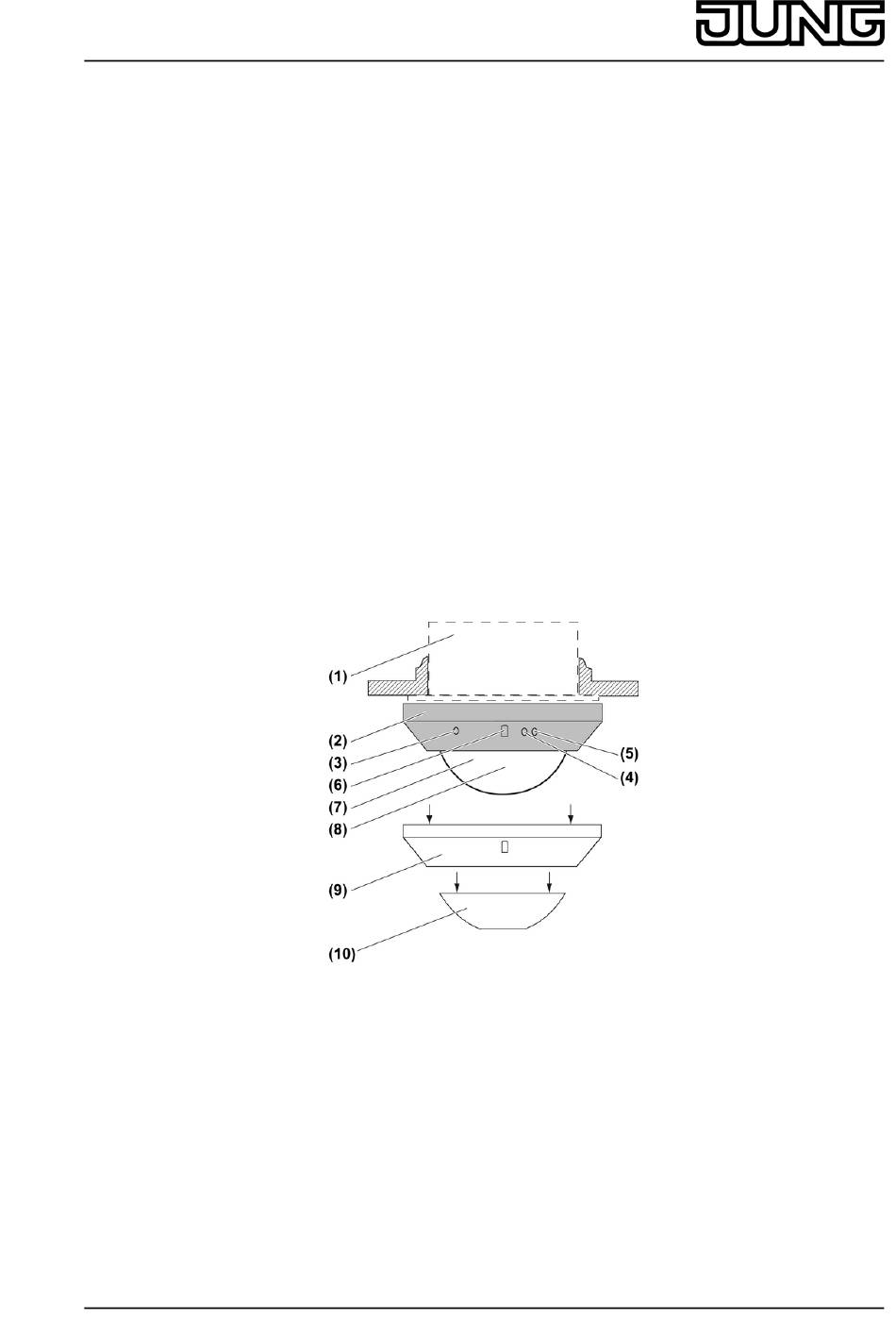

2 Device components
(1) Flush-mounted insert
(2) Motion detector cover
(3) Adjuster sens
(4) Adjuster time
(5) Adjuster lux
(6) Brightness sensor
(7) LED display, behind the lens
(8) Lens
(9) Decor ring
(10) Push-on cover
82563813
J:0082563813
Figure 1
1/8
17.11.2011
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Jung DAW 360 WW
Summary of Contents for Jung DAW 360 WW
- Page 1 Light Management Ceiling automatic switch Ceiling automatic switch Art.-No.: DAW 360 WW Ceiling automatic switch Art.-No.: DAW 360 AL Operating instructions 1 Safety instructions Electrical equipment may only be installed and fitted by electrically skilled persons. Failure to observe the instructions may cause damage to the device and result in fire and other hazards.
- Page 2 Light Management Ceiling automatic switch 3 Function Intended use Automatic switching of lighting depending on the heat motion and ambient brightness. Operation with concealed insert for dimming, switching or extension insert, 3-wire Ceiling installation on flush-mounted insert Product characteristics Run-on time, sensitivity and brightness threshold settable Test operation for checking the detection area Short-time operation to control signal encoders Dimming phase in combination with dimming insert...
- Page 3 Light Management Ceiling automatic switch Dimming light with dimming insert The light can be dimmed using a 2-wire extension. The light remains at the dimmed value until the run-on time has elapsed. Press 2-wire insert at top or bottom until the desired brightness is reached. i An installation button cannot be used for dimming.
- Page 4 Light Management Ceiling automatic switch Figure 3: Detection area dependent on the direction of movement i Note direction of motion (figure 3). Motions that are transverse to the motion detector (Drawing B) can be detected better than motions towards or away from the motion detector (Drawing A).
- Page 5 Light Management Ceiling automatic switch 5.2 Commissioning Testing the detection area Figure 4: Test setting The motion detector is fitted and connected. Pull off push-on cover (10) Pull off decor ring (9). Set sens adjuster (3) to max(figure 4). Set time adjuster (4) to test. Set lux adjuster (5) to 3 for brightness-independent switching.
- Page 6 Light Management Ceiling automatic switch Limiting the detection area Figure 5: Push-on cover The push-on cover can be used to limit the detection area, e.g. in order to mask out interference sources. Cover size Detection area on the floor Complete push-on cover Ø...
- Page 7 Light Management Ceiling automatic switch Attach decor ring. i To make the short-time operation independent of brightness, turn lux adjuster (5) to 3. Setting the brightness threshold Only when the brightness drops below the threshold will the light be switched on when there is motion in the detection area.
- Page 8 We provide a warranty as provided for by law. Please send the unit postage-free with a description of the defect to our central customer service office: ALBRECHT JUNG GMBH & CO. KG Service Center Kupferstr. 17-19 D-44532 Lünen Service-Line: +49 (0) 23 55 .
