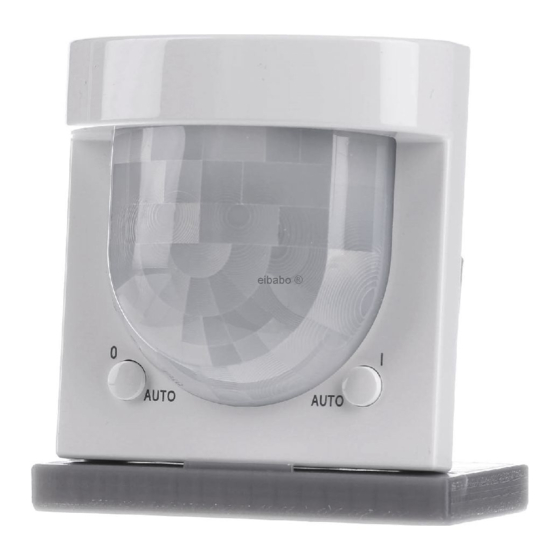

Standard / Universal automatic switch 2.2 m
Universal automatic switch 2.2 m
Art. No. : ..3281-1..
Standard automatic switch 2.2 m
Art. No. : ..3281..
Operating instructions
1 Safety instructions
Electrical devices may only be mounted and connected by electrically skilled
persons.
Serious injuries, fire or property damage possible. Please read and follow manual fully.
Do not press on the sensor window. Device can be damaged.
The device is not suitable for use as a burglar alarm or other alarm.
Caution. Damage to sensors may result due to high thermal radiation. Avoid direct
sunlight penetration in the sensor window.
These instructions are an integral part of the product, and must remain with the end
customer.

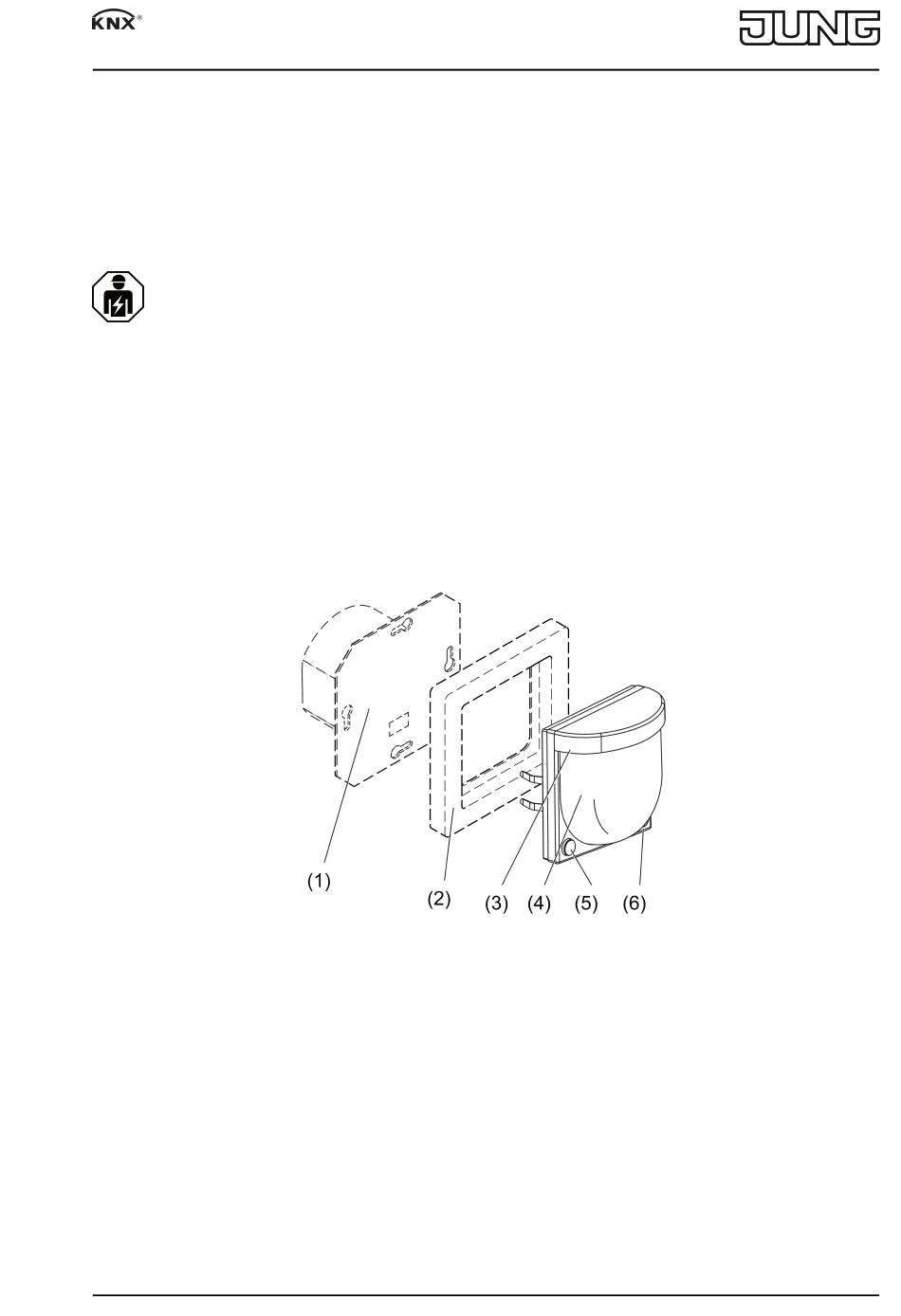

2 Device components
32597103
j0082597103
Figure 1: Device components
1/9
30.05.2017
