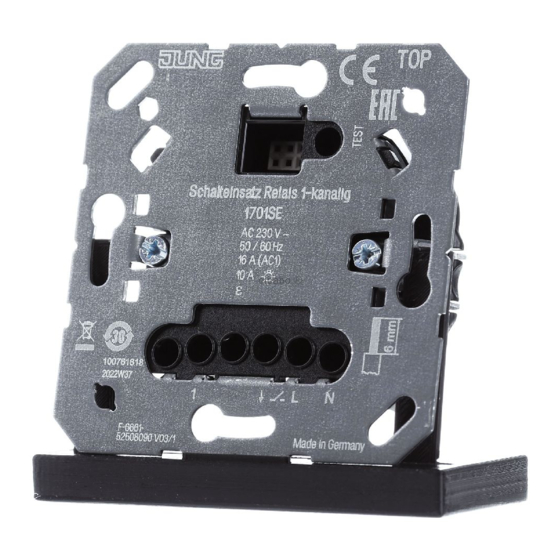

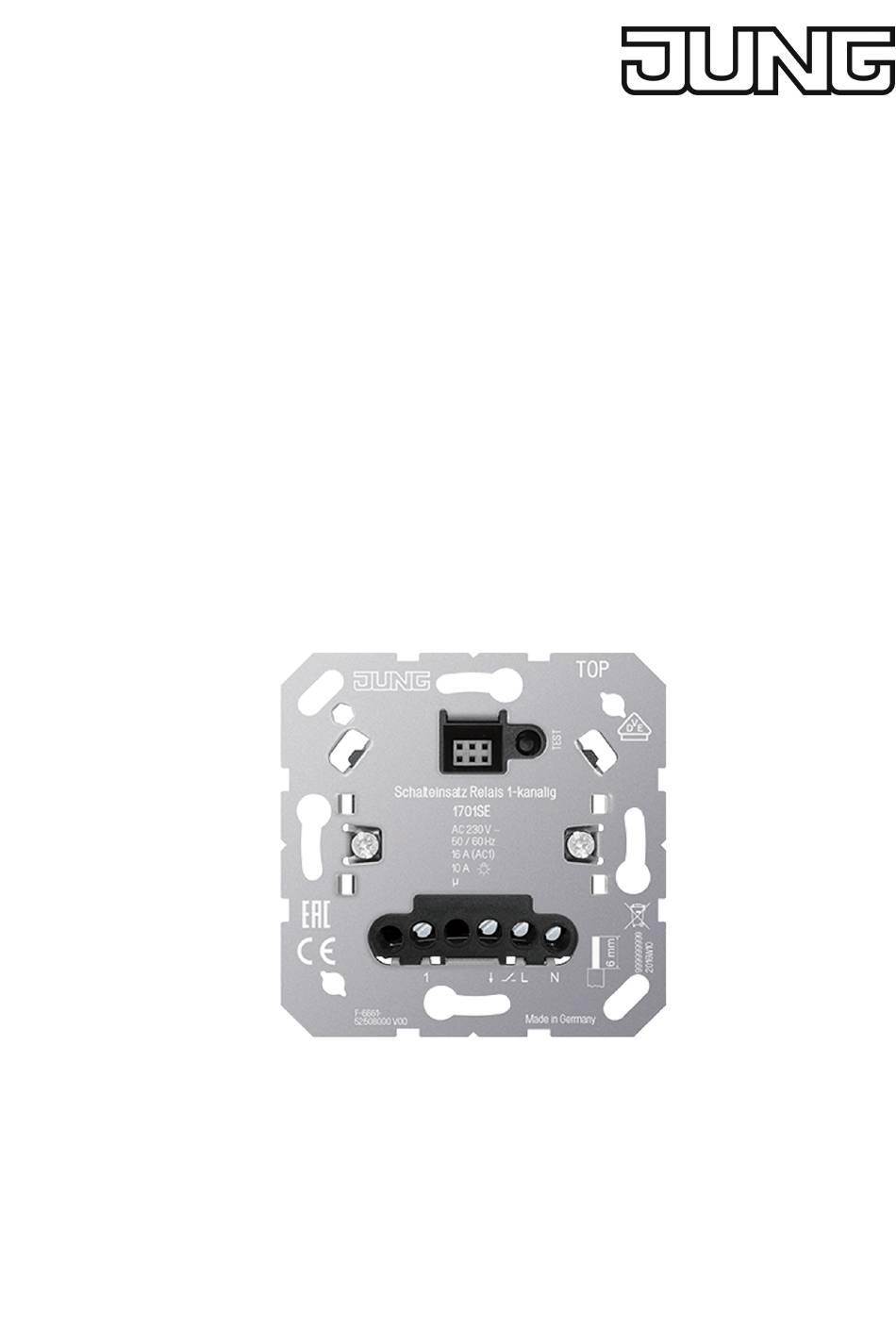

- Page 1 Operating instructions Relay switch insert 1-channel Art. no. 1701SE ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle GERMANY Telefon: +49 2355 806-0 Telefax: +49 2355 806-204 kundencenter@jung.de 19.10.2022 82597453 J0082597453 www.jung.de...
-
Page 2: Table Of Contents
Relay switch insert 1-channel Table of Contents Safety instructions ...................... 3 Intended use ........................ 3 Operation .......................... 3 Information for electrically skilled persons ................ 4 Technical data ........................ 6 Warranty.......................... 7 82597453 2 / 7 19.10.2022 J0082597453... -
Page 3: Safety Instructions
Control of electric underfloor heating systems and electrothermal valve drives in combination with a room thermostat cover or KNX RF push-button – Operation with suitable cover from the systems LB management, JUNG HOME, eNet and KNX RF – Mounting in appliance box with dimensions according to DIN 49073 Product characteristics –... -
Page 4: Information For Electrically Skilled Persons
Relay switch insert 1-channel Information for electrically skilled persons DANGER! Mortal danger of electric shock. Disconnect the device. Cover up live parts. Connecting and fitting the device Image 1: Connection diagram with optional extensions Image 2: Terminal-specific cable cross-section ￭ Connect the switch insert (2) according to the connection diagram (see figure 1). - Page 5 Relay switch insert 1-channel Lit push-buttons must have a separate N terminal. ￭ Fit the switch insert in the appliance box, the connection terminals must be at the bottom. Do not attach or replace the cover under voltage, otherwise this might cause a malfunction.
-
Page 6: Technical Data
Relay switch insert 1-channel Image 3: Connection diagram in combination with a room thermostat cover or KNX RF push-button Switching contact for switching to cooling mode Electric underfloor heating system (max. 16 A) or electrothermal valve drives If 230 V is applied to extension input 1, cooling mode is active. Technical data Rated voltage AC 230 V ~... -
Page 7: Warranty
2-wire, push-button unlimited 3-wire rotary extension Warranty The warranty is provided in accordance with statutory requirements via the specialist trade. ALBRECHT JUNG GMBH & CO. KG Volmestraße 1 58579 Schalksmühle GERMANY Telefon: +49 2355 806-0 Telefax: +49 2355 806-204 kundencenter@jung.de www.jung.de...
