Key switches
Key switches
Surface-mounted aluminium housings
Ref.-no.: 804.28 G, 806.28 G, 833.18 G, 834.28 G
Operating instructions
1 Safety instructions
Electrical devices may only be installed and connected by electrically skilled persons.
Serious injuries, fire or property damage possible. Please read and follow the instructions in full.
These instructions are an integral part of the product, and must remain with the end customer.
2 Device components
1
(1) Housing
(2) Insert
(3) Profile half cylinder
(4) Locking plate (see accessories)
(5) Centre plate
3 Function
Intended use
- for profile half cylinder with approx. 40 mm overall length (DIN 18252), e.g. art. no.: 28, 28 G1
Designs
Blind reversing switch, 2-pole (2 motors)
804.28 G
Blind reversing push-button, 2-pole (2 motors)
834.28 G
Push-button (2-way), 1-pole
833.18 G
Universal-off 2-way switch, 2-pole
806.28 G
0024006800
2
3

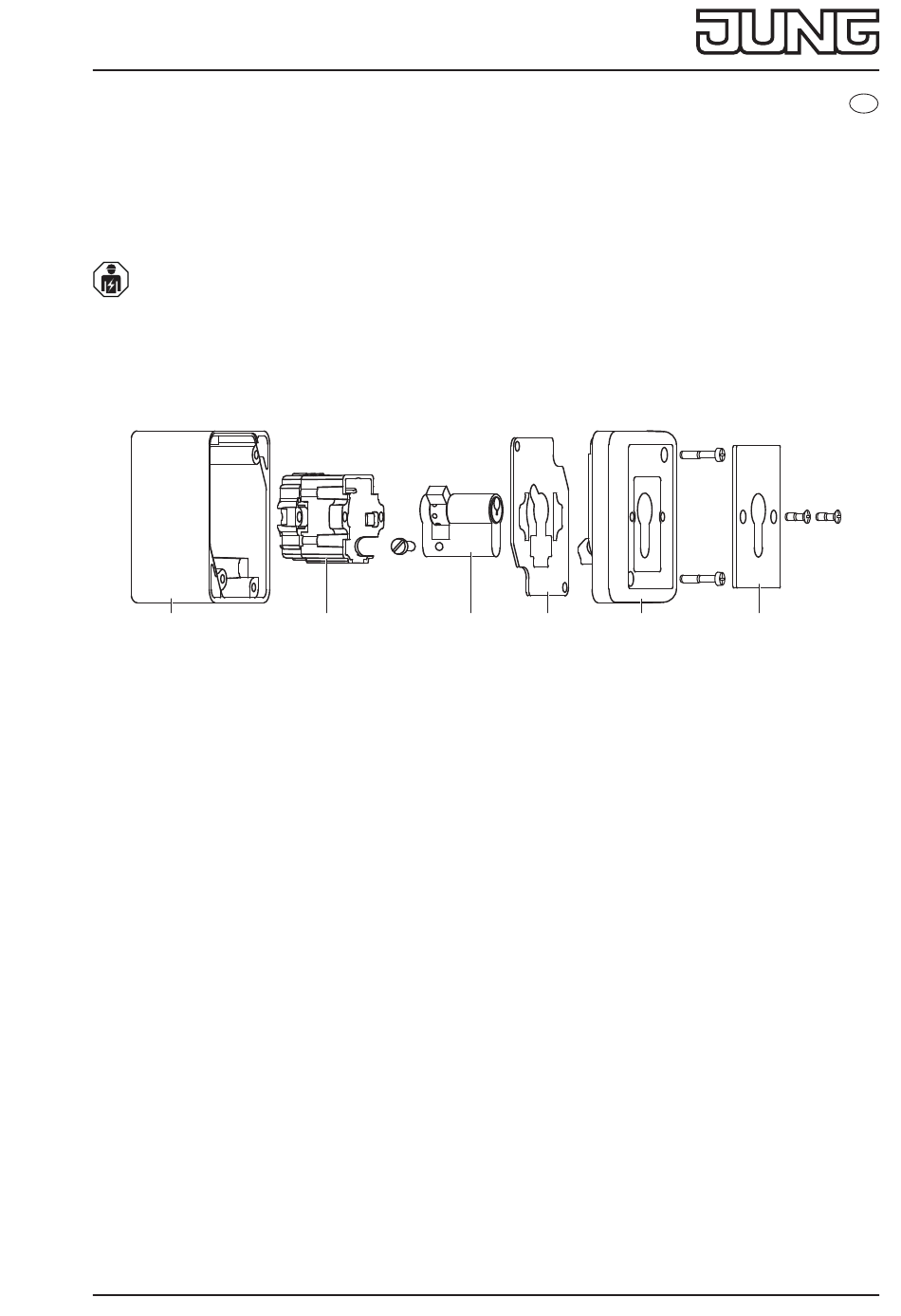

Fig. 1: Device components
1 / 4
4
5
GB
5
21.11.2024
