Light Management

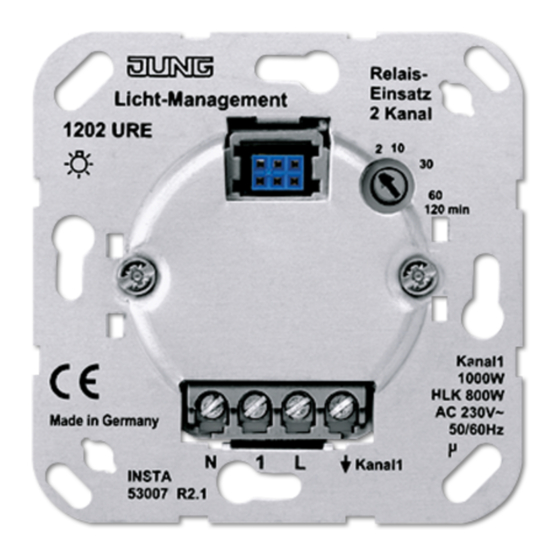

Relay switch insert 2-channel
Relay switch insert 2-channel
Art.-No.: 1202 URE
Operationsmanual
1 Safety instructions
Electrical equipment may only be installed and fitted by electrically skilled persons.
Failure to observe the instructions may cause damage to the device and result in fire and
other hazards.
Danger of electric shock. Always disconnect before carrying out work on the devise or
load. At the same time, take into account all circuit breakers that supply dangerous
voltage to the device or load.
Danger of electric shock. Device is not suitable for disconnection from supply voltage.
Danger of electric shock on the SELV/PELV installation. Not suitable for switching SELV/
PELV voltages.
Danger of electric shock. Do not operate the insert without a cover.
These instructions are an integral part of the product, and must remain with the end
customer.

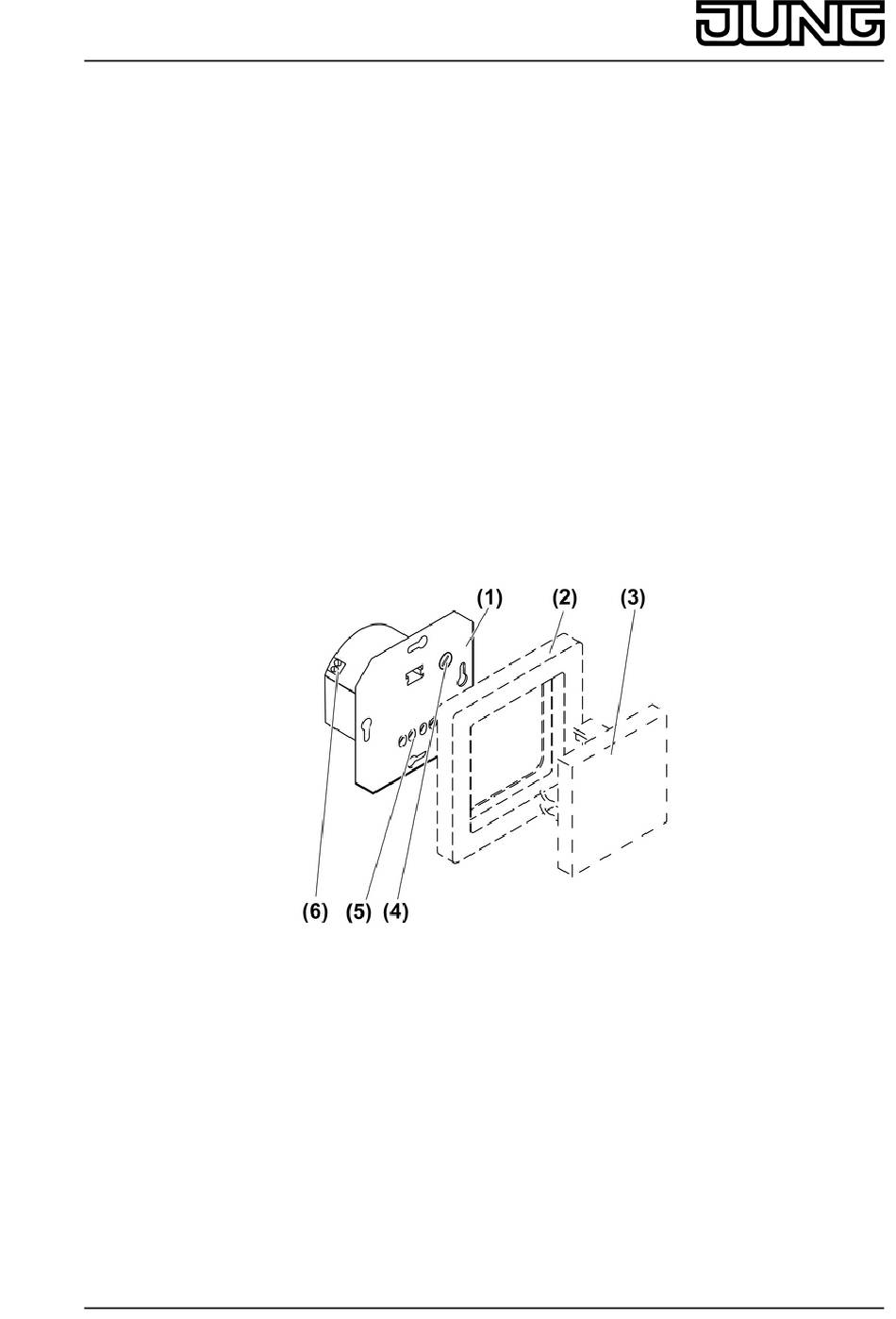

2 Device components
(1) Flush-mounted insert
(2) Frame
(3) Pushbutton cover
(4) Adjuster for run-on time of output HLK
(5) Connection terminals for mains voltage and output Kanal 1
(6) Connection terminals for output HLK for HVAC
3 Function
Intended use
-
Output Kanal 1 for switching light
-
Output HLK for switching light, fans, air conditioners, thermostats and motors
32541323
J:0082541323
picture 1
1/6
30.07.2010
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Jung 1202 URE
Summary of Contents for Jung 1202 URE
- Page 1 Light Management Relay switch insert 2-channel Relay switch insert 2-channel Art.-No.: 1202 URE Operationsmanual 1 Safety instructions Electrical equipment may only be installed and fitted by electrically skilled persons. Failure to observe the instructions may cause damage to the device and result in fire and other hazards.
-
Page 2: Operation
Light Management Relay switch insert 2-channel Operation with suitable cover Installation in appliance box acc. to DIN 49073 Product characteristics Output HLK with potential-free NO contact for switching a second electric circuit, not SELV or PELV Switch-on delay of output HLK can be switched off Run-on time of output HLK adjustable Connection of extensions possible Function with motion detector or presence detector cover... - Page 3 Light Management Relay switch insert 2-channel Press extension. Output Kanal 1 switches on. When the switch-on delay for output HLK is switched off, output HLK switches on directly. When the switch-on delay for output HLK is switched on, output HLK switches on after a time delay of 3 minutes, if no additional motions are detected for approx.
- Page 4 Light Management Relay switch insert 2-channel Connect insert according to connection diagram (picture 2). i Output HLK can be used to switch a second external conductor. i For extension units use the electric circuit of output Kanal 1. i Illuminated installation buttons may only be connected if they have a separate N terminal. Connect the extensions, optional.
- Page 5 Light Management Relay switch insert 2-channel picture 3: Adjuster for run-on time of output HLK (1) Flush-mounted insert (10) Adjuster for run-on time of output HLK Turn adjuster (10) to the desired time. 6 Appendix 6.1 Technical data Rated voltage AC 230 V ~ Mains frequency 50 / 60 Hz...
-
Page 6: Warranty
We provide a warranty as provided for by law. Please send the unit postage-free with a description of the defect to our central customer service office: ALBRECHT JUNG GMBH & CO. KG Service Center Kupferstr. 17-19 D-44532 Lünen Service-Line: +49 (0) 23 55 .
