Fitting Instructions

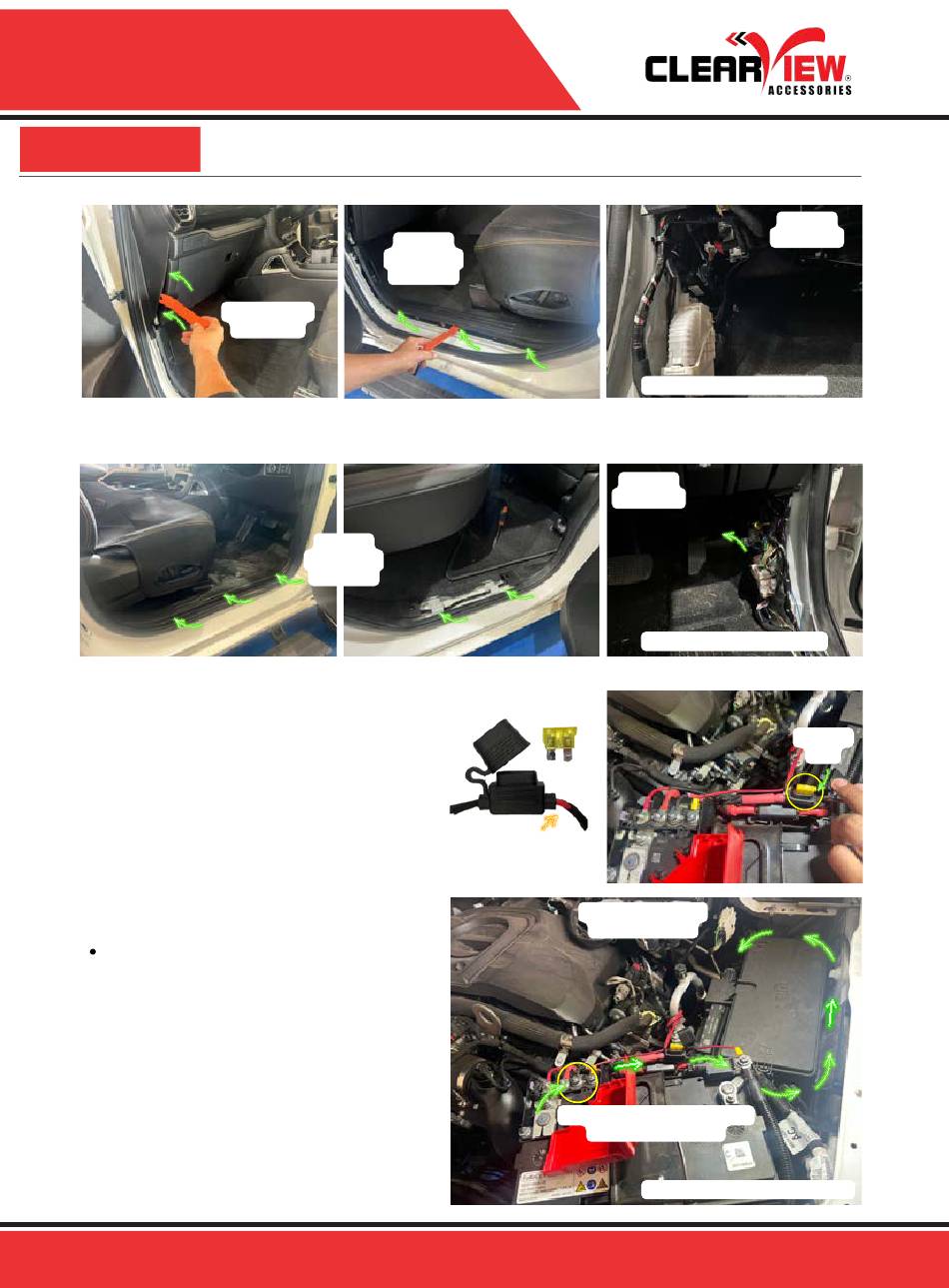

Step 1
Installation of wiring
1.1 Remove LHS Passenger front + rear door sill panels and LHS Passenger front kick panel.
Pry back side
trim panel
1.2 REPEAT on RHS / Drivers side.
1.3 Remove the fuse from the
(Red) wire supplied, then connect the wire
to the vehicle's main crank battery
terminal (+) located in the engine bay.
Ensure connection is secure.
Feed Positive wire
firewall into the passenger (left) side of
vehicle cabin.
NB: Plastic wire feeder may be required for
this step and subsequent steps.
6
Remove
front + rear
sill panels
Remove
front + rear
sill panels
Positive
Positive
through vehicle
clearviewaccessories.com.au
*For illustrative purposes only
Remove
kick panel
*For illustrative purposes only
Fuse
Positive Wire
Route Positive wire
through firewall
Connect Positive (Red) wire
vehicle main battery
*For demonstration purposes only
Remove
kick panel
Remove
fuse
to
