- Page 1 ASSEMBLY INSTRUCTIONS VERSION 1.1...
-
Page 2: Our Range
Our Range Towing Mirrors Power Boards Rock Tamers Tyre Spider Power Slides Easy Slides Expanda Slide Fridge Cage Pantry Cutlery Set Clip on Trays Cable Saver clearviewaccessories.com.au... -
Page 3: Introduction
Phone: (03) 8351 9933 Email: info@clearviewaccessories.com.au Website: clearviewaccessories.com.au Find us on social media facebook.com/clearviewaccessories instagram.com/clearviewaccessories youtube.com/clearviewaccessories Due to Clearview's Continuous Improvement Program, information may change without notice. Clearview takes no responsibility for the result of incorrect use of these installation instructions. clearviewaccessories.com.au... -
Page 4: Table Of Contents
Contents Our Range Introduction Getting Started Before You Start Maintaining Your Easy Slide® 8-10 Assembly Instructions Positioning the Slide Installing your Fridge Safe Usage FAQs Warranty clearviewaccessories.com.au... -
Page 5: Getting Started

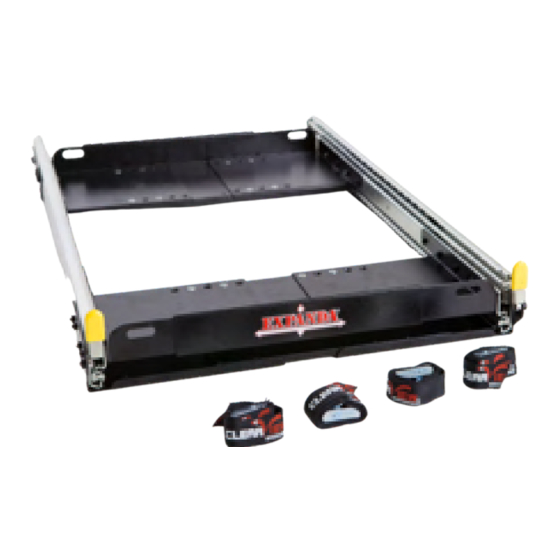

2x M10 x 16 Button Head Bolt 4x Fridge Strap 2x M10 Flat Washer If anything is missing, or damaged, please do not install your new Easy Slide® and contact us on 03 8351 9933 or via: info@clearviewaccessories.com.au Tools Required:... -
Page 6: Before You Start
The Clearview Easy Slide® is designed to be installed internally within a canopy, vehicle or trailer. Constant exposure to the elements can cause rust. -
Page 7: Maintaining Your Easy Slide
Maintaining your Easy Slide How do I maintain my Easy Slide®? The Clearview Easy Slide® is designed to be installed internally within a canopy, vehicle or trailer. Constant exposure to the elements can cause rust, and may void your product warranty. -
Page 8: Assembly Instructions
Easy Slide® base plate. 4. Using timber screws provided, temporarily fix the rear of the Easy Slide® to the top of your drawers. - Page 9 8. Lower the fridge tray by pushing down on the handle, until top groove of plastic chocks slips under the back edge of the tray assembly frame. A moderate amount of downward force is required when the Easy Slide® is empty. The plastics chocks will prevent fridge tray from lifting back up.
- Page 10 Remove plastic chocks and release handle trigger to engage the cog lock. 11. Test your Easy Slide® to ensure cog lock mechanism works correctly and engages in every available position. If all working correctly, return the Easy Slide® to the stowed position and re-engage the Easy Slide®...
-
Page 11: Positioning The Slide
Place your fridge into the Easy Slide® and return the slide into stowed position. Test the position of the Easy Slide® to ensure it remains clear of vehicle side trims and rear door in all possible configurations, including closing the vehicle rear door with the Easy Slide® in its secured stowed position. -
Page 12: Installing Your Fridge
An additional strap bracket is included on the tray, should you choose to use this as a tie down point instead. To secure fridge, hold the strap by the buckle above the Easy Slide® and feed the loose end of the strap down through the fridge handle/tie down point and through the Easy Slide®... -
Page 13: Safe Usage
Safe Usage The Clearview Easy Slide® has a maximum weight capacity of 180Kg on the fridge tray at the maximum extension of slide. Do not overload or use the slide in a manner contrary to its intended operation as you may damage your equipment and void warranty. -
Page 14: Faqs
290mm. Please note that our Clearview Easy Slide® is not designed for safe operation in an outdoor environment or to withstand the elements. Constant exposure to the elements such as rain and moisture can cause damage to the electrical components. -
Page 15: Warranty
A receipt will be required to make a warranty claim on any Clearview® product. If we determine that a Clearview Easy Slide® or Clearview Power Slide® is defective in materials or workmanship during the Warranty, we will either repair or replace the product. - Page 16 Clearview Accessories 3 Frog Court, Craigieburn VIC 3064 (03) 8351 9933 info@clearviewaccessories.com.au clearviewaccessories.com.au...
