ClearView PowerBoards PB -TA-004 Installation Instructions Manual

Toyota land cruiser 79 series 1984 - current

Advertisement

Quick Links

PB -TA-004
TOYOTA LAND CRUISER 79 SERIES
1984 - CURRENT
POWER BOARDS INSTALLATION INSTRUCTIONS
VERSION 2.0

Advertisement

loading
Need help?

Need help?

Do you have a question about the PowerBoards PB -TA-004 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for ClearView PowerBoards PB -TA-004

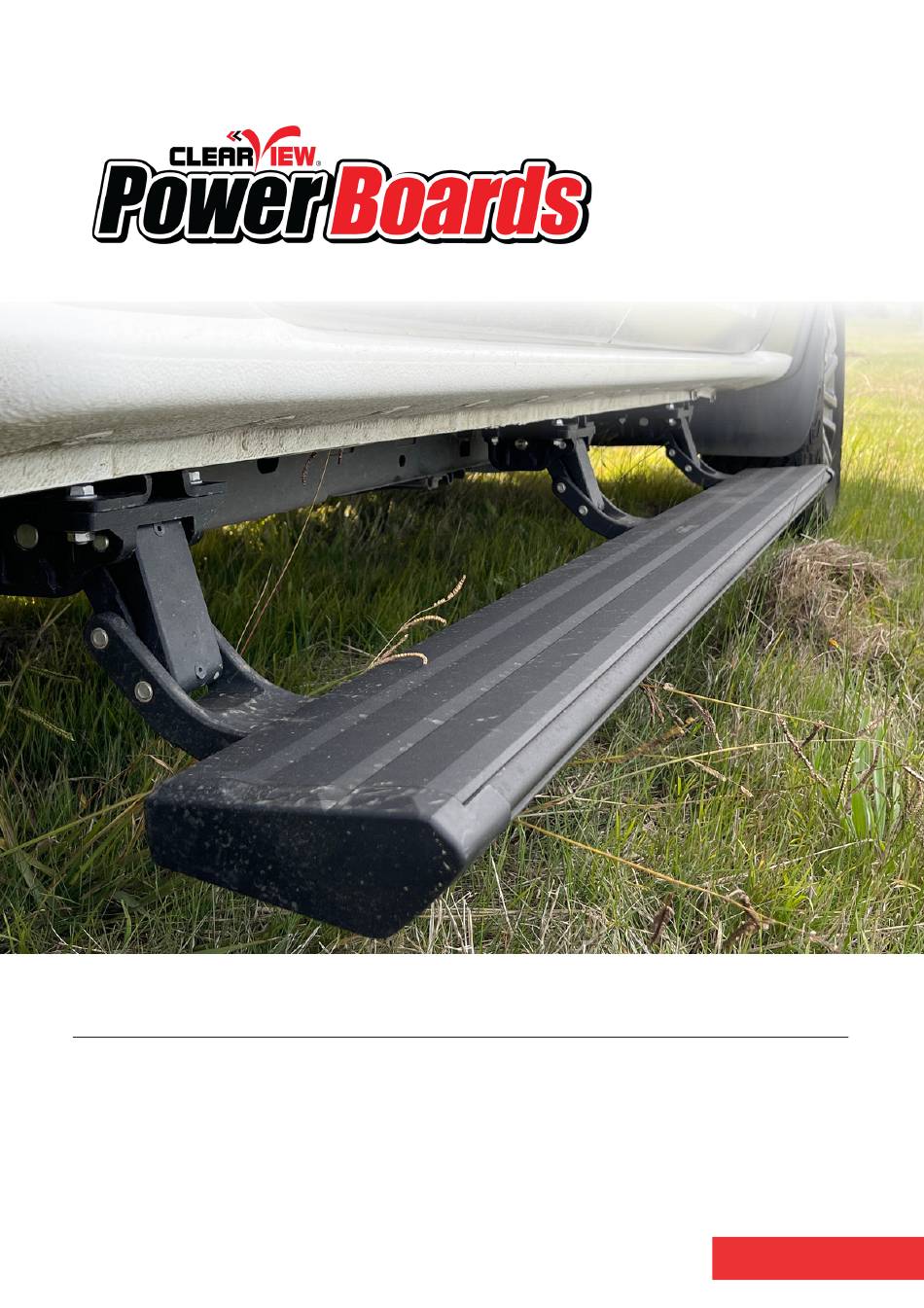

  • Page 1 PB -TA-004 TOYOTA LAND CRUISER 79 SERIES 1984 - CURRENT POWER BOARDS INSTALLATION INSTRUCTIONS VERSION 2.0...
  • Page 2 Phone: (03) 8351 9933 Email: info@clearviewaccessories.com.au Website: clearviewaccessories.com.au Find us on social media facebook.com/clearviewaccessories instagram.com/clearviewaccessories youtube.com/clearviewaccessories Due to Clearview's Continuous Improvement Program, information may change without notice. Clearview takes no responsibility for the result of incorrect use of these installation instructions. clearviewaccessories.com.au...
  • Page 3 Contents Introduction Kit Contents Before You Start Fitting Instructions 6-11 Operation of Clearview Power Boards FAQS Warranty Our Range clearviewaccessories.com.au...
  • Page 4: Kit Contents

    Kit Contents DESCRIPTION QUANTITY PARTS SUPPLIED 1 x Right (RF) Front Bracket Assembly 1 x Left (LF) 1 x Right (RM) Middle Bracket Assembly 1 x Left (LM) 1 x Right (RR) Rear Bracket Assembly 1x Left (LR) 4 x M8 Socket Head T Bolts Socket/Hex Head Bolt 12 x M6 Socket Head Bolts 12 x M6 Hex Head (25mm)
  • Page 5: Before You Start

    Remove all metal swarf and dust from all vehicle surfaces if the surface is used for accessory installation. IMPORTANT Clearview recommends installation of the Power Boards to be performed by a professional as installation will require vehicle trim removal, wire routing and electrical work. The installation should take approximately 3-4 hours.
  • Page 6: Fitting Instructions

    Fitting Instructions IMPORTANT Clearview recommends this installation to be completed by a professional. Incorrect installation may cause damage to your vehicle and possible personal injuries. Control unit and Wiring Reference Fuse Sensor Wire Harness Door Harness Positive Wire Connect to Positive+...
  • Page 7 The following instruction is for installation of the right-hand side Power Board. Follow same instructions for installation of left-hand side Power Board. IMPORTANT Clearview recommends this installation to be completed by a professional. Incorrect installation may cause damage to your vehicle and possible personal injuries. Step 1 Installation of wiring 1.1 Remove Fuse from Positive (Red) wire supplied and...
  • Page 8 Fitting Instructions Step 2 Installation of control unit and wiring 2.1 Layout ECU and Wire Harness set in Passenger footwell area. Connect the Motor Wire harness (small white power plug) and Sensor Wire harness (large white plug) to ECU. Once connectors are plugged in, leave ECU and wiring set in Left-Hand floor area, and tidy up at the end to ensure enough slack of wiring can be fed throughout the vehicle.
  • Page 9 The following instruction is for installation of the right-hand side Power Board. Follow same instructions for installation of left-hand side Power Board. IMPORTANT Clearview recommends this installation to be completed by a professional. Incorrect installation may cause damage to your vehicle and possible personal injuries. Step 3 Installing mounting brackets to vehicle 3.1 Locate and remove the factory rubber grommets...
  • Page 10 Fitting Instructions IMPORTANT Clearview recommends a Straight Edge Tool be used when mounting the Top Mounting Brackets to ensure they are straight and level, otherwise, incorrect installation may cause boards not to engage/move as they should. 3.3 Mount RF (Right Front), RM (Right Middle) & RR (Right Rear) brackets to the underbody of the vehicle/Vehicle Sill Panel using supplied hardware (nuts, bolts and washers).
  • Page 11 Only in some cases, the ‘U Shape’ packing washers may need to be placed in between the bracket assembly and vehicle bracket mounting points to correctly position Clearview Power Boards. i. In these circumstances, M8 bolts used to hold the top bracket to vehicle will need to be loosened to insert the ‘U Shape’...
  • Page 12 To do this, open vehicle door first so Clearview Power Boards are deployed. Step your foot on the running board and close your vehicle door at the same time, the Clearview Power Board should remain deployed. To reset, open and close your vehicle door again.
  • Page 13 FAQS: Can I perform the installation myself? I already have something plugged into my We recommend installation to be completed OBD-II port, where am I going to plug the by professionals, as there is electrical wiring Power Board harness to if it uses the OBD-II involved, as well as removal of vehicle trims.
  • Page 14: Warranty

    A receipt will be required to make a warranty claim on any Clearview® product. If we determine that a Clearview® Power Board is defective in materials or workmanship during the Warranty, we will either repair or replace the product. Repair or replacement is solely at the discretion of Clearview Accessories®.
