- Page 1 4KEX100-KVM-H2 HDMI 2.0 HDBaseT Extender with USB 2.0 User Manual...
- Page 3 AV Access Technology Limited assumes no responsibility for any inaccuracies that may be contained in this document. AV Access Technology Limited also makes no commitment to update or to keep current the information contained in this document.
- Page 4 Important Safety Instructions Do not expose this device to rain, moisture, dripping or splashing. No objects filled with liquids, such as vases, shall be placed on the device. Do not install or place this unit in a bookcase, built-in cabinet, or in another ...
-
Page 5: Table Of Contents
Table of Contents Introduction ......................2 Features ............................ 2 Package Contents ........................3 Panel ............................4 Front Panel........................4 Rear Panel ........................5 Installation and Application................. 7 Brackets Installation ......................7 Steps to install the device in a suitable location ..........7 IR Cable Operation ........................ -
Page 6: Introduction

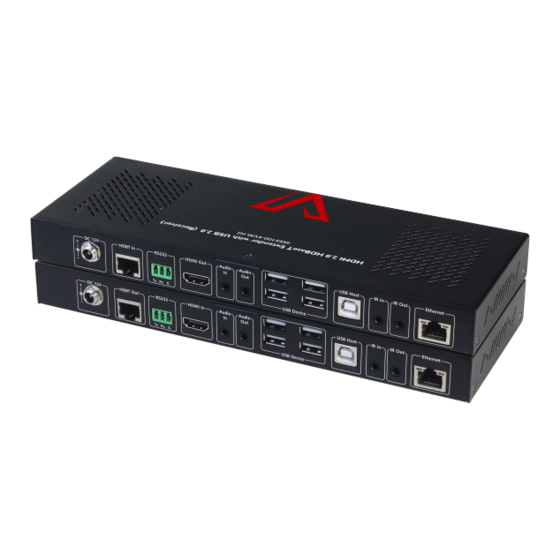

Introduction Overview 4KEX100-KVM-H2 is a 100m/330ft 4K@60 444 HDR HDBaseT Extender. The kit is HDCP 2.2 compliant and supports 4K/UHD video @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps. It provides HDMI transmission up to 330 feet (100 meters) over category cable. -
Page 7: Package Contents
Introduction Note: The kit supports Dolby Vision only if the resolution is less than or equal to 4K@30Hz. Package Contents Before you start the installation of the product, please check the package contents: Transmitter x 1 Receiver x1 Power Adapter (DC 12V 3A) x 1 ... -
Page 8: Panel
Introduction Panel Front Panel Transmitter & Receiver Name Description USB Control Switch to USB Host or USB Device mode. Power LED On: Transmitter (or Receiver) is powered on. Off: Transmitter (or Receiver) is powered off. Blinking: Transmitter (or Receiver) is working properly. Status LED Off: Transmitter (or Receiver) is not working properly. -
Page 9: Rear Panel
Introduction Rear Panel Transmitter Name Description DC 12V Connect to the power adapter provided. Connect to HDBT In port of the receiver with a Cat HDBT Out 5e/6/6a/7 cable. RS232 For RS232 pass-through or firmware upgrade. HDMI In Connect to an HDMI source using an HDMI cable. Audio In Analog audio input, connect to an audio source device. - Page 10 Introduction Receiver Name Description Connect to the power adapter provided. DC 12V Connect to HDBT Out of the transmitter with a Cat HDBT In 5e/6/6a/7 cable. RS232 For RS232 pass-through or firmware upgrade. HDMI Out Connect to an HDMI display using an HDMI cable. Audio In Analog audio input, connect to an audio source device.
-
Page 11: Installation And Application
Installation and Application Installation and Application Brackets Installation Note: Before installation, please ensure 4KEX100-KVM-H2 is disconnected from the power source. Steps to install the device in a suitable location Attach the installation bracket to the enclosure using the screws that were provided in the package separately. -
Page 12: Ir Cable Operation
Installation and Application IR Cable Operation Cable Type IR Emitter: Connect to the "IR Out" port of the device. Broadband IR Receiver (30-50 KHz): Connect to the "IR In" port of the device. Using the IR Emitter Insert the IR emitter plug into the “IR Out” jack located on the transmitter or receiver. - Page 13 Installation and Application IR Signal Emission Controlled Device IR Emitter IR Receiver Example 3: When connected to control system, ensure the IR emitter is over against the IR receiver's front side instead of its flat side (see below picture): IR Receiver IR Emitter IR Receiver IR Emitter...
- Page 14 Installation and Application IR Receiver TIVO BOLT Note: Products from AV Access do not support Bluetooth control, the introduction above applies to device with IR control capability only. Here is a list about different devices' control method. Device Control Method...
-
Page 15: Application
Installation and Application Application Blu-ray Player Power Adapter Connect to the Connect an HDMI source power adapter device to HDMI In of the Connect the provided. transmitter using a IR Emitter cable Note: The high-quality HDMI cable to IR Out port receiver can be or connect the IR powered by the... - Page 16 Installation and Application Power Adapter Connect to the power adapter Connect to a PC Connect to USB provided. Host/Device Connect an HDMI source Note: The device to HDMI In of the receiver can be transmitter using a powered by the high-quality HDMI cable transmitter.
- Page 17 Installation and Application devices to USB Device port of the transmitter and a USB host device to USB Host port of the receiver for remote KVM control. Ethernet Pass-through Connect the Ethernet port of the transmitter/receiver to the local area ...
-
Page 18: Rs232 Pass-Through
RS232 Pass-Through RS232 Pass-Through RS232 port can be used for bi-directional RS232 signal pass-through between transmitter and receiver. Steps to set up for RS232 pass-through: Switch the "RS232" on front panel of the transmitter and receiver to "Pass Through" mode. Connect a RS232 Master (or Slave) Device to RS232 port of transmitter with ... -
Page 19: Specifications
Specifications Specifications Technical Video Signal HDMI with 4K@60Hz 4:4:4, HDCP 2.2 800x600 , 1024x768 , 1280x720 , 1280x768 1280x800 , 1280x960 , 1280x1024 , 1360x768 1366x768 , 1440x900 , 1600x900 , 1600x1200 1680x1050 , 1920x1080 , 1920x1200 , 2560x1440 Input/Output 2,3,5,6,8 Resolution Support 2560x1600... - Page 20 Specifications Transmission Distance Note: Straight-through Category cables wired to T568B standard is recommended. Cable Range Supported Video 100m/330ft 1080P@60Hz 36bpp Cat 5e 90m/295ft 1080P@60Hz 48bpp 1080P@60Hz 3D 4K@30Hz Cat 6/6a/7 100m/330ft 4K@60Hz Input/Output:15m/50ft 1080P@60Hz 24bpp Input: 10m/33ft 4K@30Hz HDMI Output: 15m/50ft Input/Output: 5m/16ft 4K@60Hz www.avaccess.com...
-
Page 21: Trouble Shooting
Trouble Shooting Trouble Shooting Steps of Regular Troubleshooting Routine Power: Please make sure all devices are powered on. (source, extender, display devices) Indicator: Please make sure LED indicators of transmitter and receiver are normal according to user manual. Devices: Please make sure picture can be shown normally when connecting source to display devices directly. -
Page 22: Warranty
The warranty has expired. The defects are caused by the fact that the product is repaired, dismantled or altered by anyone that is not from an AV Access Technology Limited authorized service partner. The defects are caused by the fact that the product is used or handled improperly, roughly or not as instructed in the applicable User Guide. - Page 24 AV Access Technology Limited V1.0.2...
