- Page 1 4KEX70-VH VGA/HDMI over HDBaseT Extender User Manual...
- Page 3 Disclaimers The information in this manual has been carefully checked and is believed to be accurate. AV Access Technology Limited assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use.
-
Page 4: Important Safety Instructions
Important Safety Instructions Do not expose this device to rain, moisture, dripping or splashing. No objects filled with liquids, such as vases, shall be placed on the device. Do not install or place this unit in a bookcase, built-in cabinet, or in ... -
Page 5: Table Of Contents
Overview Table of Contents Overview ....................... 2 Package Contents ........................3 Panel ............................4 Installation Instructions ..................7 Operating with IR and RS232 ................8 IR Control ..........................8 RS232 for Serial Communication ..................10 Trouble Shooting ....................11 Specification ....................... 14 Warranty ...................... -
Page 6: Overview
Overview Overview The 4KEX70-VH HDMI extender is a slim transmitter receiver pair which is designed to extend HDMI 1080P@60Hz signals up to 70 meters and 4K@60Hz signals up to 40m via a single Cat 6a/7 cable. The transmitter can supply the power for the receiver. -
Page 7: Package Contents
Overview Package Contents Before you start the installation of the product, please check the package contents: 1 x 4KEX70-VH Transmitter 1 x 4KEX70-VH Receiver 1 x Power Adapter (DC 12V 2A) 1 x IR Emitter 1 x IR Broadband Receiver (30-50KHz) ... -
Page 8: Panel
Overview Panel Front Panel Transmitter Name Description ON: The transmitter is powered on. Power LED OFF: The transmitter is powered off. Flashing Slowly: Status LED The transmitter is working properly. OFF: The transmitter is not working properly. ON: HDCP video is being transmitted. Flashing Quickly: HDCP LED Non-HDCP video is being transmitted. - Page 9 Overview Receiver Name Description ON: The receiver is powered on. Power LED OFF: The receiver is powered off. Flashing Slowly: Status LED The receiver is working properly. OFF: The receiver is not working properly. ON: HDCP video is being transmitted. Flashing Quickly: HDCP LED Non-HDCP video is being transmitted.
-
Page 10: Rear Panel

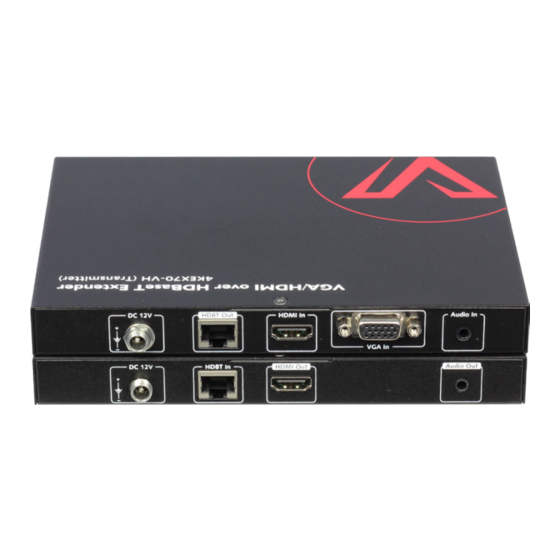

Overview Rear Panel Transmitter Name Description 12V DC power input, threaded port for standard or DC 12V locking connection HDBT Out Connects to HDBT IN port of HDBT receiver HDMI In Connects to an HDMI source VGA In Connects to a VGA source Audio input, for use with VGA source Audio In Receiver... -
Page 11: Installation Instructions
Installation Instructions Installation Instructions www.avaccess.com... -
Page 12: Operating With Ir And Rs232
Operating with IR and RS232 Operating with IR and RS232 IR Control IR pass-through function allows you to control the display from source location or control the source from the display location. Control the Source In this case, IR IN port in receiver is connected to an IR receiver cable and IR OUT port in transmitter is connected to an IR emitter cable. - Page 13 Operating with IR and RS232 Control the Display In this case, IR OUT port in receiver is connected to an IR emitter cable and IR IN port in transmitter is connected to an IR receiver cable. You can control the display from the source location with the display remote. www.avaccess.com...
-
Page 14: Rs232 For Serial Communication
Operating with IR and RS232 RS232 for Serial Communication According to the bi-direction RS232 pass through function, you can use two RS232 devices for serial communication by connecting to the transmitter and receiver via RS232 cables in order to control the source device or the display. Ensure the source device and the display device are connected separately to transmitter and the receiver as shown. -
Page 15: Trouble Shooting
Trouble Shooting Trouble Shooting Five Steps of Regular Troubleshooting Routine Power: Please make sure all devices (source, extender, display) are powered Indicator: Please make sure LED indicators of transmitter and receiver are normal according to user manual. Devices: Please make sure picture can be shown normally when connecting source to display devices directly. - Page 16 How can I make the IR work with third party control devices? Please make sure the third party device follows our pin definition as below: You can purchase a AV Access universal IR cable that will be compliant with any third party device(Amazon ASIN: "B01MYX46IC"). www.avaccess.com...
-
Page 17: Trouble Shooting
Trouble Shooting How to use the RS232 port in the extender? The RS232 port provides a channel to pass through protocol commands to control third party devices such as your source or display. RS232 uses the three pins that are labeled transmitter, receiver and GND. Connect a host computer or control system to the RS232 connector. -
Page 18: Specification
Device Dimensions (W x H x D) 180mm × 20mm × 134.2mm Transmitter: 0.60kg Product Weight Receiver: 0.58kg Cable Specifications: Note: AV Access recommends the use of T568B straight-through Category cables. Cable Type Range Supported Video 60 m 1080p, 60 Hz 36 bpp... -
Page 19: Warranty
The warranty has expired. The defects are caused by the fact that the product is repaired, dismantled or altered by anyone that is not from an AV Access Technology Limited authorized service partner. The defects are caused by the fact that the product is used or handled improperly, roughly or not as instructed in the applicable User Guide. - Page 20 AV Access Technology Limited V1.0.1...
