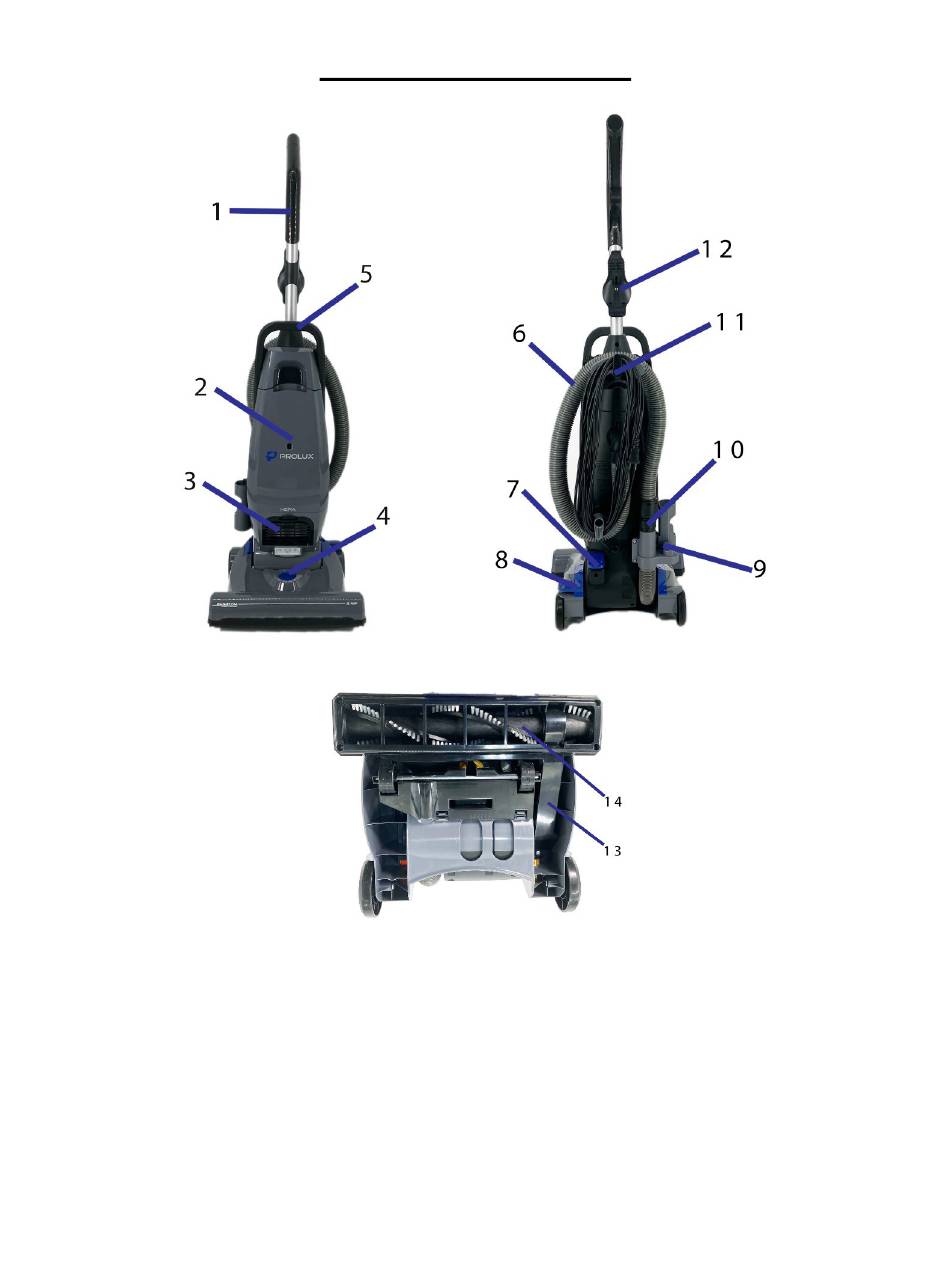

Machine Components
1. Handle
2. Dust Bag Compartment
3. Filter Compartment
4. Height Adjustment
5. Carry Handle
6. Suction Hose
7. Power Pedal
8. Handle Release Pedal
9. Built-in Tool Caddy
10. Suction Hose Mount
11. Quick Release Cord Wrap
12. Built-in Turbo Caddy
13. Brush Roll Cover Plate
14. Brush Roll
8
