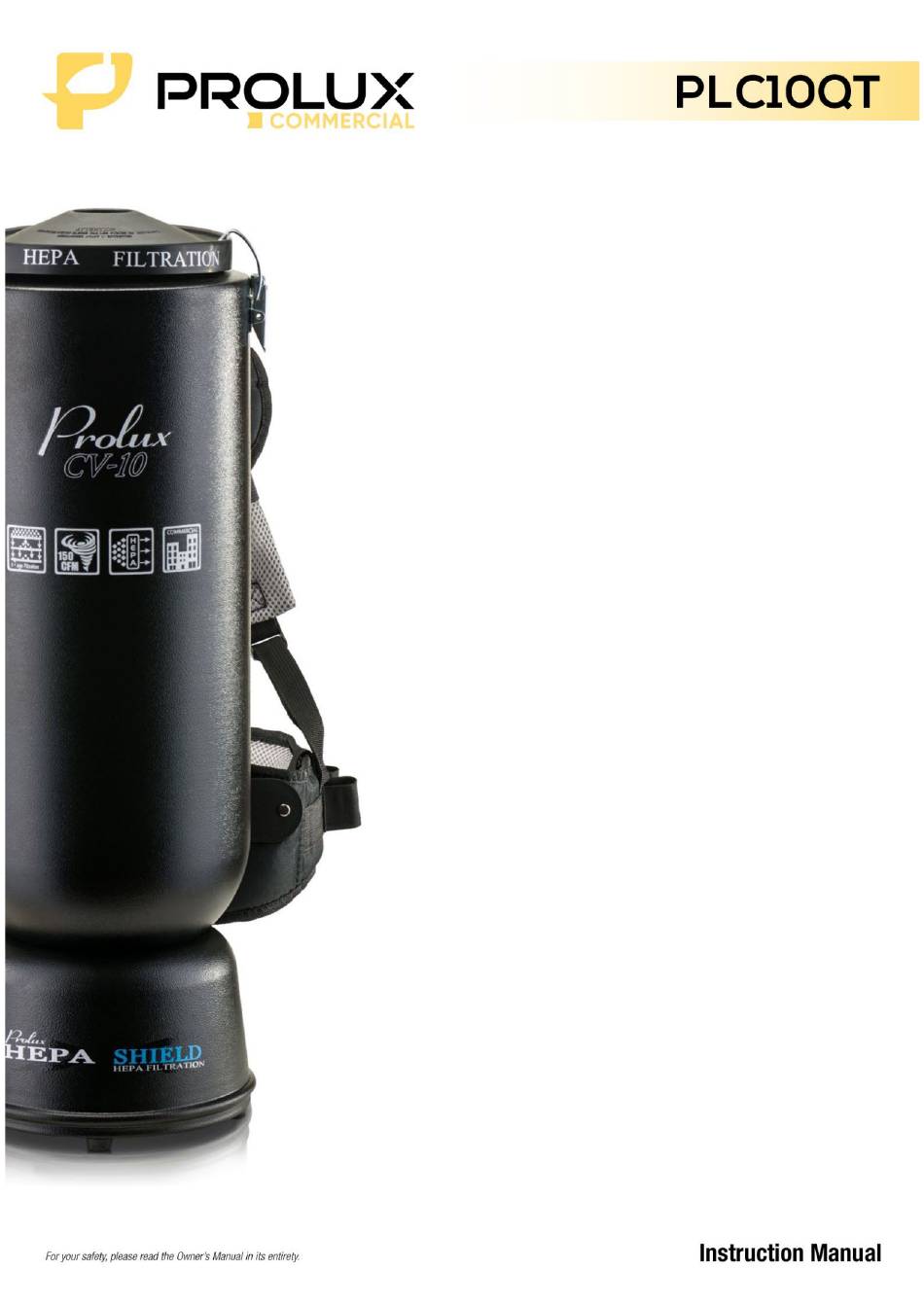

Prolux PLC10QT Instruction Manual
  1. Manuals
  2. Brands
  3. Prolux Manuals
  4. Vacuum Cleaner
  5. PLC10QT
  6. Instruction manual

Prolux PLC10QT Instruction Manual

Hide thumbs

Advertisement

Table of Contents

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PLC10QT and is the answer not in the manual?

Questions and answers

Related Manuals for Prolux PLC10QT

Summary of Contents for Prolux PLC10QT

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING. WARNING - to reduce the risk of fire, electric shock, or injury: 1. Do not leave the appliance unattended when plugged in. Unplug from outlet when not in use and before servicing.
  • Page 3 PROLUX PLC10QT Vacuum Diagram 1. Filter guard A 2. HEPA Filter 3. Filter guard B 4. Motor 5. Thermo-protector 6. Extension Cord (not provided) 7. Cover latch A 7a. Screws 8. Switch 9. Screws(M3*25) 10. Screws(M3*15) 11. Upper part of switch box 12.

  • Page 4: Grounding Instructions

    INSTALLATION AND OPERATIING INSTRUCTION INSPECTION Carefully unpack and inspect your new vacuum for shipping damage. Each unit is tested and thoroughly inspected before shipping. WARNING DO NOT vacuum with a frayed, worn, or damaged cord. DO NOT vacuum liquids or expose the backpack vacuum to rain or water. DO NOT vacuum hazardous or toxic materials.

  • Page 5: Extension Cord

    MOTOR The Prolux PLC10QT backpack vacuum uses the industry’s best motor, the Amtek motor. Amtek 119534-00 vacuum motors must never be used in an application in which wet or moist conditions are involved, where dry chemicals or other volatile materials are present, or where airflow may be restricted or blocked. Such motors are designed to permit the vacuumed air to pass over the electrical wiring to cool it.

  • Page 6: Preparation For Operation

    PREPARATION FOR OPERATION 1. Remove the cover (No. 34) and cover seal ring (No. 33) and pull out the cloth dust bag (No. 31). Check to see that the filter guards and filter (No. 1, No. 2 and No.3) have not shifted during shipping. (Figure A) 2.

  • Page 7: Maintenance Instruction

    8. Fix the switch box (No.11 and No.15) under the sewn strap and knot the other strap around the switch box. (Figure F & Figure G). 9. Loosen the waist belt latch and chest belt latch. In an open area, lift the vacuum by one shoulder strap and slide your free arm into the other strap.

  • Page 8: Caring For Your Vacuum

    CARING FOR YOUR VACUUM 1. Every time you finish vacuuming, shake out the cloth and paper dust bags (No.31 and No.32). 2. Each week, rinse, dry and return the foam (NO.21) at the bottom of the appliance below the motor. 3.
  • Page 9 If a component fails to meet the term of the warranty due to defects in workmanship or materials, Prolux Cleaners will repair or replace the defective component free of charge, including labor according to our flat rate schedule and the Prolux Cleaners Warranty Procedures.
  • Page 10 Product Category Polyethylene Steel Switches, Motors and Structural Body Electrical Parts Labor Foam Parts Paid Machine Years Years Years Years 3yr Switches 3yr or 700hrs (whichever Battery Walk Behind comes first) on the motor Scrubbers 14” and 3yr Electrical Parts 18”...
  • Page 11 2yr Switches Central Vacuums 2yr or 800hrs (whichever comes first) on the motor 5yr Electrical Parts Structural Foam Floor 3yr Switches Machines 3yr or 700hrs (whichever comes first) on the motor 3yr Electrical Parts 1yr Switches Commercial Floor 2yr or 900hrs (whichever Scrubber comes first) on the motor 13”/15”/17”/20”...
  • Page 12 6. Ozone Generators: Warranty does not ozone cover plates or filters. Warranty shall commence six (6) months from the purchase date by the Prolux Cleaners distributor, or on the purchase date by the original end user. Whichever comes first. Labor Rate Prolux Cleaners will allow $50.00 per hour for warranty labor work.
  • Page 13 If any operation is not covered in this flat rate schedule, Prolux Cleaners will determine a labor rate when a claim is made based on actual repair times by our own service technicians. Please note: Situations may arise that require special consideration. In these cases, to request special consideration, please contact your Prolux Cleaners warranty department or Prolux Cleaners salesperson and or rep group.
  • Page 14 1. Contact the Prolux Cleaners warranty department with the machine information (Serial number, Date of Purchase etc.) 2. If the battery is deemed to be within the warranty period, Prolux Cleaners will arrange a date to inspect and replace (upon inspection approval) the battery with the OEM.
  • Page 15 Freight damage is not covered under the Prolux Cleaners warranty policy. Replacement Parts: Prolux Cleaners will not honor any warranty claims for parts, labor, or travel if the replacement part was not purchased through Prolux Cleaners. Prolux cleaners reserves the right to review or modify the above document at any time without specific written or prior notice.

This manual is also suitable for:

Plc10bl 10qtPlc10 10qt
