Page 1: Operation Instruction

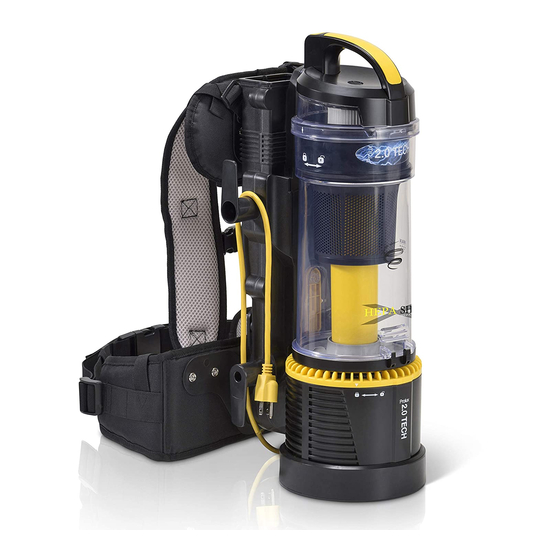

PROLUX 2.0 COMMERCIAL BAGLESS BACKPACK VACUUM CLEANER MODEL: 2.0-PRO Operation Instruction Read all instructions before using this appliance - 1 -... - Page 2 (compared to a upright vacuum). Weighing only 9 lbs. with the Prolux 2.0 Bagless Technology it is 40% more efficient and powerful than other bagless vacuums with an amazing 125 CFM of power.
- Page 3 Table of contents Specifications ..........................3 Optional Accessories ......................4 Safety Precautions ........................4-6 Assembly Getting To Know Your Vacuum ....................... 6-8 Using The Accessories & Tools ........................ 8-10 Operation Operating Instructions/Adjusting The Harness ..................10-11 Maintenance Emptying The Dust/Dirt Container ......................12 Changing/Cleaning The Intake HEPA Filter .....................
-
Page 4: Optional Accessories
Keep the operating manual for reference. Include the operating manual if you pass the appliance to third parties. Violations of the operating instructions can lead to severe injuries as well as damages to the appliance. Prolux takes no responsibility for damages due to violations of these operating instructions. - Page 5 1. Do not leave the vacuum cleaner when plugged in. Unplug from outlet when not in use, and before Servicing. 2. Use only as described in this manual. Use only the recommended attachments, battery, charger, and replacement parts. 3. To reduce the risk of electric shock, do not use outdoors, on wet surfaces, and do not use for wet pickup/cleanup.
- Page 6 Never stick objects into the appliance's openings -- it could cause the appliance to overheat. Cord Connection The vacuum and battery charger run on electricity, that means there is always danger of electric shock, so please observe the following; Never touch the plug with wet hands. Always pull directly with the plug.
-
Page 7: Operation Instructions

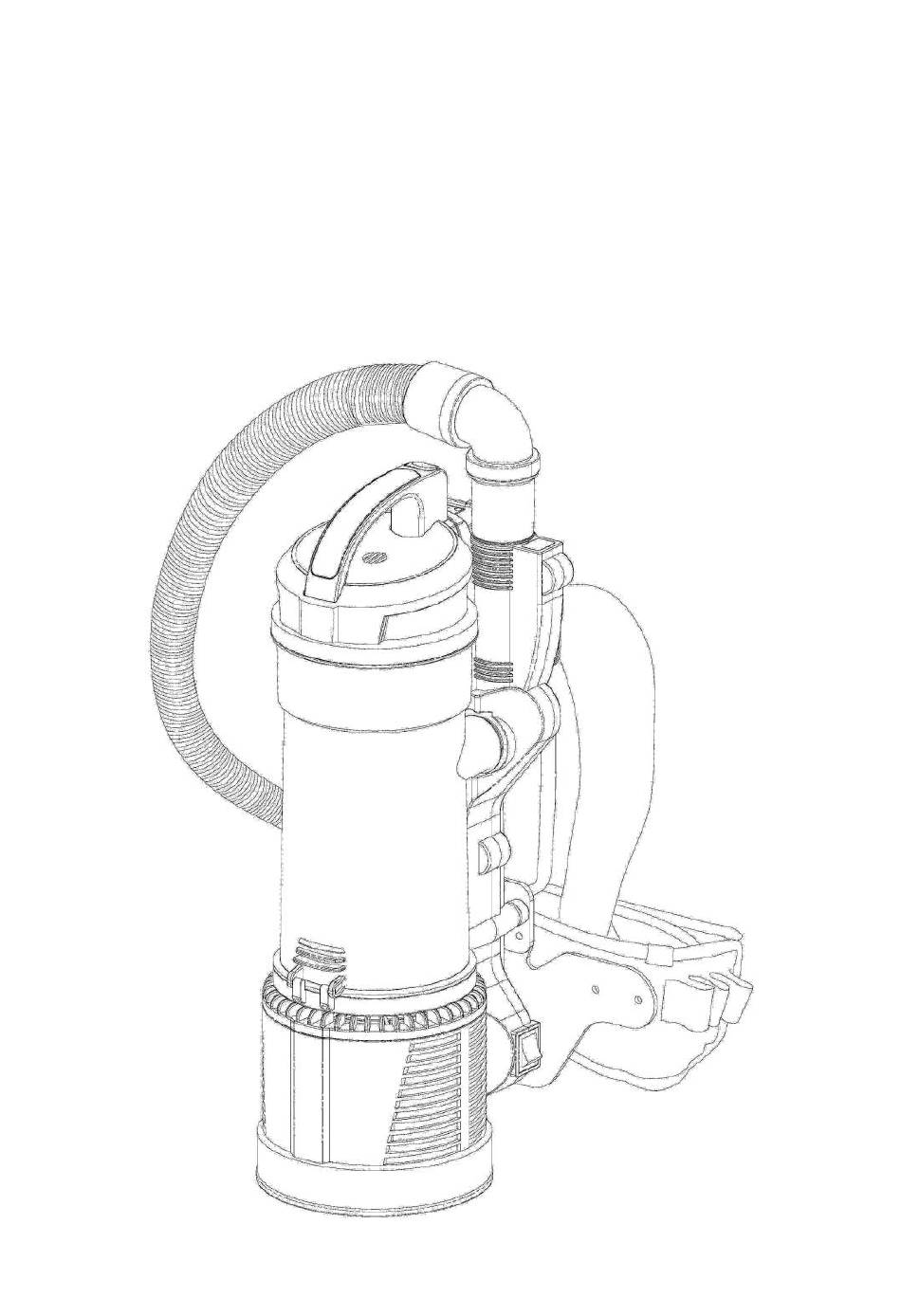

1. Main Motor Unit 2. Flexible Hose 3. Dust Container 4. Shoulder Straps 5. Exhaust HEPA Filter 6. Air Inlet Vortex Filter 7. Carpet/Floor Brush 8. Crevice Tool 9. Upholstery/Pet Hair tool 10. Dusting Brush 11. Mini Turbo Brush 12. Quick Adjusting Telescoping Wand 13. -
Page 8: Using The Attachments
USING THE ATTACHMENTS DUSTING BRUSH The Dusting Brush is used for all types of furniture. (Fig 3) CREVICE TOOL Use for cleaning radiators, cracks & crevices along corners, and baseboards and in-between cushions. (Fig 4) PET HAIR REMOVAL BRUSH The Pet Hair Removal Brush is used for removing pet hair from upholstery. The unique design makes it an excellent tool for removing unwanted pet hair from virtually any surface. - Page 9 Always test a surface in an area that cannot be seen before use. CARPET/FLOOR BRUSH The Prolux 2.0 includes a specially designed floor tool that can be used on any surface without switching attachments. Easily transition between high pile carpets, low pile carpets and any hard floor surface, with the Carpet/Floor Brush.
- Page 10 When vacuuming with your Prolux 2.0, you may vacuum using the standard forward and backwards vacuuming motion as you would with standard vacuum cleaners. However, because of the new Prolux 2.0 floor tool design, you can vacuum an area by vacuuming in half circle motions and vacuum the same area 2x as fast.
- Page 11 n USING YOUR VACUUM 1. Insert the power plug into the wall outlet 2. Connect hose and telescopic tube if desired. 3. Correctly place shoulder straps on each shoulder and secure the waistband strap. (Fig 8 through Fig 8b) Caution: If the waistband and both shoulder straps are not properly and securely in place, the unit could fall off your back, causing damage or injury.
- Page 12 Vortex chamber. Or, if the filter is too dirty or in an unusable condition, replace the filter with a new one. NOTE: The Prolux Self-Cleaning Vortex filter only needs to be cleaned when the entire surface of the filter becomes dirty. Due to its highly efficient design the Self-Cleaning Vortex filter is 3x more efficient than standard filters and will have the same amount of airflow whether it’s dirty or clean.
- Page 13 Clean and replace the exhaust HEPA filter 1. Open the exhaust cover by rotating in count clockwise. (Fig 13) 2. Put the exhaust HEPA out of the unit. (Fig 13) 3. Clean the filter, using warm water and allow air-drying completely, and then assembling the filter back into the unit.
-
Page 14: Troubleshooting
Troubleshooting WARNING: Never use a defective appliance. Always switch off the appliance and disconnect it from the outlet or remove the battery before you start to troubleshoot. Fault Possible Cause(s) Solution The vacuum will not turn on. The plug is not connected to the Insert the plug into an electrical electrical wall... - Page 15 This warranty is limited solely to the cost of the repair or replacement of the unit at Prolux’s option. This warranty does not cover normal wear of parts and does not apply to any unit that has been tampered (by unauthorized user) with or used for commercial purposes.
-
Page 16: Environmental Tips
Product Warranty Registration Please follow the link below to register your Prolux product. http://www.proluxcleaners.com/webforms/index/index/id/2/?___store=default To find more information on this product, including warranty info and to contact Prolux Customer Service. Please follow the link below: http://www.proluxcleaners.com/vacuum-cleaners/backpack-vacuums/prolux-2-0-bag-less- backpack-vacuum.html Environmental tips Once any electronic product is no longer functional, it should be disposed of in such a way as to cause minimum environmental impact, in accordance with the regulations of your local authority.
