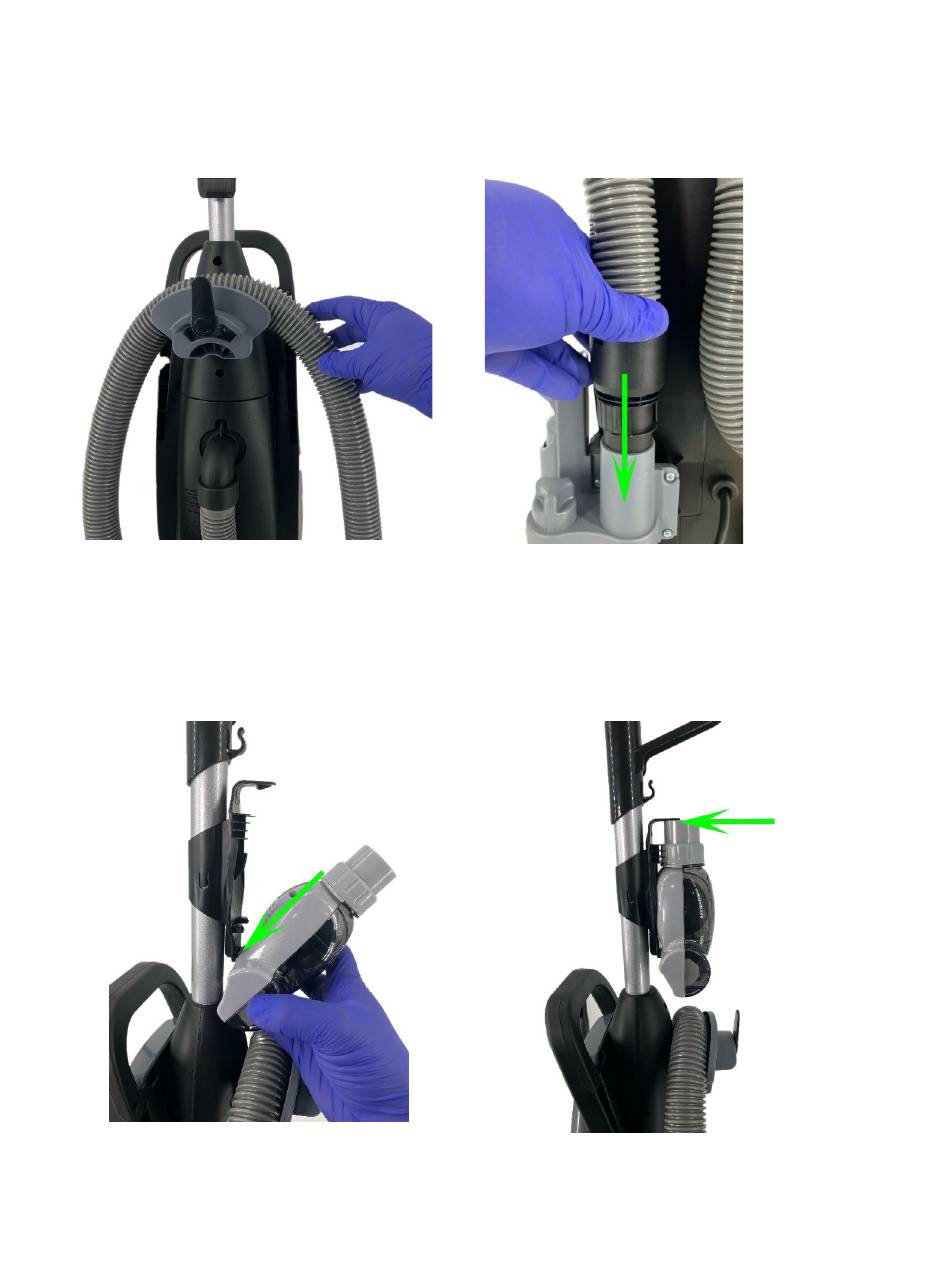

3. Wrap the suction hose around the handle and connect it to the suction intake port. Make sure
that the hose is firmly attached to the port for optimal performance.
4. Attach the Mini Turbo Tool to the handle. First, slide the hook into the slot at the bottom of
the tool, then press the tool into the clip until it snaps into place. To remove, lift up on the
clip and pull the tool off.
10
