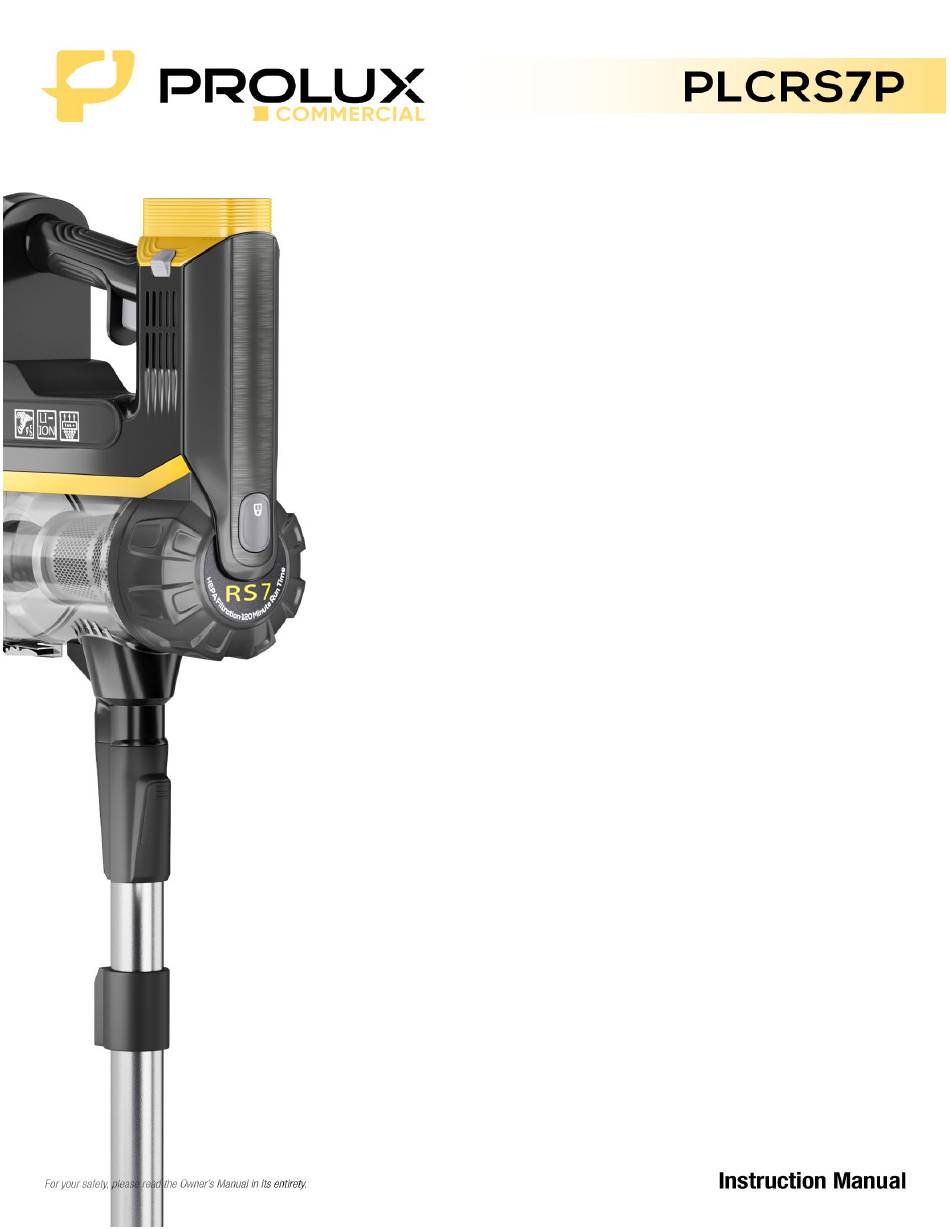

Prolux PLCRS7P Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PLCRS7P and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Prolux PLCRS7P

Summary of Contents for Prolux PLCRS7P

  • Page 2 Congratulations on the purchase of your new Prolux PLCRS7P Vacuum! The PLCRS7P was made with one purpose: to get your cleaning done quickly, so you can spend your time doing what you enjoy. Lightweight, easy to use, and a powerful brush roll to clean...

  • Page 3: Table Of Contents

    Table of Contents Important Safety Instructions ..............4 Quick Assembly ..................6 Specifications .................... 7 Warranty ....................8 Safety ......................9 Overview ....................12 Assembly……………………………………………………………………………………………….13 Operation ....................19 Maintenance ................... 23 Troubleshooting ..................28 Frequently Asked Questions ..............29 Warranty ....................30...

  • Page 4: Important Safety Instructions

    Important Safety Instructions When using an electrical appliance, basic precautions should always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. WARNING –...
  • Page 5 16. Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack. 17. Use appliances only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.

  • Page 6: Specifications

    Specifications Water Lift 102” Suction Power 26 kPa Filtration Type HEPA Charge Time 4 hours Battery Capacity 2500 mAh Warranty 1-Year/350 Hour Motor Warranty Run Times Motor Speed Time (with power head) Time (without power head) 35 minutes 40 minutes Medium (default) 21 minutes 26 minutes...

  • Page 7: Safety

    Safety Read the owner's manual in its entirety before using this product. Failure to do so can result in serious injury or death. Prolux takes no responsibility for damages/injuries due to violations of the following operating instructions. Notices for your safety are specially marked. Always observe these notices to avoid any damage to the appliance.
  • Page 8 11. Do not put any object into the openings of the vacuum. Do not use the vacuum with any openings blocked. Keep openings free of dust, lint, hair, and anything that may reduce airflow. 12. Keep hair, loose clothing, fingers, and all body parts away from openings and moving parts of the vacuum.
  • Page 9 Do not vacuum or clean: • Hair and other parts of the body. They could be sucked in and cause injury. Pieces of clothing (e.g., shoelaces, scarves, etc.). They could be sucked in and cause injury. • • Water or other liquids, especially moisture from carpet cleaning agents. Moisture inside the appliance can lead to short-circuiting.
  • Page 10 1. Aluminum extendable wand 2. PLCRS7P Vacuum Body 3. Wall Mount 4. Duster Brush 5. Crevice tool 6. EBK-250 Electric Powerhead 7. AC Adapter 8. 2 x Batteries...

  • Page 11: Assembly

    Assembly 1. Unpack everything from the box, making sure all the parts are there (see overview image on previous page). 2. Extend the wand. 3. Attach the upper end of the wand to the vacuum.
  • Page 12 4. Attach the power head to the lower section of the wand.
  • Page 13 5. Mount tool caddy to the wall using the included hardware.
  • Page 14 6. Plug the charger in.
  • Page 15 7. Hang tools on the tool caddy.
  • Page 16 8. Hang vacuum on the tool caddy.

  • Page 17: Operation

    Operation The PLCRS7P allows connecting all included attachments to either the end of the extendable wand or directly to the vacuum body (See illustrations below).
  • Page 18 Using the vacuum 1. Assemble the vacuum (see Assembly section). 2. Attach the desired tool to either the vacuum body or the wand. 3. Pull the trigger to turn the vacuum on. 4. Set the desired vacuum speed with the speed selector button on the back of the vacuum. 5.
  • Page 19 Changning the battery...
  • Page 20 Charging the battery The PLCRS7P battery can be charged three different ways. 1) By plugging the charging cord into the wall- mounted tool caddy and hanging the vacuum on the caddy. 2) By plugging the charging cord directly into the vacuum with the battery installed. 3) By removing the battery and charging it separately from the vacuum.

  • Page 21: Maintenance

    Maintenance Emptying the dirt bin Turn the vacuum off. The dirt bin can be emptied with it either connected to the vacuum body or removed from the vacuum body. To empty the dirt bin, simply hold the bin over a trash can and press the dirt bin release button. The dirt bin lid will pop open, and the dirt and dust will remove itself using the amazing power of gravity.
  • Page 22 Changing the filters HEPA filter...
  • Page 23 Exhaust filters...
  • Page 24 Brush Roll Replacement Changing the brush roll is very easy, all you’ll need to do is: Remove the power head from the extendable wand. 2. Unlock the brush roll by turning the knob dial on the side of the head to ‘OPEN’ 3.
  • Page 25 Cleaning the Brush Roll The EBK-250 power head has a built-in brush roll cleaner which helps you remove any built-up hair, string or any other material which has wrapped around the brush roll. To use the cleaning tool simply slide it out of its storage spot on the underside of the head. There is a hook and razor blade end; work the hook under the built-up hair/material, run the blade through, then use your fingers to pull the hair and material off and throw it in the trash.

  • Page 26: Troubleshooting

    Troubleshooting WARNING: Never use a defective appliance. Always switch the appliance off and remove the battery before you start troubleshooting. Fault Possible Cause(s) Solution Remove the battery and re-insert, The battery is not fully seated into ensuring the battery is fully seated the vacuum.

  • Page 27: Frequently Asked Questions

    Frequently Asked Questions 3-12 months depending on use and the state of your home. Most people will need replacement filters around 6 months but if How often should I replace my filters? you live in an exceptionally dusty environment or have multiple shedding furry friends you will want to change them more frequently.
  • Page 28 Under no circumstances will Prolux Cleaners or the seller be liable for any loss, damage, expense, or consequential damage arising in connection with the use or inability to use these products. If a component fails to meet the term of the warranty due to defects in workmanship or materials, Prolux Cleaners will repair or replace the defective component free of charge, including labor according to our flat rate schedule and the Prolux Cleaners Warranty Procedures.
  • Page 29 Product Category Polyethylene Steel Switches, Motors and Structural Body Electrical Parts Labor Foam Parts Paid Machine Years Years Years Years 3yr Switches 3yr or 700hrs (whichever Battery Walk Behind comes first) on the Scrubbers 14” and motor 18” 3yr Electrical Parts 12mo Pro Rated Lithium Ion Battery 1yr Switches...
  • Page 30 2yr Switches Central Vacuums 2yr or 800hrs (whichever comes first) on the motor 5yr Electrical Parts 3yr Switches 3yr or 700hrs (whichever comes first) on the Structural Foam Floor Machines motor 3yr Electrical Parts 1yr Switches Commercial Floor 2yr or 900hrs (whichever Scrubber comes first) on the 13”/15”/17”/20”...
  • Page 31 All repair times are subject to the flat rate schedule enclosed in this document. If any operation is not covered in this flat rate schedule, Prolux Cleaners will determine a labor rate when a claim is made based on actual repair times by our own service technicians.
  • Page 32 1. Contact the Prolux Cleaners warranty department with the machine information (Serial number, Date of Purchase etc.) 2. If the battery is deemed to be within the warranty period, Prolux Cleaners will arrange a date to inspect and replace (upon inspection approval) the battery with the OEM.

  • Page 33: Warranty

    Freight damage is not covered under the Prolux Cleaners warranty policy. Replacement Parts: Prolux Cleaners will not honor any warranty claims for parts, labor, or travel if the replacement part was not purchased through Prolux Cleaners. Prolux cleaners reserves the right to review or modify the above document at any time without specific written or prior...
