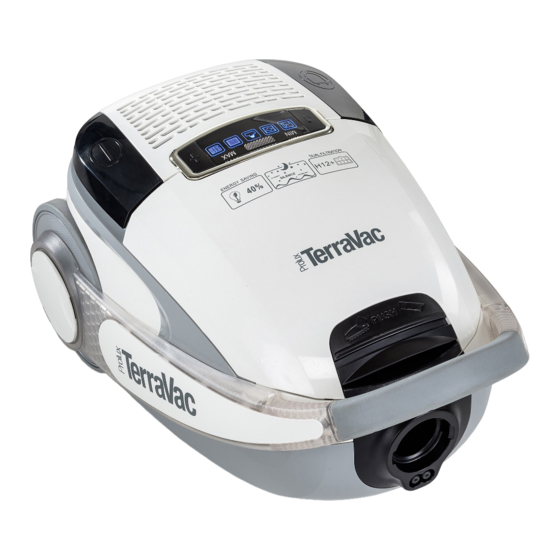

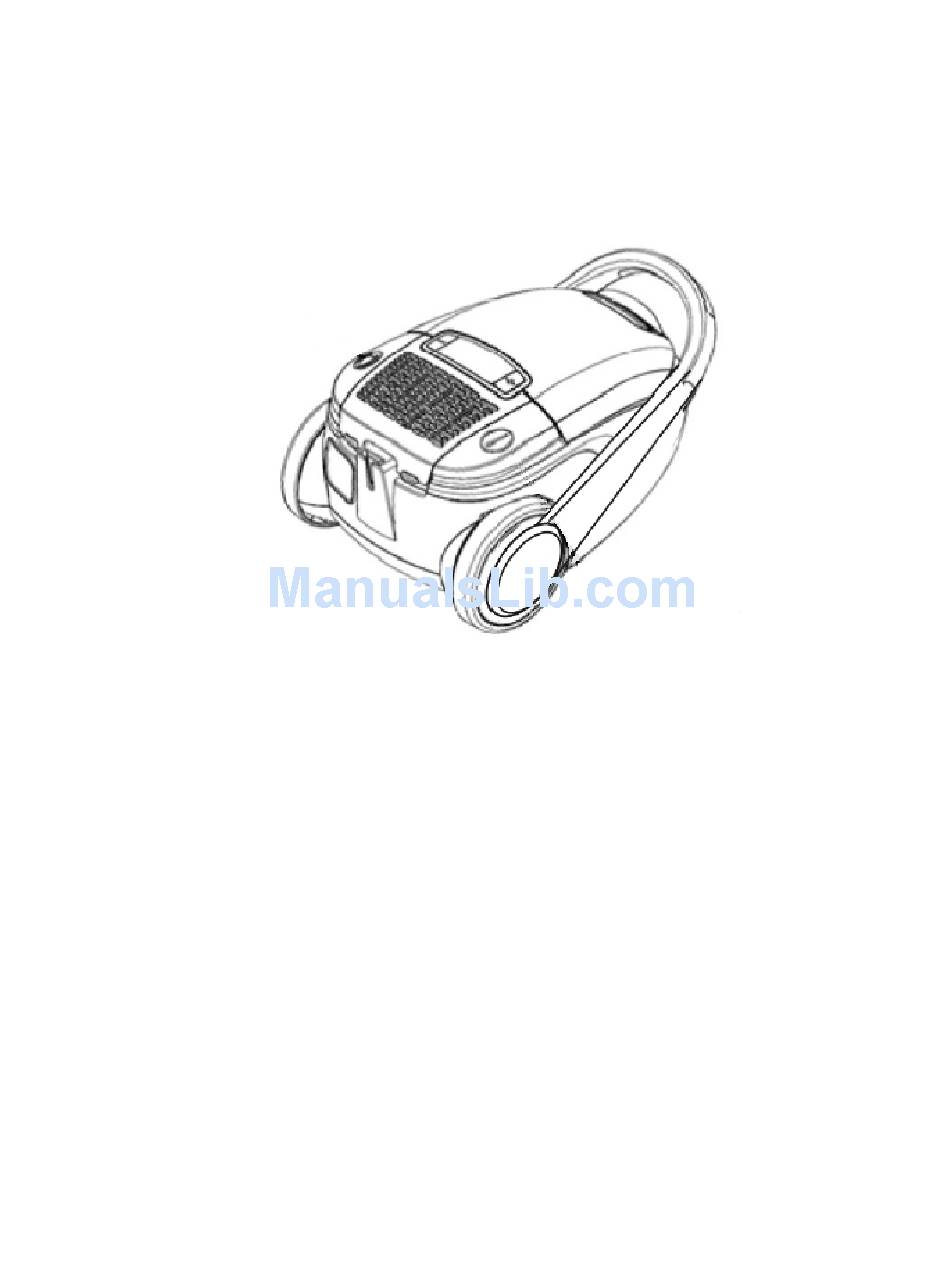

ProLux TerraVac Owners Manual TerraVac- Get your life back! For your safety please read owners manual in its entirety before use.
Page 2
It is lightweight and easy to use, has tons of power for quick cleaning, and has variable speeds for cleaning different surfaces. With the TerraVac you can quickly get your cleaning done and done right. It has a hygienic HEPA exhaust filter which removes microscopic particles and allergens from the air keeping your air clean and dust free.
List of contents Specifications .......................... 3 Safety Precautions ......................4 Unpacking and Assembling ..................5 Unpacking & Assembly ........................5 Using Accessories and Tools ......................6 Operation ..........................8 Vacuum Cleaning ..........................8 Setting the Suction Power ........................9 Switching off and Retracting Power Cord ..................9 Transport and Storage ........................
Keep the operating manual for reference. Include the operating manual if you pass the appliance to third parties. Violations of the operating instructions can lead to severe injuries as well as damages to the appliance. Prolux takes no responsibility for damages due to violations of these operating instructions. The Notices Given Notices for your safety are especially marked.
Cord Connection The vacuum runs on electricity, that means there is always danger of electric shock, so please observe the following; Never touch the plug with wet hands. Always pull directly with the plug. If you want to disconnect the appliance from the outlet. Never pull on the cord, as it might break.
Your vacuum cleaner is now ready for use. Using Accessories & Tools Besides the floor nozzle you just attached, the Prolux TerraVac is also equipped with on board Tools as shown in Figure 5. The combi brush (used for upholstery & dusting) and the crevice nozzle are stored on board under the lid.
Page 7
(Fig. 8) AND the electric power nozzle with spinning brushroll for carpet. (Fig. 9) Fig.
8
Electric Power Nozzle used on Deluxe Prolux TerraVac models Fig.
9
...
WARNING: If the red marking shows on the cord, retract the cord by the pushing the retract button to pull in the cable (Fig. 11/2) up to the yellow mark again. If the cord is pulled past the red mark the cord might break.
1. To set the desired power setting, press the + button or the - button several times until the desired setting lights up on the suction power display. - + button (Fig. 14/2) increases suction power button (Fig. 14/3) reduces suction power Switching Off and Retracting Power Cord ...
Maintenance Changing the Dust Filter Bag Change the dust filter bag at the latest when the electronic dust filter bag change indicator shows "red" or the suction power has decreased. ATTENTION: When leaving your working-area, switch off the appliance and mind the notices, ‘Switching off and retracting power cord.”...
Changing Filters Your vacuum cleaner is equipped with the following filters: -Motor protection filter (Fig. 20/1) Prevents larger particles from destroying the motor in case the dust filter bag is defective. Change as needed or if vacuum overheats or bypass valve opens. -HEPA exhaust filter (Fig.
1. Switch off the vacuum cleaner and remove the dust filter bag as described in section “Changing the Dust Filter Bag," steps 1 thru 4. 2. Remove the filter holder with motor protection filter (Fig 22). Slightly press it down and then pull the filter forwards and out.
Page 14
The power cord is damaged. Replace with a new cord by a service center or professional technician. Suction Power is low. The dust filter bag is full or Empty/clean the dust filter bag. clogged. Nozzle, telescopic tube or suction Remove the obstacle. If hose are clogged.
This warranty is limited solely to the cost of the repair or replacement of the unit at Prolux’s option. This warranty does not cover normal wear of parts and does not apply to any unit that has been tampered (by unauthorized user) with or used for commercial purposes.
