Summary of Contents for Prolux X8 PRO

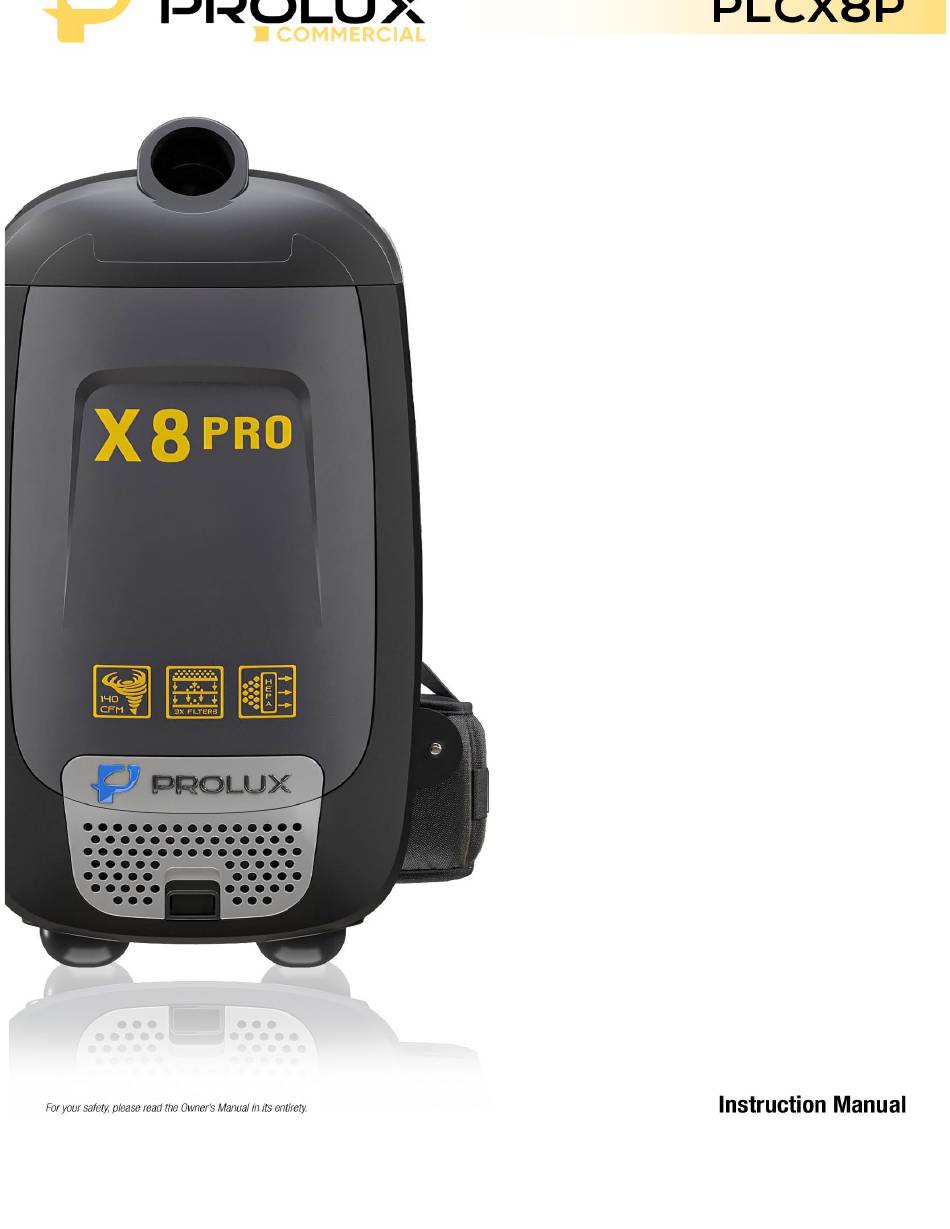

  • Page 2 Congratulations on purchasing your very own Prolux PLCX8P Pro Backpack Vacuum Cleaner. This high-end kit is designed to cut cleaning time in half without breaking the bank. Keep your floors clean, and prolong the life of your flooring in just a few easy steps. Prolux…. Cleaning Reinvented!

  • Page 3: Table Of Contents

    Table of Contents Specifications Safety Precautions Description of Parts Unpacking and Assembling Assembly Operation Using Accessories and Tools Vacuum Cleaning Maintenance Replacing the HEPA Dust Bag Replacing the Cloth Bag and Filters Frequently Asked Questions Troubleshooting Warranty...

  • Page 4: Specifications

    Specifications ● Powerful deep cleaning 10 amp motor with 120 CFM of Airflow (most vacuums have around 80) ● Lightweight - Canister only weighs 10lbs ● Dependable – 3-year/700 hour motor warranty and 5-year body warranty ● 4 Stages of Filtration – HEPA Bags, Cloth Bag, HEPA Filter and Exhaust filter make sure the air leaving the vacuum is as clean as it should be ●...
  • Page 5 IMPORTANT SAFETY INSTRUCTIONS Vacuum Safety Read the owner's manual in its entirety before using this product. Failure to do so can result in serious injury or death. Prolux takes no responsibility for damages/injuries due to violations of the following operating instructions.
  • Page 6 SAFETY CONTINUED 6. Do not pull or carry the vacuum by its power cord, do not use the power cord as a handle, do not close the door on the power cord, or pull the power cord around sharp edges or corners. Do not run the vacuum cleaner over the power cord.
  • Page 7 Do not vacuum or clean: Hair and other parts of the body. They could be sucked in and cause injury. Pieces of Clothing (e, g, shoelaces, scarves, etc.). They could be sucked in and cause injury. Water and other liquids, especially moisture from carpet cleaning agents. Moisture inside the appliance can lead to short-circuiting.

  • Page 8: Description Of Parts

    Description of Parts 1. Main Unit 6. HEPA Bags 2. Hose 7. Squeegee Floor Tool 3. Extendable Wand 8. Mini Turbo Head 4. Floor Tool 9. Duster Brush 5. Tool Adapter 10. Upholstery Tool 11. Crevice Tool...
  • Page 9 1. Breathable Cushioned Straps 9. Canister Lid 2a-b. Lid Latches 10. Chest Support Adjustment 11. Chest Clip Adjustment 3. Suction Port 12. Shoulder Strap Adjustment 4. Main Unit 13. Waist Support Clip 5. Exhaust Filter Cover 14. Waist Support Adjustment 6.
  • Page 10 ASSEMBLING YOUR VACUUM Once all items have been removed from the shipping box first INSERT THE HEPA DUST BAG BEFORE USING Important: For the best results do not use the vacuum without all filters, cloth dust bag, and the HEPA dust bag in place. NOTE: Always remove the power plug from the wall outlet before assembling or removing accessories NOTE: This model can be used with the cloth dust bag only, however it is not recommended and...
  • Page 11 ATTACHING THE FLEXIBLE HOSE & TELESCOPIC WAND TO THE VACUUM NOTE: The flexible hose should be connected before strapping the unit on. 1. To connect the flexible hose to the unit, slide the hose connector into the air inlet (Fig 1). 2.
  • Page 12 Fig 2 Fig 3...
  • Page 13 ● CARPET/FLOOR BRUSH PLCX8P The Prolux includes a specially designed floor tool that can be used on any surface without switching attachments. Easily transition between high pile carpets, low pile carpets, and hard floor surfaces. (Fig 4) HARDFLOOR BRUSH ●...
  • Page 14 CONNECTING THE ATTACHMENTS TO YOUR WAND NOTE: When using the Duster, Crevice, and Upholstery Tool, make sure to use the adapter provided with your Backpack Vacuum Cleaner. Connecting the tools to your telescopic wand is quick and easy. The tools use a Friction Fit Connection which means you push the tool on to the wand (or adapter if applicable) and twist in either direction.
  • Page 15 When vacuuming with your Prolux PLCX8P, you may vacuum using the standard forward and backwards vacuuming motion as you would with standard vacuum cleaners. However, because of the new Prolux PLCX8P floor tool design, you can vacuum an area by vacuuming in half circle motions and vacuum the same area twice as fast.

  • Page 16: Vacuum Cleaning

    VACUUM CLEANING 1. Ensure all bags and filters have been installed prior to using the vacuum. 2. Connect the hose to top lid assuring you have pressed the friction fit hose firmly into place. 3. Correctly place shoulder straps on each shoulder and secure the waistband with hook and loop strips.
  • Page 17 Removing & Replacing HEPA Dust Bag Important: For best performance DO NOT use the vacuum without all filters, cloth dust bag, or without the HEPA dust bag in place. 1. To remove the HEPA dust bag, press on the canister lid latches on each side of the unit to unlock (Fig 1) and lift the canister lid.
  • Page 18 ● Cleaning the Cloth Dust Bag Used with the HEPA Bag: 1. Remove the cloth dust bag by grabbing the top lip of the bag and lifting upward and out of the vacuum. Shake out vigorously outdoors over a garbage receptacle until there is no more dust. Blowing the bag out using compressed air also works well.

  • Page 19: Frequently Asked Questions

    You may also use compressed air at a low pressure. 4. Can I use an electric powerhead with this model? Yes. It can be purchased separately at: https://proluxcleaners.com/products/prolux- x8-backpack-electric-powerhead-kit 5. How often should I replace the vacuum's filters? 3-12 months depending on use and the state of your home.

  • Page 20: Troubleshooting

    Troubleshooting WARNING: Never use a defective appliance. Always switch off the appliance and disconnect it from the outlet or remove the battery before you start to troubleshoot. Fault Possible Cause(s) Solution The vacuum will not turn on. The plug is not connected to the Insert the plug into an electrical electrical wall outlet or the wall outlet and flip the “on/off”...
  • Page 21 If a component fails to meet the term of the warranty due to defects in workmanship or materials, Prolux Cleaners will repair or replace the defective component free of charge, including labor according to our flat rate schedule and the Prolux Cleaners Warranty Procedures.
  • Page 22 1yr Switches 2yr or 500hrs Upright Vacuums (whichever comes first) on the motor 1yr Electrical Parts 2yr Switches 2yr or 500hrs Garage Vacuums (whichever comes first) on the motor 5yr Electrical Parts 2yr Switches 2yr or 500hrs Wet Dry Vacuums (whichever comes first) on the motor 2yr Electrical Parts...
  • Page 23 If any operation is not covered in this flat rate schedule, Prolux Cleaners will determine a labor rate when a claim is made based on actual repair times by our own service technicians.
  • Page 24 1. Contact the Prolux Cleaners warranty department with the machine information (Serial number, Date of Purchase etc.) 2. If the battery is deemed to be within the warranty period, Prolux Cleaners will arrange a date to inspect and replace (upon inspection approval) the battery with the OEM.

  • Page 25: Warranty

    Freight damage is not covered under the Prolux Cleaners warranty policy. Replacement Parts: Prolux Cleaners will not honor any warranty claims for parts, labor, or travel if the replacement part was not purchased through Prolux Cleaners. Prolux cleaners reserves the right to review or modify the above document at any time without specific written...
