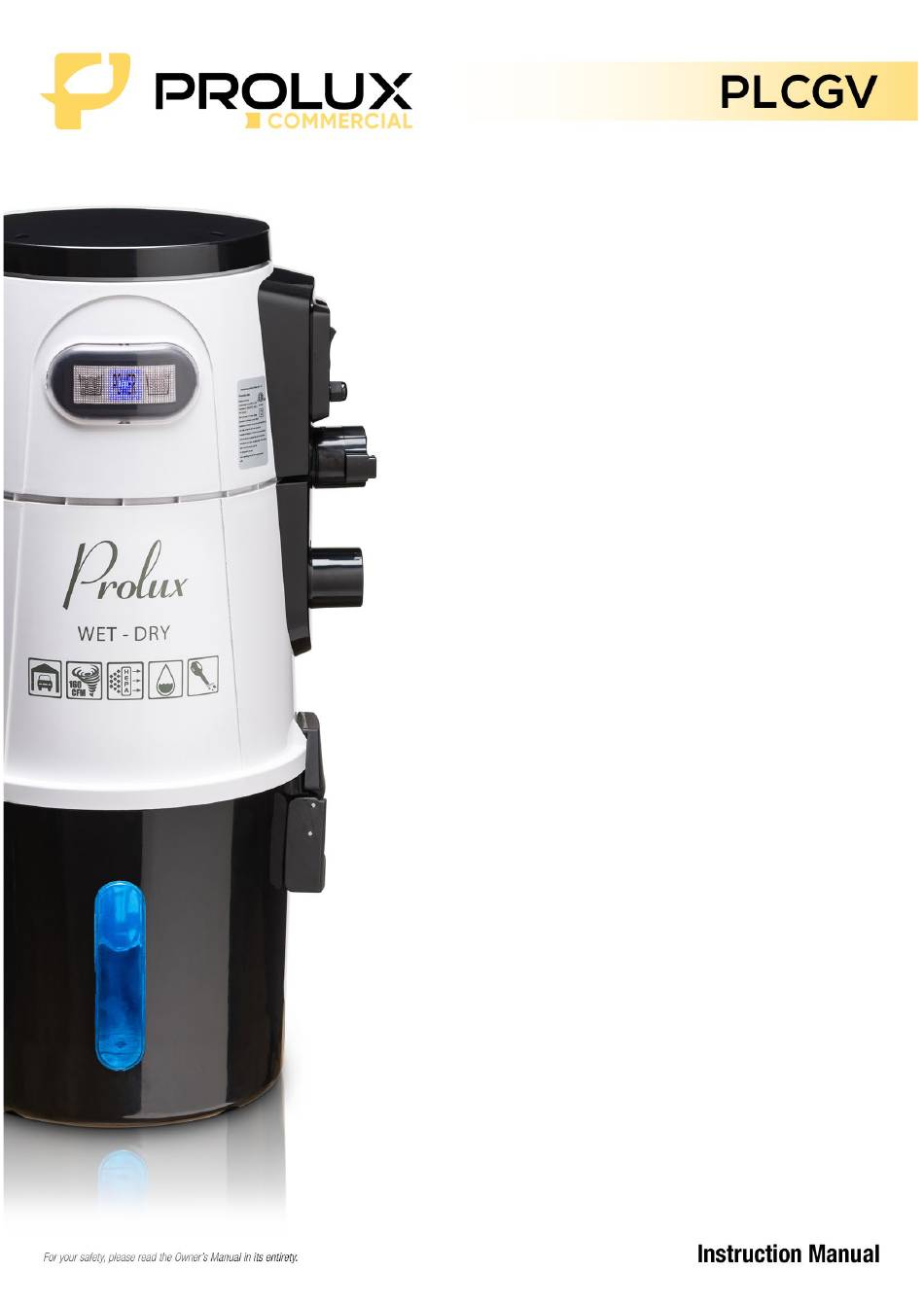

Prolux PLCGV Instruction Manual
  1. Manuals
  2. Brands
  3. Prolux Manuals
  4. Vacuum Cleaner
  5. PLCGV
  6. Instruction manual

Prolux PLCGV Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PLCGV and is the answer not in the manual?

Questions and answers

Related Manuals for Prolux PLCGV

Summary of Contents for Prolux PLCGV

  • Page 2: Table Of Contents

    Technical Data Warranty Information Congratulations on the purchase of your Prolux PLCGV Vacuum! The Prolux PLCGV is attractive, powerful and makes your life easier. • Powerful – an amazing 107 cubic feet-per-minute of air flow • 2-Year/500 hour Motor Warranty •...

  • Page 3: Safety Instructions

    • Do not use with damaged cord or plug. If appliance is not working as it should, has been dropped, damaged, left outdoors, or dropped into water, take it to a Professional Vacuum Service Center or Prolux Authorized Vacuum Service Dealer.
  • Page 4 • Keep hair, loose clothing, fingers, and all parts of body away from the opening and moving parts. Save these instructions! WARNING Operate cleaning system only at voltage specified on power unit. This system is intended for residential use. WARNING To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other).

  • Page 5: Included Parts

    Included Accessories & Parts 11. 32ft Flexible Crush Proof Hose 19. Upholstery Tool 12. Hose Holder 20. Extraction Shampooer Suction Tool 13. Extension Wands 21. 3 Sizes of Detailing & Inflator Tools 14. Accessory Tool Caddy 22. Long Detailing Precision Blower Tool 15.

  • Page 6: Assembly Instructions

    Assembly Instructions 1. Remove the dirt tank by pulling up on both handles to unlatch. Lift upper half of unit to remove. 2. Remove all accessories and parts stored in the bottom of the tank prior to use. 3. If the round funnel comes out of dirt tank, set back inside the dirt tank before reassembling.
  • Page 7 Mounting on concrete wall (fasteners included) You will need: (4) 3/8” x 2-1/4” concrete sleeve anchors. holes 1. Drill a 3/8” x 1-3/4” hole with a masonry drill bit. 2. Insert a bolt and anchor sleeve into the hole. 3. Align the bracket over the hole and mark the remaining hole locations using the (4) holes of the mounting bracket.

  • Page 8: Operating Instructions

    Hanging the Unit Hang your unit by putting the unit slots to the mounting bracket. Note: Make sure the unit fits securely on the mounting bracket and won’t fall down. Operating Instructions Wet/dry vacuuming mode 1. Plug in unit and locate the hose connector into the air inlet. See picture ‘A’ below.
  • Page 9 ① Empty the dust canister (See “Unit Cleaning” below) Solution: ② Clean the HEPA filter and cloth filter (See “Unit Cleaning” below) The right indicator turns yellow when airflow is restricted, which can affect the “pick up” performance of the unit. Therefore, it is suitable to clean the dust canister and the filter regularly (every 15 to 30 days).
  • Page 10 problem was because the copper pole was dirty and choked. The appliance should now be ok. If not, there are other problems and it should be sent to repair. (See picture A) Vacuuming Liquids: a. After vacuuming liquids, keep the appliance running up to 3 minutes. Also, keep tubes on to eliminate any liquid spills.

  • Page 11: Using The Tools

    2) A temperature protection device has been installed. When the temperatures exceed the rated limit, it will power off for protection. If this happens, clean filters and wait 30 minutes before reusing. 3) In the event of a clogged or full dirt tank, the yellow light will turn on indicating the dirt tank and filter need cleaning.
  • Page 12 Auto Clean & Inflating: Water Extraction Suction tool. Precision blower tool for detailing Small, medium and large detailing and inflating tools. TOOL USE 11. 32ft Flexible Crush-Proof Hose – Connects to the vacuum on suction side or blow side. 12. Hose Holder – 32 ft hose can be neatly stored here. 13.
  • Page 13 HOW TO SHAMPOO UPHOLSTERY You may shampoo on upholstery surfaces (like upholstery seats in your car--follow your car’s manufacturer guidelines for shampooing) with the Prolux PLCGV vacuum by following the instructions below: 1. Attach the hose to the blow or exhaust side of the vacuum.

  • Page 14: Maintenance

    Cleaning and Maintenance Unit cleaning: Follow the steps below to get your HEPA filter, cloth filter and copper probe poles cleaned. A. Remove the B. Take out the dirt dust bucket tank and empty it. C. Unscrew and take out the cloth filter D.
  • Page 15 G: Clean the two copper F: Wash the HEPA filter and cloth filter. poles of the probe Filter Maintenance: From ordinary use the HEPA should be replaced once every year or when yellow light comes on (and dirt bin is clean). Replacing the HEPA filter does improve suction performance.

  • Page 16: Troubleshooting

    Troubleshooting 1) Limited suction power: If you find the suction power is limited or not working to capacity, follow the steps below to fix: a. First check the dust tank. Clean the filter and empty the dust tank. b. After cleaning, if problem persist check for clogs. c.

  • Page 17: Warranty Information

    If a component fails to meet the term of the warranty due to defects in workmanship or materials, Prolux Cleaners will repair or replace the defective component free of charge, including labor according to our flat rate schedule and the Prolux Cleaners Warranty Procedures.
  • Page 18 Product Category Polyethylene Steel Switches, Motors and Structural Body Electrical Parts Labor Foam Parts Paid Machine Years Years Years Years 3yr Switches 3yr or 700hrs Battery Walk Behind (whichever comes Scrubbers 14” and first) on the motor 18” 3yr Electrical Parts 12mo Pro Rated Lithium Ion Battery 1yr Switches...
  • Page 19 All repair times are subject to the flat rate schedule enclosed in this document. If any operation is not covered in this flat rate schedule, Prolux Cleaners will determine a labor rate when a claim is made based on actual repair times by our own service technicians.
  • Page 20 Travel allowance charges are covered for 180 days from date of purchase to the original end-user for all battery equipment Prolux Cleaners will pay $50.00 per hour to a maximum of 2 hours. Travel allowance for other products is not covered under the warranty policy. It is the purchasers’ responsibility to bring equipment to the dealer for warranty repair.
  • Page 21 Freight damage is not covered under the Prolux Cleaners warranty policy. Replacement Parts: Prolux Cleaners will not honor any warranty claims for parts, labor, or travel if the replacement part was not purchased through Prolux Cleaners. Prolux cleaners reserves the right to review or modify the above document at any time without specific...
