EMS SmartCell Installation Manual page 9
Internal communications module
Hide thumbs
Also See for SmartCell:
- User manual (28 pages) ,
- Quick start manual (36 pages) ,
- Programming manual (80 pages)
Advertisement

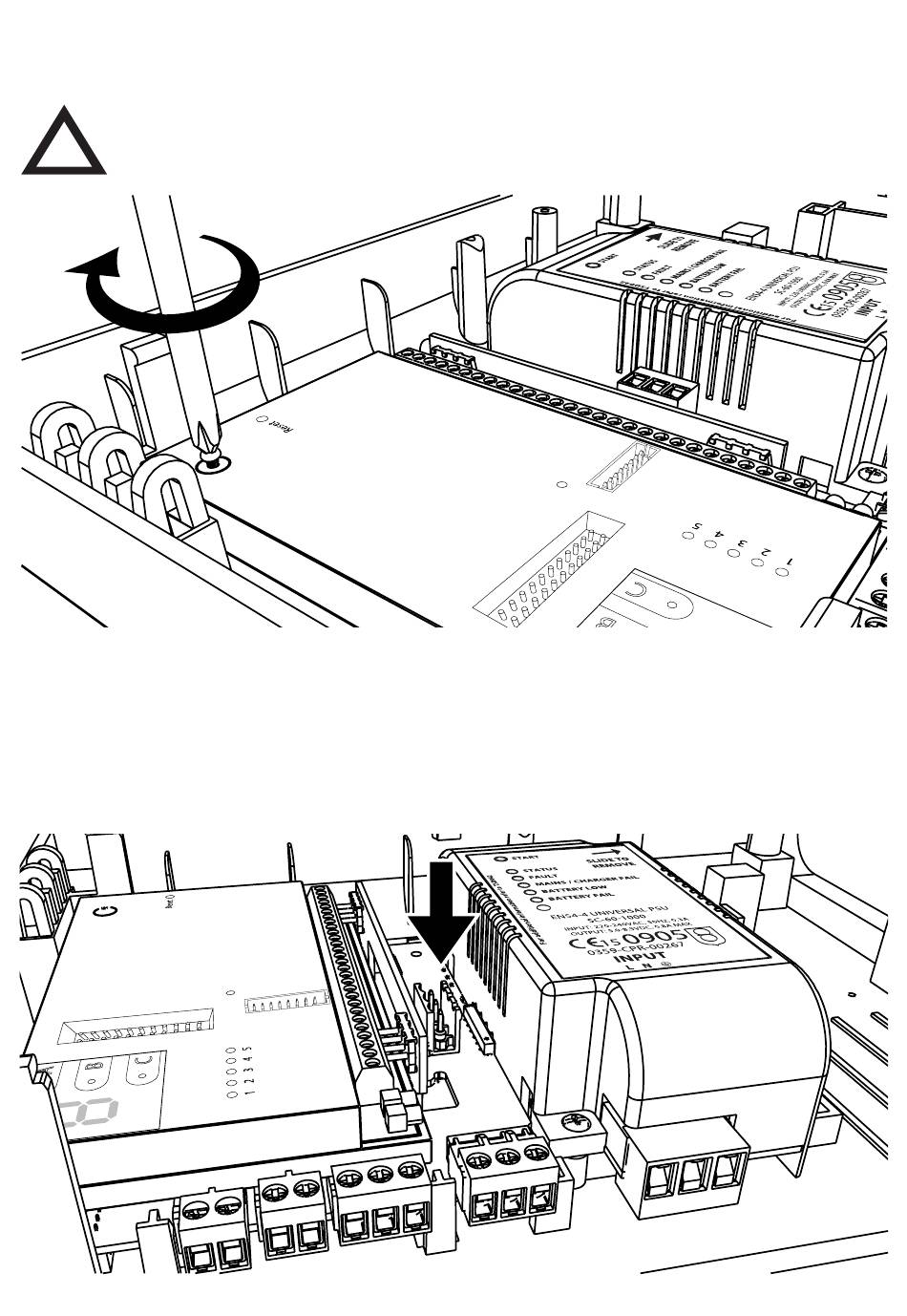

• Secure the communications module in place using the supplied captive screw
as shown.
!
Do not overtighten.
Replace the terminal block
• Carefully replace the terminal block as shown.
©2022 EMS Ltd. All rights reserved.
Page 9 of 16
MK374-0001-99 (Issue 1) 17/08/2022 AJM
