EMS SmartCell Installation Manual page 8

Internal communications module
Hide thumbs Also See for SmartCell:

Advertisement

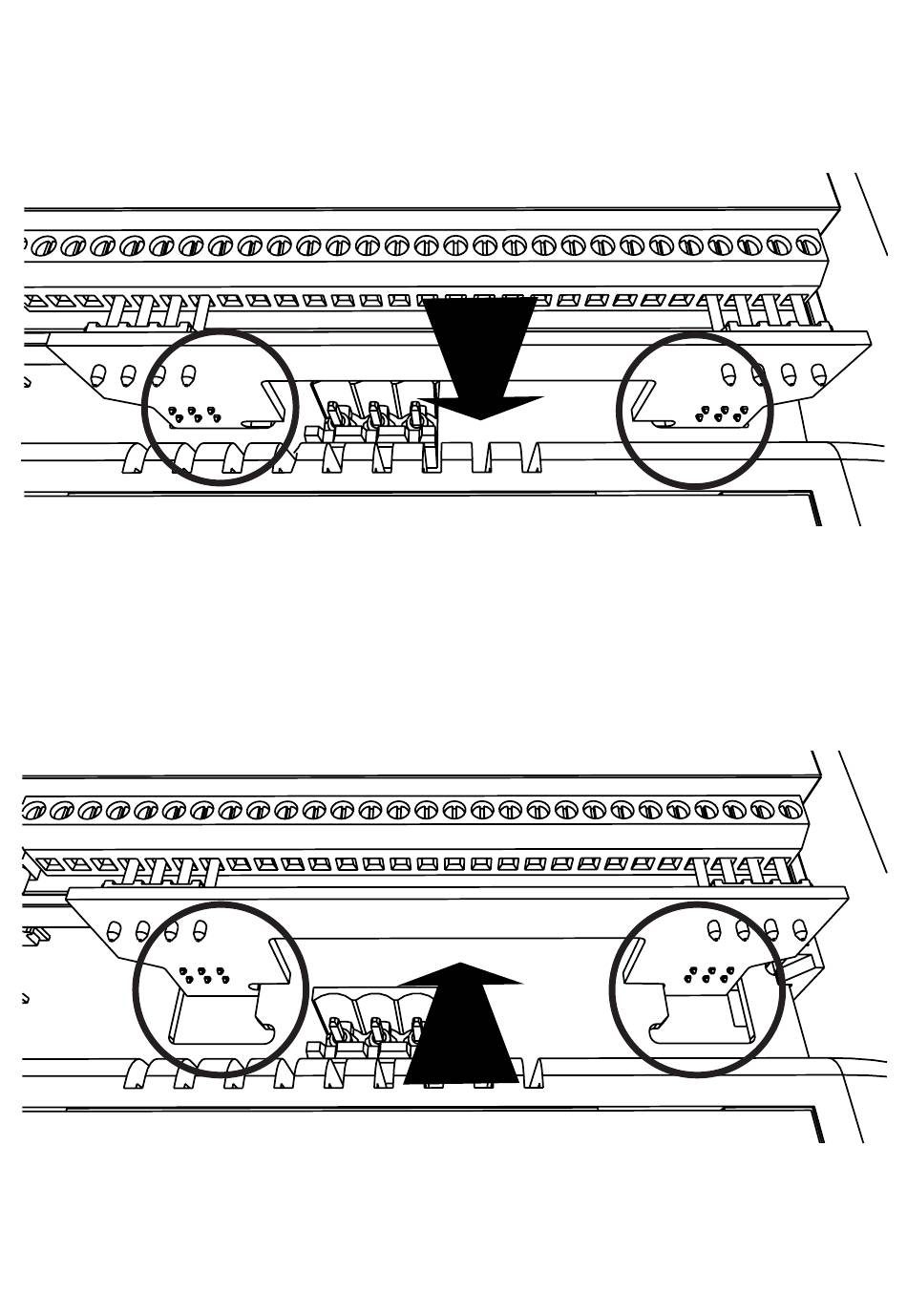

Fit the communications module
• Lower the riser card into the PCB's riser retaining slots as shown.
• Slide the riser card in place as shown.
©2022 EMS Ltd. All rights reserved.
Page 8 of 16
MK374-0001-99 (Issue 1) 17/08/2022 AJM
