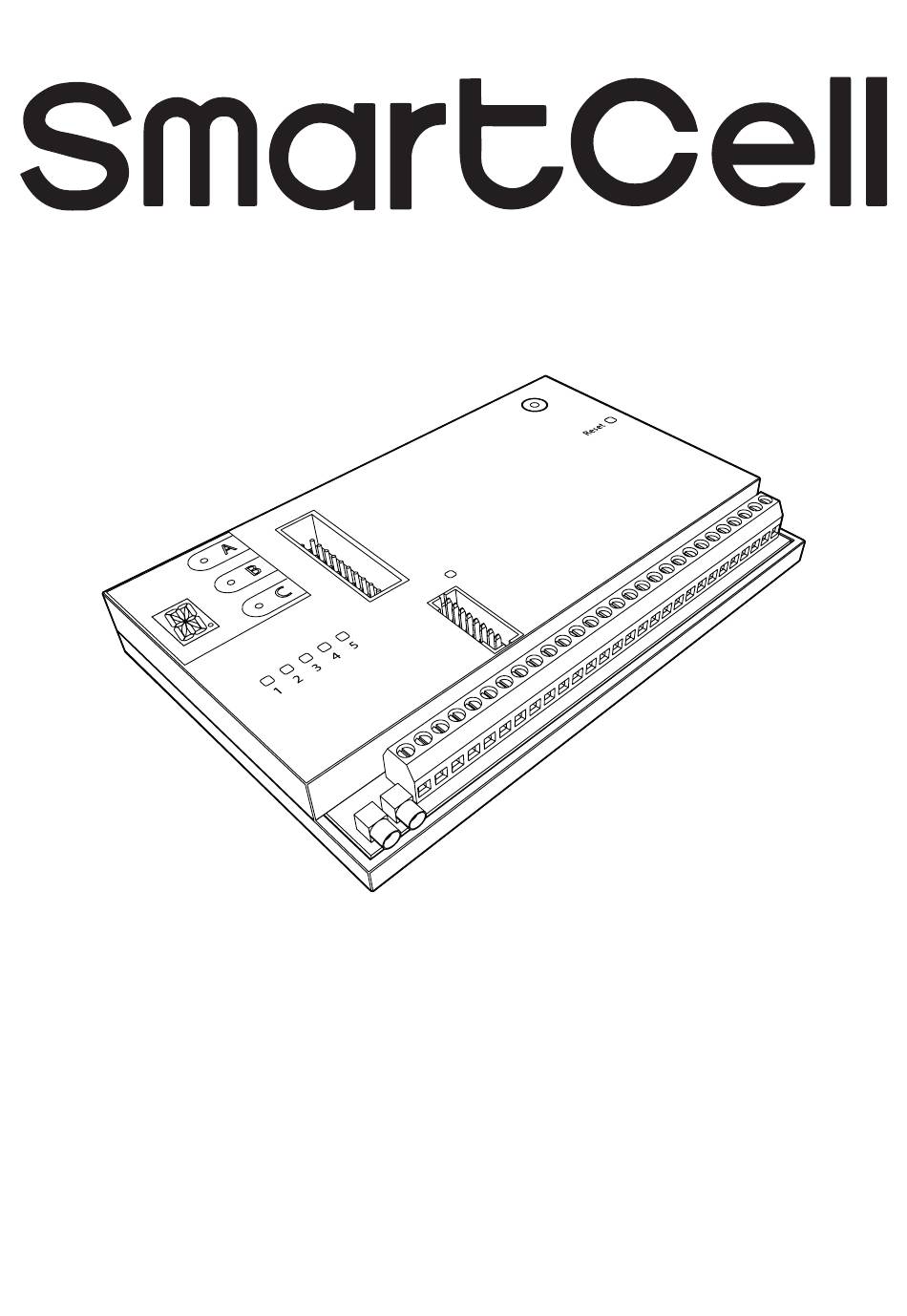

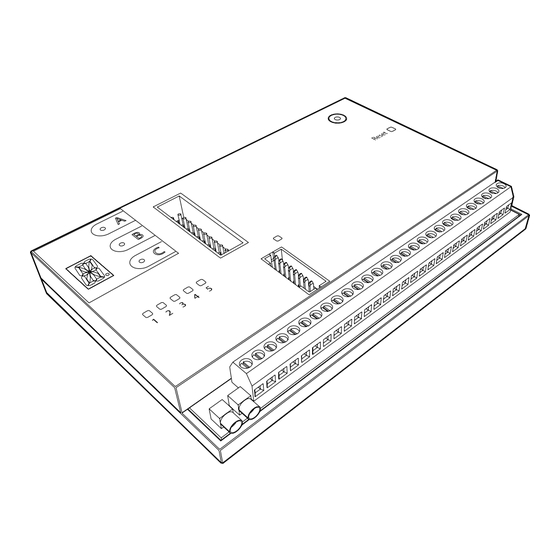

EMS SmartCell Installation Manual

Internal communications module
Hide thumbs Also See for SmartCell:

Advertisement

Quick Links

Download this manual
Internal Communications Module
Installation Guide
©2022 EMS Ltd. All rights reserved.
Page 1 of 16
MK374-0001-99 (Issue 1) 17/08/2022 AJM

Advertisement

loading
Need help?

Need help?

Do you have a question about the SmartCell and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EMS SmartCell

Summary of Contents for EMS SmartCell

  • Page 1 Internal Communications Module Installation Guide ©2022 EMS Ltd. All rights reserved. Page 1 of 16 MK374-0001-99 (Issue 1) 17/08/2022 AJM...

  • Page 2: Table Of Contents

    Ethernet connection Back-up 4G connection Fit the back-up battery Close the control panel Apply power Connect to Smartcell Services Input and output markings Specification Regulatory information ©2022 EMS Ltd. All rights reserved. Page 2 of 16 MK374-0001-99 (Issue 1) 17/08/2022 AJM...

  • Page 3: Part Number And Product Description

    SmartCell control panels containing backboards with riser card retaining slots. See page 8. For previous revisions of SmartCell control panels, the communications module can be connected externally via serial connection. A suitable enclosure must be used. Refer to the SmartCell programming guide (TSD155) for full wiring details.

  • Page 4: Components

    Components Communications module Riser card GSM antenna LAN adapter cable Ethernet cable Captive screw SmartCell Services registration card ©2022 EMS Ltd. All rights reserved. Page 4 of 16 MK374-0001-99 (Issue 1) 17/08/2022 AJM...

  • Page 5: Disconnect The Mains Supply

    ALARM TRANSMITTED FAULT/DISABLED FAULT/DISABLED HEALTHY HEALTHY FUNCTION 1 FUNCTION 1 ALARMS ALARMS FUNCTION 2 FUNCTION 2 SOUND/ SILENCE RESET SILENCE BUZZER SOUND/ SILENCE RESET SILENCE BUZZER ©2022 EMS Ltd. All rights reserved. Page 5 of 16 MK374-0001-99 (Issue 1) 17/08/2022 AJM...

  • Page 6: Remove The Battery

    ENABLE FAULT FAULT INPUT1 INPUT2 FIRE FAULT NC C NO NC C NO Remove the terminal block • Carefully remove the terminal block as shown. ©2022 EMS Ltd. All rights reserved. Page 6 of 16 MK374-0001-99 (Issue 1) 17/08/2022 AJM...

  • Page 7: Connect The Riser Card

    Connect the riser card • Carefully fit the riser card’s pins into the communications module’s terminal connections, ensuring the pins are aligned to the right-hand side as shown. • Ensure all pins are pushed in fully, and tighten the terminal connection’s screws to ensure a firm fixing. ©2022 EMS Ltd. All rights reserved. Page 7 of 16 MK374-0001-99 (Issue 1) 17/08/2022 AJM...

  • Page 8: Fit The Communications Module

    Fit the communications module • Lower the riser card into the PCB’s riser retaining slots as shown. • Slide the riser card in place as shown. ©2022 EMS Ltd. All rights reserved. Page 8 of 16 MK374-0001-99 (Issue 1) 17/08/2022 AJM...

  • Page 9: Replace The Terminal Block

    • Secure the communications module in place using the supplied captive screw as shown. Do not overtighten. Replace the terminal block • Carefully replace the terminal block as shown. ©2022 EMS Ltd. All rights reserved. Page 9 of 16 MK374-0001-99 (Issue 1) 17/08/2022 AJM...

  • Page 10: Ethernet Connection

    SKIP THIS STEP IF USING SINGLE PATH COMMUNICATION ONLY VIA 4G CONNECTION. • The Ethernet conmnection must be made via the LAN adaptor, as shown. Refer to the SmartCell installation guide (TSD120) for cable entry points. ©2022 EMS Ltd. All rights reserved.

  • Page 11: Back-Up 4G Connection

    SILENCE RESET SILENCE BUZZER • Do not coil, crush or shorten the aerial’s cable. Refer to the SmartCell installation guide (TSD120) for cable entry points. ©2022 EMS Ltd. All rights reserved. Page 11 of 16 MK374-0001-99 (Issue 1) 17/08/2022 AJM...

  • Page 12: Fit The Back-Up Battery

    Access COMMUNICATIONS ALARM TRANSMITTED FAULT/DISABLED HEALTHY FUNCTION 1 ALARMS extinguished. FUNCTION 2 SOUND/ SILENCE RESET SILENCE BUZZER POWER • The screen should also display ‘System Normal’. ©2022 EMS Ltd. All rights reserved. Page 12 of 16 MK374-0001-99 (Issue 1) 17/08/2022 AJM...

  • Page 13: Connect To Smartcell Services

    Connect to SmartCell Services • Visit mysmartcell.com to register for SmartCell Services. Refer to the SmartCell programming guide (TSD155) for full details on configuring SmartCell Services. Input and output markings • Internal fitting of the communications module will cover the input and output markings on the back board. Markings are shown below.

  • Page 14: Specification

    Part 21: alarm transmission and fault warning routing equipment. Description of construction product Dual path alarm transmission and fault warning routing equipment for connection with SmartCell fire alarm control panels ©2022 EMS Ltd. All rights reserved. Page 14 of 16 MK374-0001-99 (Issue 1) 17/08/2022 AJM...
  • Page 15 For more information see www.recyclethis.info Dispose of your batteries in an environmentally friendly manner according to your local regulations. ©2022 EMS Ltd. All rights reserved. Page 15 of 16 MK374-0001-99 (Issue 1) 17/08/2022 AJM...
