EMS SmartCell Installation Manual page 7
Internal communications module
Hide thumbs
Also See for SmartCell:
- User manual (28 pages) ,
- Quick start manual (36 pages) ,
- Programming manual (80 pages)
Advertisement

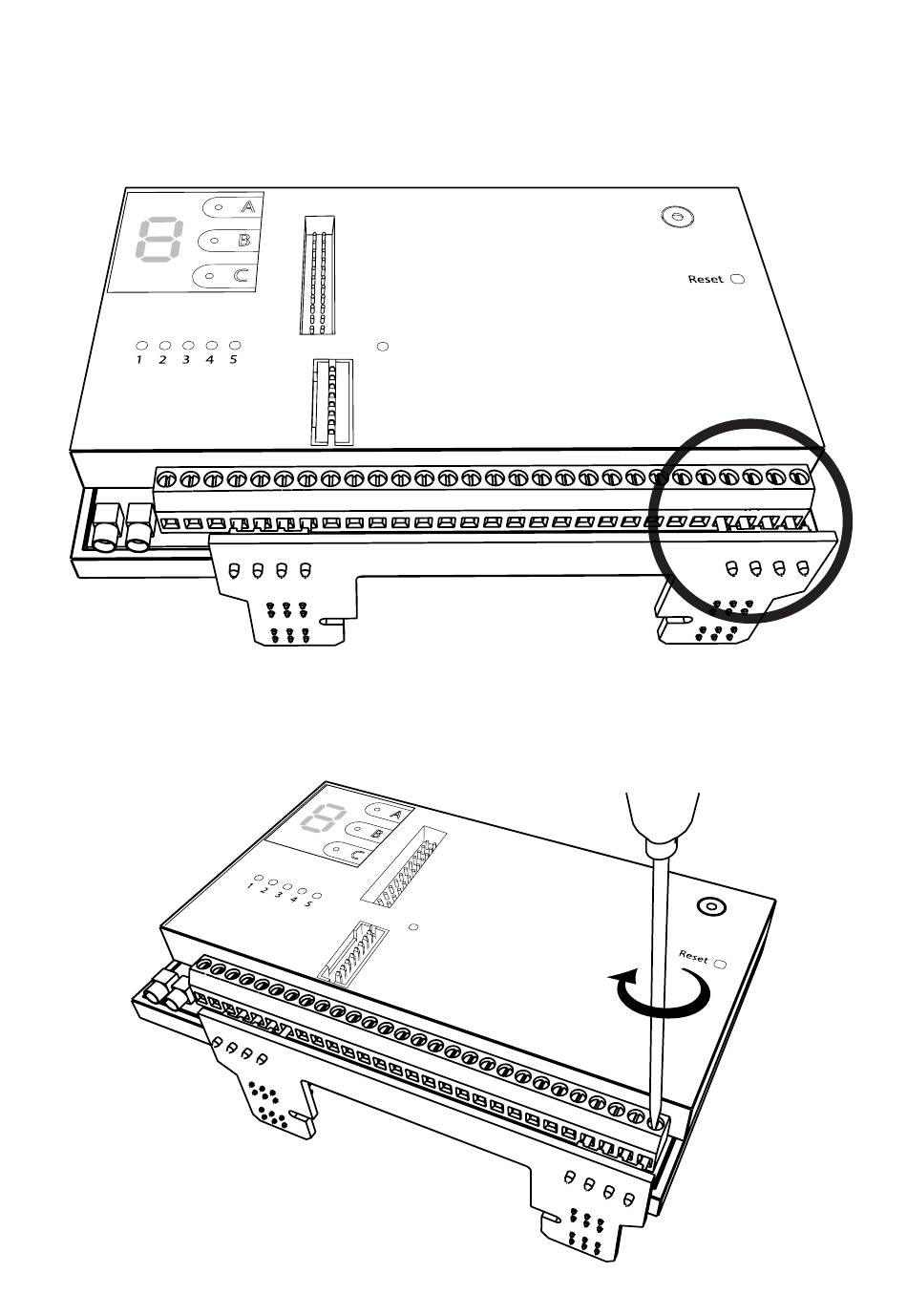

Connect the riser card
• Carefully fit the riser card's pins into the communications module's terminal
connections, ensuring the pins are aligned to the right-hand side as shown.
• Ensure all pins are pushed in fully, and tighten the terminal connection's
screws to ensure a firm fixing.
©2022 EMS Ltd. All rights reserved.
Page 7 of 16
MK374-0001-99 (Issue 1) 17/08/2022 AJM
