T2AGK75F12(D)V: Configuration of AMAG M4000 Modules:
1. Align the AMAG M4000 modules on the backplane to match the boards to the holes in the backplane
2. Push 5/16" pan head screws (provided) from the back of the backplane through the holes that match the pattern for AMAG M4000 modules.
Attach spacers to the screws (Fig. 6a, pg. 7).
3. Mount AMAG M4000 modules to spacers utilizing pan head screws (provided) (Fig. 6a, pg. 7).
Note: AMAG M4000 modules have one (1) screen. Please make sure that they are mounted correctly, as shown in Fig. 6 below.
4. Fasten TAM2 backplane to Trove2 enclosure utilizing hardware (provided).

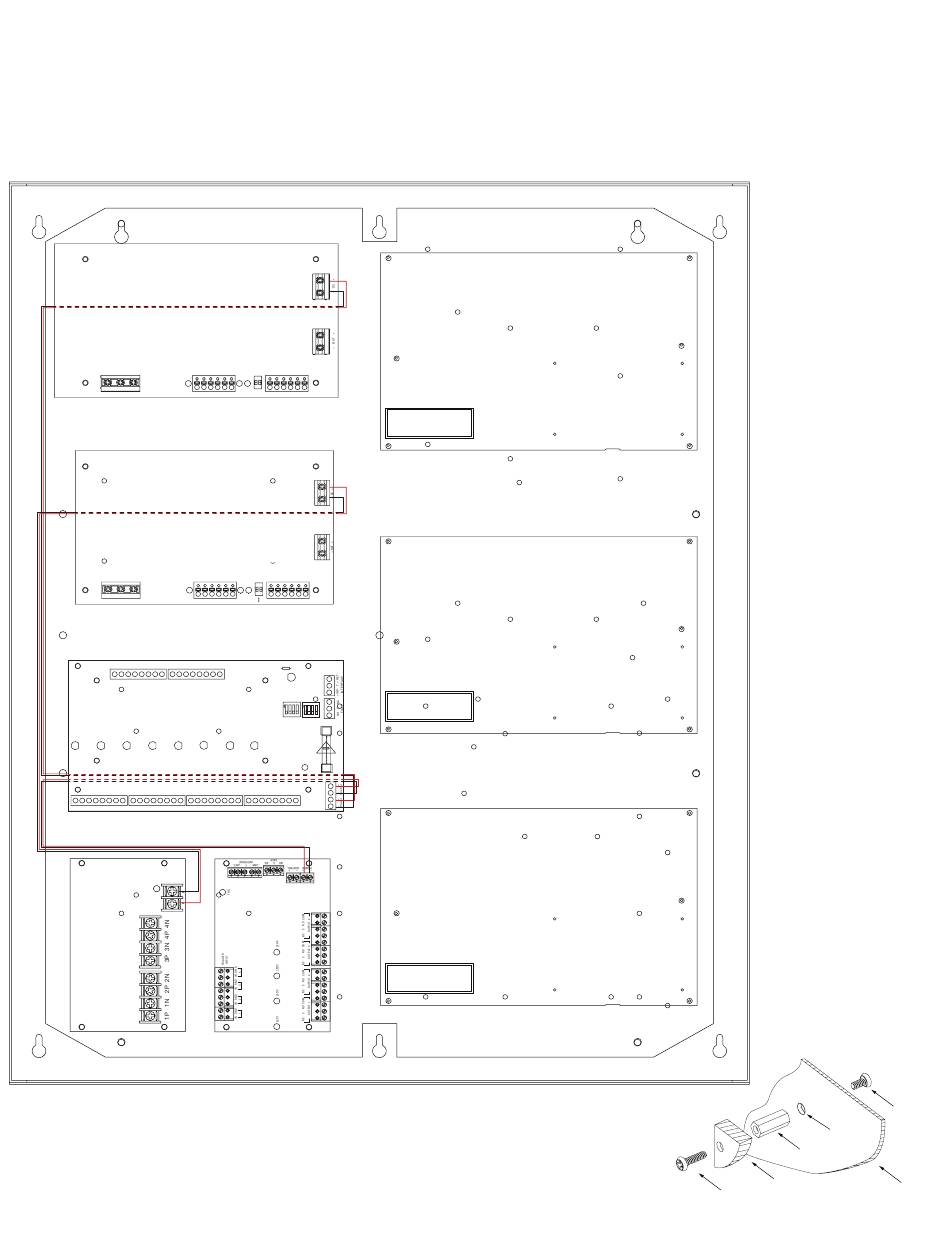

Fig. 6 - T2AGK75F12(D)V Configuration
Altronix eFlow104NB
Altronix eFlow104NBV
L G N
Altronix eFlow102NBV
Altronix eFlow102NB
L G N
IN GND IN GND IN GND IN GND IN GND IN GND IN GND IN GND
5
1 2 3 4
Altronix ACM8(CB)
NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM
OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4
Altronix
PD4UL(CB)
Trove AMAG M4000 Kits Installation Guide
AC1 AC DC
1 min enable
NC C NO NC C NO TRIGGER EOL NO GND
2 hr disable + AUX -
SUPERVISED
AC FAIL BAT FAIL RESET
FACP
TRIGGER
TRG
INPUT
6 7 8
O N O N O N O N
1 1 2 2 3 3 4 4 1 1 2 2 3 3 4 4
MAIN
10A 250V
OUTPUT 5 OUTPUT 6 OUTPUT 7 OUTPUT 8
Altronix
ACM4(CB)
AMAG M4000
SCREEN
AMAG M4000
SCREEN
AMAG M4000
SCREEN
Mounting
Hole
Spacer
Access Control
Backplane
Pan Head
Module
Screw
Fig. 6a
Pan Head
Screw
