T2AGK7F8S(D)V: Configuration of AMAG M4000 Modules:
1. Align the AMAG M4000 modules on the backplane to match the boards to the holes in the backplane
2. Push 5/16" pan head screws (provided) from the back of the backplane through the holes that match the pattern for AMAG M4000 modules.
Attach spacers to the screws (Fig. 3a, pg. 4).
3. Mount AMAG M4000 modules to spacers utilizing pan head screws (provided) (Fig. 3a, pg. 4).
Note: AMAG M4000 modules have one (1) screen. Please make sure that they are mounted correctly, as shown in Fig. 3 below.
4. Fasten TAM2 backplane to Trove2 enclosure utilizing hardware (provided).

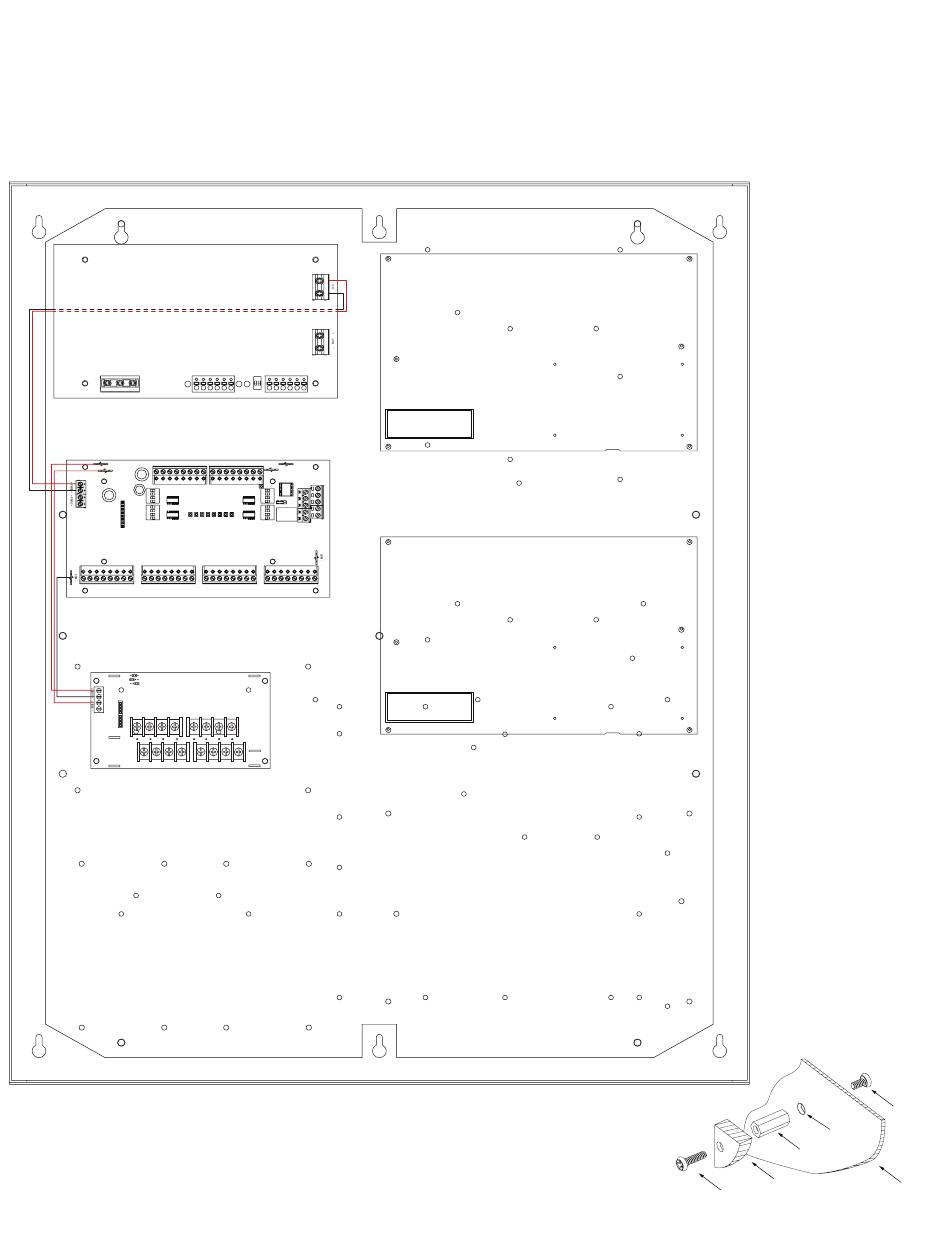

Fig. 3 - T2AGK7F8S(D)V Configuration
Altronix eFlow104NBV
Altronix eFlow104NB
L G N
PWR1 +
PWR2 +
Altronix ACMS8(CB)
Altronix VR6 is mounted under ACMS8(CB)
PWR1 + OFF
IN1
IN2
Altronix PDS8(CB)
P
OUT1 OUT2 OUT3 OUT4
COM --
N
PWR2 +
1 2 3 4
Common Power Outputs (NEG)
- 4 -
PWR1 +
PWR2 +
PWR1 +
OUT5 OUT6 OUT7 OUT8
COM --
PWR2 +
5 6 7 8
AMAG M4000
SCREEN
AMAG M4000
SCREEN
Mounting
Hole
Spacer
Access Control
Backplane
Pan Head
Module
Screw
Trove AMAG M4000 Kits Installation Guide
Fig. 3a
Pan Head
Screw
