Altronix TROVE T2AGK3F8V Installation Manual page 3

1. Align the AMAG M4000 modules on the backplane to match the boards to the holes in the backplane
2. Push 5/16" pan head screws (provided) from the back of the backplane through the holes that match the pattern for AMAG M4000 modules.
Attach spacers to the screws (Fig. 2a, pg. 3).
3. Mount AMAG M4000 modules to spacers utilizing pan head screws (provided) (Fig. 2a, pg. 3).
Note: AMAG M4000 modules have one (1) screen. Please make sure that they are mounted correctly, as shown in Fig. 2 below.
4. Fasten TAM2 backplane to Trove2 enclosure utilizing hardware (provided).

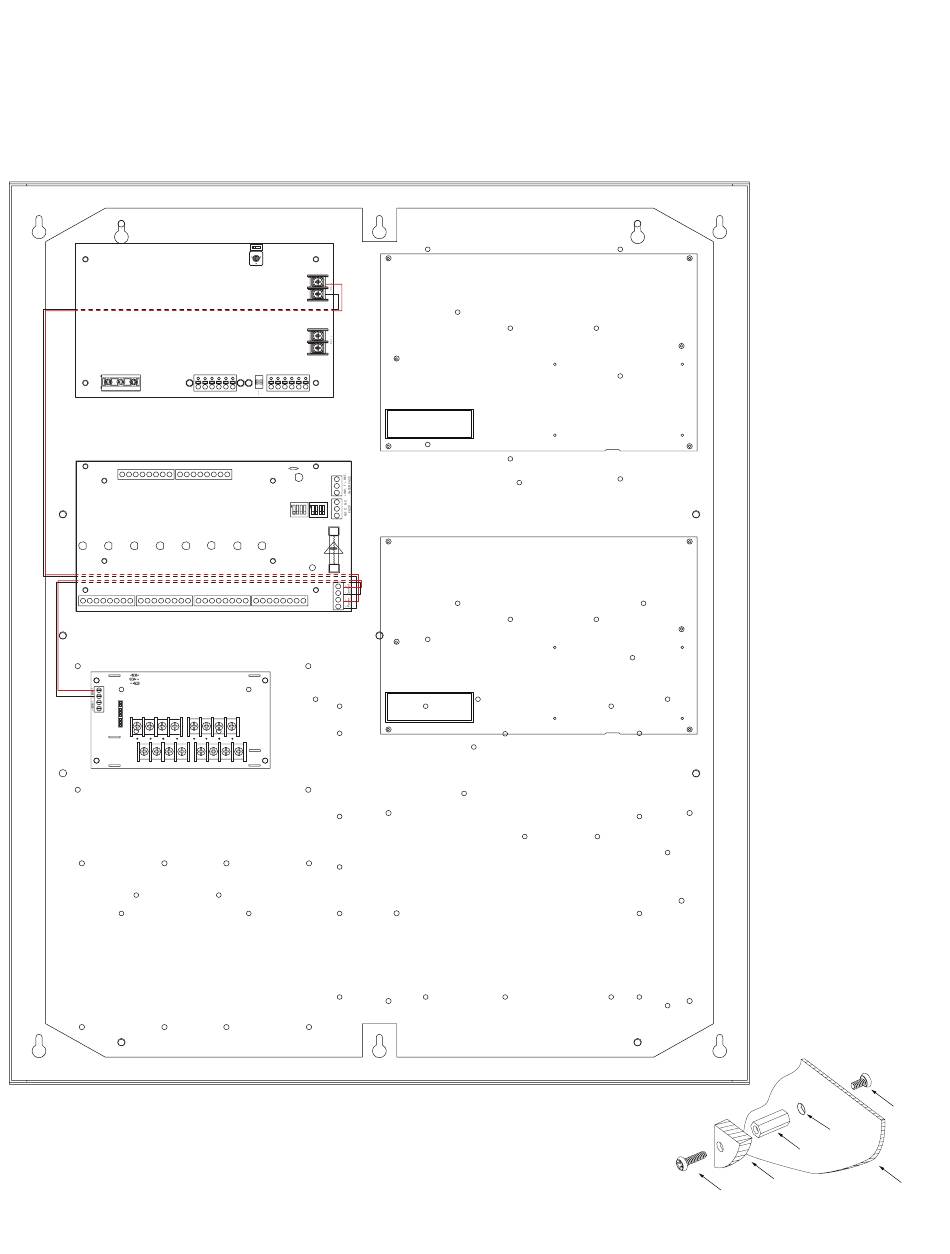

Fig. 2 - T2AGK3F8(D)V Configuration
Altronix eFlow6NB
Altronix eFlow6NBV
L G N
IN GND IN GND IN GND IN GND IN GND IN GND IN GND IN GND
5
1 2 3 4
Altronix ACM8(CB)
NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM NC C NO COM
OUTPUT 1 OUTPUT 2 OUTPUT 3 OUTPUT 4
PWR1 + OFF
IN1 Fuse
IN1
IN2
Altronix PDS8(CB)
P
OUT1 OUT2 OUT3 OUT4
COM (--- )
N
PWR2 +
1 2 3 4
Common Power Outputs (NEG)
Altronix VR6 is mounted
under PDS8(CB)
Trove AMAG M4000 Kits Installation Guide
T2AGK3F8(D)V: Configuration of AMAG M4000 Modules:
OFF - 24V
ON - 12V
AC1 AC DC
NC C NO NC C NO
TRIGGER EOL NO GND +AUX-
AC FAIL BAT FAIL SUPERVISED RESET
FACP
TRIGGER
TRG
INPUT
6 7 8
O N O N O N O N
1 1 2 2 3 3 4 4 1 1 2 2 3 3 4 4
MAIN
10A 250V
OUTPUT 5 OUTPUT 6 OUTPUT 7 OUTPUT 8
PWR1 +
OUT5 OUT6 OUT7 OUT8
COM (--- )
PWR2 +
5 6 7 8
AMAG M4000
SCREEN
AMAG M4000
SCREEN
Mounting
Hole
Spacer
Access Control
Backplane
Pan Head
Module
Screw
Fig. 2a
Pan Head
Screw
- 3 -
