User Guide
KBox B-203-RPL
Preliminary User Guide Rev. 0.2
Doc. ID 1075-0133
www.kontron.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KBox B-203-RPL and is the answer not in the manual?

Questions and answers

Related Manuals for Kontron KBox B-203-RPL

Summary of Contents for Kontron KBox B-203-RPL

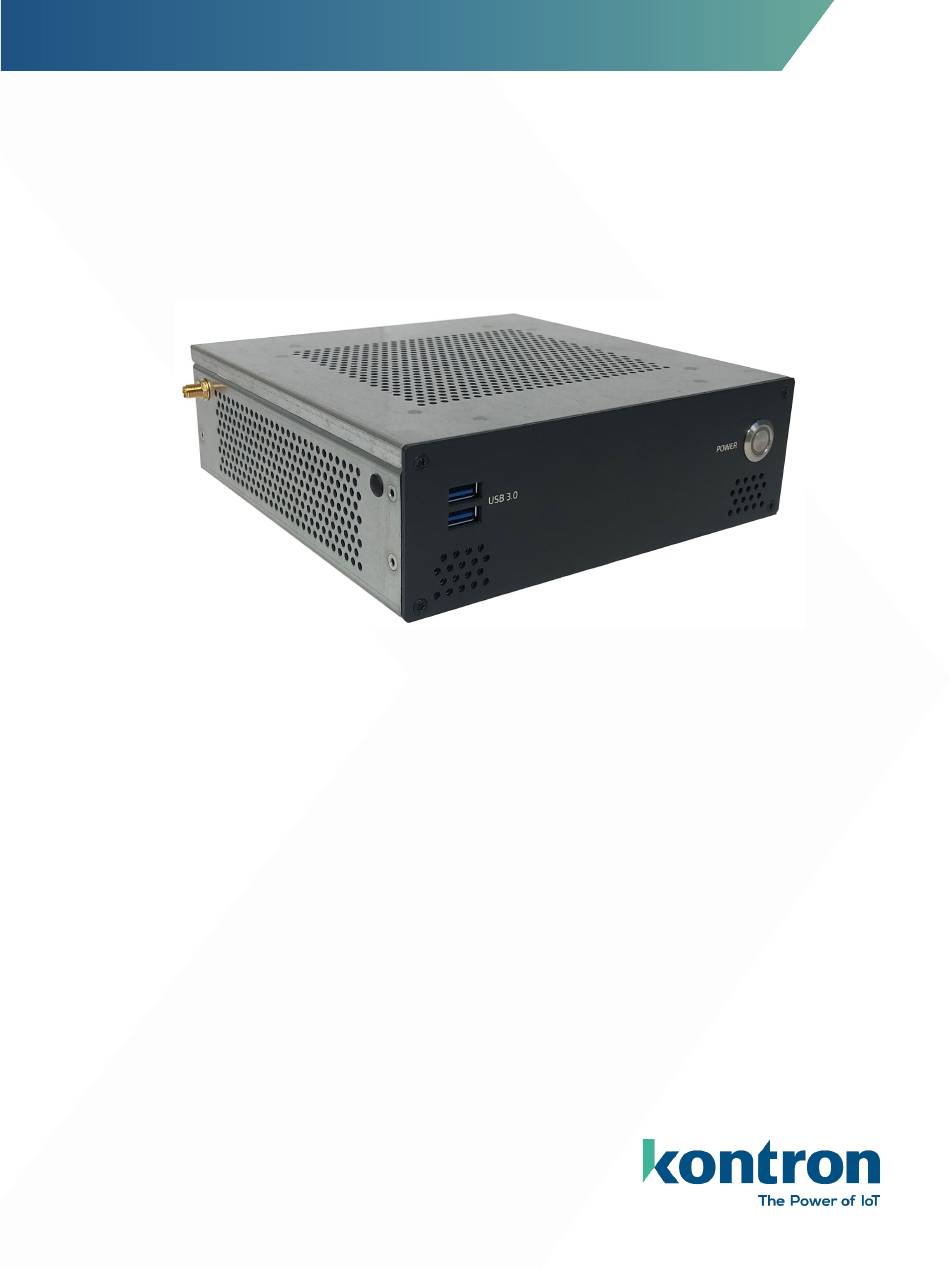

  • Page 1 User Guide KBox B-203-RPL Preliminary User Guide Rev. 0.2 Doc. ID 1075-0133 www.kontron.com...
  • Page 2 KBox B-203-RPL – Preliminary User Guide Rev. 0.2 This page has been intentionally left blank www.kontron.com...
  • Page 3 In cases of doubt, please contact Kontron. This user guide is protected by copyright. All rights are reserved by Kontron. No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means (electronic, mechanical, photocopying, recording, or otherwise), without the express written permission of Kontron.

  • Page 4: Intended Use

    (collectively, “high risk applications”). You understand and agree that your use of Kontron devices as a component in High Risk Applications is entirely at your risk. To minimize the risks associated with your products and applications, you should provide adequate design and operating safeguards.

  • Page 5: Revision History

    Kontron sells products worldwide and declares regional General Terms & Conditions of Sale, and Purchase Order Terms & Conditions. Visit www.kontron.com/terms-and-conditions. For contact information, refer to the corporate offices contact information on the last page of this user guide or visit...

  • Page 6: Symbols

    KBox B-203-RPL – Preliminary User Guide Rev. 0.2 Symbols The following symbols may be used in this user guide DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury. WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.
  • Page 7 KBox B-203-RPL – Preliminary User Guide Rev. 0.2 Security This symbol indicates general information and guidelines regarding security/cyber security to ensure installation, operation, maintenance and disposal of the product meet the required guidelines within the user’s end environment. This symbol indicates general information about the product and the user guide.

  • Page 8: For Your Safety

    Therefore, in the interest of your own safety and of the correct operation of your new Kontron product, you are requested to conform with the following guidelines.

  • Page 9: Lithium Battery Precautions

    General Instructions on Usage In order to maintain Kontron’s product warranty, this product must not be altered or modified in any way. Changes or modifications to the product, that are not explicitly approved by Kontron and described in this user guide or received from Kontron Support as a special handling instruction, will void your warranty.

  • Page 10: Table Of Contents

    KBox B-203-RPL – Preliminary User Guide Rev. 0.2 Table of Contents Revision History ................................5 Symbols ..................................6 For Your Safety ................................8 High Voltage Safety Instructions ........................... 8 Special Handling and Unpacking Instruction ......................8 Lithium Battery Precautions ..........................9 General Instructions on Usage ............................
  • Page 11 KBox B-203-RPL – Preliminary User Guide Rev. 0.2 8.4. VESA 100 Mount Assembly Kit ........................44 8.4.1. Mounting Directly on a Monitor ......................46 8.4.2. Mounting using the Monitor’s VESA 100 Stand ................. 47 Starting Up................................48 9.1. Before Starting ............................. 48 9.2.

  • Page 12: List Of Tables

    KBox B-203-RPL – Preliminary User Guide Rev. 0.2 18.1. Disposal ..............................76 18.2. WEEE Compliance ............................76 18.3. Data Sanitation ............................76 18.4. Statement of Memory Volatility ......................... 78 19/ Cyber Security ..............................79 19.1. Security Defense Strategy .......................... 79 Appendix: List of Acronyms ............................
  • Page 13 KBox B-203-RPL – Preliminary User Guide Rev. 0.2 Figure 4: Rear Panel ..............................24 Figure 5: Interface Panel ............................. 26 Figure 6: Left and Right Sides ............................29 Figure 7: Top Cover ..............................30 Figure 8: Bottom Side ..............................30 Figure 9: M.2 Sockets (stacked) ..........................

  • Page 14: 1/ Introduction

    Display Ports enable the connection of up to four simultaneous displays. The product is power by an AC/DC (150 W) power supply provided by Kontron in the delivery or optionally a 24 VDC power variant for direct connection to an external 24 VDC power supply.
  • Page 15 KBox B-203-RPL – Preliminary User Guide Rev. 0.2 4x USB 2.0 1x 2.5 GbE 1x 1 GbE 1x Audio (Line-In, Line-Out) 1x COM RS232 (option) 1x Breakout panel (COM RS232 or SPDIF option) Front Interfaces: 2x USB 3.2 Gen 1...

  • Page 16: 2/ General Safety Instructions

    Only connect the product to an external power supply providing the voltage type (AC or DC) and the input power (max. current) specified on the Kontron Product Label and meeting the requirements of the Limited Power Source (LPS) and Power Source (PS2) of UL/IEC 62368-1 .

  • Page 17: Additional Safety Instructions For Dc Power Supply Circuits

    Le non-respect des consignes de sécurité générales suivantes peut entraîner des blessures pour l'utilisateur et/ou des dommages pour le produit. En cas de non-respect des consignes, Kontron Europe est exonéré de la responsabilité en cas d'accident, ceci s'applique également pendant la période de garantie.

  • Page 18: Electrostatic Discharge (Esd)

    Seuls les accessoires d'origine approuvés par Kontron Europe peuvent être utilisés. Veuillez noter que la sécurité des opérations n'est plus possible lorsque l'une des conditions suivantes s'applique.

  • Page 19: Grounding Methods

    KBox B-203-RPL – Preliminary User Guide Rev. 0.2 2.4. Grounding Methods The following measures help to avoid electrostatic damages to the device: Cover workstations with approved antistatic material. Always wear a wrist strap connected to the workplace, as well as properly grounded tools and equipment.

  • Page 20: 3/ Shipment And Unpacking

    KBox B-203-RPL – Preliminary User Guide Rev. 0.2 3/ Shipment and Unpacking 3.1. Packaging The KBox B-203-RPL is packaged together with all parts, in a product specific cardboard package designed to provide adequate protection and absorb shock. 3.2. Unpacking To unpack the product perform the following: 1.

  • Page 21: Accessories And Spare Parts

    KBox B-203-RPL – Preliminary User Guide Rev. 0.2 3.4. Accessories and Spare Parts Table 2: List of Accessories and Spare Parts Part Order Information Description Manufacturer: Kontron Phoenix 3-pin power connector (PSC 1.5/3-F) Article Number: 0-0062-3268 Manufacturer: Kontron External AC/DC (150 W) power supply...

  • Page 22: Type Label And Product Identification

    KBox B-203-RPL – Preliminary User Guide Rev. 0.2 3.5. Type Label and Product Identification The type label contains specific product identification information and KBox B-203 RPL technical information. Figure 2: Type Label Example 7.5 A 1. Product family 6. Production date 2.

  • Page 23: 4/ Product Features

    4.1.2. USB 3.2 Gen 1 Ports (USB 3.0) The two front panel USB ports are USB 3.2 Gen 1 Type-A ports. Kontron recommends the use of USB 3.2 Gen 1 compliant devices or cables only. The use of devices and cables that violate the USB 3.2 Gen 1 specification may cause conditions such as non-recognition of the device or read/write errors.

  • Page 24: Rear Panel

    KBox B-203-RPL – Preliminary User Guide Rev. 0.2 4.2. Rear Panel The rear panel features the main I/O interfaces, one DC IN power connector (12 VDC or 24 VDC), two RP-SMA antenna connectors (option), potential equalization stud, Kensington lock, and two top cover fastening screws.

  • Page 25: Potential Equalization Stud

    KBox B-203-RPL – Preliminary User Guide Rev. 0.2 The 3-pin mating power connector delivered with the product must be wired suitably by the user as described in Chapter 9.2.2.1: Wiring the 3-pin Mating Power Connector. When connecting the 3-pin mating power connector (PSC 1.5/3-F) to the 24 VDC DC IN connector, securing with the two bolts provided and pay attention to the polarity of the connections.

  • Page 26: Interface Panel

    4.2.4.1. USB 3.2 Gen 2 Ports The three USB ports (Figure 5, pos. 3) are USB 3.2 Gen 2 Type-A ports. Kontron recommends the use on USB 3.2 Gen 2 compliant devices or cables only. The use of devices and cables that violate the USB 3.2 Gen 2 specification may cause conditions such as non-recognition of the device or read/write errors.

  • Page 27: Display Port (Dp)

    KBox B-203-RPL – Preliminary User Guide Rev. 0.2 4.2.4.4. Display Port (DP) The four DP V1.4a ports (Figure 5, pos. 1) are Display Port ++ compatible with a maximum resolution of 3840 x 2160 @ 60 Hz and enable the connection of up to four simultaneous digital displays directly or with an adapter. Using an adapter to convert a DP signal to DVI or HDMI may cause disturbance.
  • Page 28 The two Wi-Fi/BT® antenna connectors (Figure 5, pos. 10) are type RP-SMA female and support Wi-Fi 6E/BT 5.3. The product is delivered with Kontron reference antenna (type: RP-SMA male). Alternatively, two Wi-Fi/BT® antenna are available on the product’s right side.

  • Page 29: Left And Right Side

    If the RP-SMA connector is mixed with an SMA antenna, the connector’s center pin may be damaged. Kontron recommends the use of Kontron’s Wi-Fi/BT® reference antenna chosen to meet RF performance requirements and with a nominal impedance of 50 ohms, see Table 2: List of Accessories.

  • Page 30: Top Cover And Bottom Sides

    KBox B-203-RPL – Preliminary User Guide Rev. 0.2 4.4. Top Cover and Bottom Sides The top cover features ventilation openings. An internal processor fan draws in air through the top cover’s ventilation openings and distributes the incoming air over critical internal components.

  • Page 31: 5/ System Expansion

    5/ System Expansion 5.1. Before Expanding The KBox B-203-RPL supports expandability in a compact design and is factory configured according to the users ordered hardware configuration. Before expanding the product, consider which sockets are free for installation. Free sockets are available for expansion. Kontron recommends the use of Kontron’s reference devices to expand the product.

  • Page 32: Storage (Option)

    When installing expansion devices users must adhere to the manufactures requirements and any prerequisite requirements stated within this user guide. Kontron is not responsible for problems occurring after the installation expansion devices that have not been factory installed and configured by Kontron.
  • Page 33 KBox B-203-RPL – Preliminary User Guide Rev. 0.2 Expansion Device Description PCIe to M.2 Manufacturer: DELOCK Adapter board Article Number: 90300 DELOCK PCI Express x16 card for 1 x NVMe M.2 Key M. M.2 Key M SSD Manufacturer: Transcend Module...

  • Page 34: 6/ Thermal Management

    6/ Thermal Management 6.1. Active Cooling The KBox B-203-RPL is actively fan cooled. An internal processor fan draws in air through the top cover’s ventilation openings and distributes the incoming air over critical internal components before exiting through ventilation openings on the right side, left side and front panel.

  • Page 35: Minimum Clearance (Keep Out Area)

    KBox B-203-RPL – Preliminary User Guide Rev. 0.2 6.3. Minimum Clearance (Keep out Area) To provide maximum airflow through and around the product a minimum distance to the surrounding environment must be observed know as keep out area in this user guide. Before installing the product, ensure that the keep out areas have been observed.

  • Page 36: 7/ Assembly

    7/ Assembly 7.1. Before Assembling Before opening the KBox B-203-RPL to access internal components, observe the safety instructions within this chapter and the safety instructions in Chapter 2/General Safety Instructions. Before installing or removing third party products, consult the documentation provided by the components manufacturer.

  • Page 37: Installing And Removing An M.2 Wi-Fi/Bt® Module

    KBox B-203-RPL – Preliminary User Guide Rev. 0.2 3. Unlock and remove the Kensington lock (if installed). 4. Remove the two top cover screws on the rear panel. Retain the screws for later use. 5. Lift the top cover a few centimeters at the rear of the chassis and pull the top cover gently away from the front panel.

  • Page 38: Installing And Removing An M.2 Ssd Module

    When installing Wi-Fi/BT® antennas, consider the increase of the minimum clearance to 45 mm and 130 mm. Kontron recommends the use of Kontron’s Wi-Fi/BT® reference antenna chosen to meet RF performance requirements and with a nominal impedance of 50 ohms, see Table 2: List of Accessories.

  • Page 39: Figure 12: M.2 2280 Nvme Ssd Sockets

    KBox B-203-RPL – Preliminary User Guide Rev. 0.2 Do not use force when fastening the M.2 module to the motherboard. Too much force may damage the motherboard nut. Recommended torque for the M.2 screw is 0.2 Nm. For RAID, two M.2 SSDs with the same density must be installed.
  • Page 40 KBox B-203-RPL – Preliminary User Guide Rev. 0.2 2. Insert the M.2 2280 SSD module into the M.2 2280 Key M socket on the PCIe to M.2 adapter gently and at an angle, until the hole on the M.2 SSD module aligns with the corresponding adapter board’s nut. Secure the M.2 SSD module by pressing down on the free end, and carefully securing with a screw until the m.2 SSD...

  • Page 41: 8/ Installation

    (DC IN), and the front and rear panel I/O interface connectors. Kontron recommends expanding the product with expansion cards and storage, before installing the product in the end environment.

  • Page 42: Chassis Feet

    KBox B-203-RPL – Preliminary User Guide Rev. 0.2 Ensure there is enough clearance for users to: Connect cables on the rear panel Access the power button on the front panel Install Wi-Fi/BT® antenna on rear panel or right side (clearance 45 mm and 130 mm from hinge) 8.2.

  • Page 43: Figure 14: Wall Mount Bracket Orientation

    KBox B-203-RPL – Preliminary User Guide Rev. 0.2 When mounting, provide the specified minimum clearance around the product to ensure air-intake and extraction is not restricted. Additionally, users may need to consider the mount orientation due to the Wi-Fi/BT® antenna positioning.

  • Page 44: Vesa 100 Mount Assembly Kit

    KBox B-203-RPL – Preliminary User Guide Rev. 0.2 8.4. VESA 100 Mount Assembly Kit The VESA 100 mount assembly kits mounts the product and the external power supply on the rear side of a VESA 100 monitor. The VESA 100 Mount assembly kits installs directly on the monitor’s rear side or using the monitor’s VESA 100 stand.

  • Page 45: Figure 17: Inserting The Velcro® Band

    KBox B-203-RPL – Preliminary User Guide Rev. 0.2 3. Insert the supplied four M3x 8 mm screws into the rear side of the VESA 100 mounting frame and using a Torx screwdriver (10) fasten the product to the VESA 100 mounting frame.

  • Page 46: Mounting Directly On A Monitor

    KBox B-203-RPL – Preliminary User Guide Rev. 0.2 8.4.1. Mounting Directly on a Monitor Figure 19: Direct Mounting on a Monitor Insert screw 4x M4x20 mm screws 2 4x Spacers To mount the VESA 100 assembly directly onto the rear side of a monitor, perform the following: 1.

  • Page 47: Mounting Using The Monitor's Vesa 100 Stand

    KBox B-203-RPL – Preliminary User Guide Rev. 0.2 8.4.2. Mounting using the Monitor’s VESA 100 Stand Figure 20: Mounting with a VESA Stand on the Monitor Insert screw 4x M4x20 mm screws 2 4x Spacers To mount the VESA 100 assembly on to the monitor’s rear side using the monitor’s VESA 100 stand, perform the following: 1.

  • Page 48: 9/ Starting Up

    9/ Starting Up 9.1. Before Starting Before connecting the KBox B-203-RPL to power, read the instructions in this user guide and observe the safety instructions in Chapter 2/General Safety Instructions The product comes hardware configured, and on request with a pre-installed Operating System (OS) and all the necessary drivers (in accordance with the ordered hardware configuration).

  • Page 49: Connecting To The Power Connector

    Only connect the product to the supplied external power supply providing the voltage type (AC or DC) and the input power (max. current) specified on the Kontron Product Label and meeting the requirements of the Limited Power Source (LPS) and Power Source (PS2) of UL/IEC 62368-1.

  • Page 50: Vdc Dc In 3-Pin Power Connector (Option)

    9.2.2.1. Wiring the 3-pin Mating Power Connector The user is responsible for wiring the product correctly to an external 24 VDC power supply. Kontron recommends marking the wires clearly with (+/-) to ensure the correct connection to the DC IN 3-pin power connector. For the pin assignment of the 24 VDC DC IN 3-pin connector, see Chapter 13.2: DC IN 24 VDC 3-Pin Connector Pin Assignment...
  • Page 51 KBox B-203-RPL – Preliminary User Guide Rev. 0.2 Wire the mating power connector clearly by marking the supply wires (+/-) to ensure a safe connection between the 24 VDC DC IN connector and the external 24 VDC power supply. The wiring is not part of the delivery and must be provided by the user.

  • Page 52: Switching On/Off

    KBox B-203-RPL – Preliminary User Guide Rev. 0.2 9.3. Switching On/Off To switch on, connect to the power source as described in this user guide, and briefly press the power button. The power button illuminates blue to indicate the switched on state.

  • Page 53: 10/ Bios

    10/ BIOS The KBox B-203-RPL uses the AMI Aptio 5.x (uEFI) BIOS supported by the motherboard. This chapter informs users how to start the BIOS, use the BIOS setup to configure, and perform a BIOS update. Note that BIOS features are open to change and may not be available in the latest version of the motherboard’s BIOS.

  • Page 54: Bios Navigation

    <RETURN> <RETURN> key executes a command or selects a submenu 10.4. Updating the BIOS Before updating the BIOS, Kontron’s recommends making a backup of the current BIOS settings. The latest BIOS updates are available in Kontron’s Customer Section, within mini-ITX > K3836-Q> Link to FTP server > BIOS information.

  • Page 55: Recover Bios

    KBox B-203-RPL – Preliminary User Guide Rev. 0.2 10.5. Recover BIOS The recover BIOS jumper is located next to the stacked M.2 socket on the motherboard’s configuration jumper header. Figure 25: Configuration Jumper Header For further motherboard information, visit Kontron’s mITX K3836-Q website.

  • Page 56: 11/ Raid

    KBox B-203-RPL – Preliminary User Guide Rev. 0.2 11/ RAID To support RAID 0/RAID 1 the KBox B-203-RPL must be configured with two M.2 Key M NVMe SSDs modules of the same density. Table 10: RAID Options Drive Type Quantity...

  • Page 57: 12/ Product Specifications

    KBox B-203-RPL – Preliminary User Guide Rev. 0.2 12/ Product Specifications 12.1. Block Diagrams Figure 26: Block Diagram KBox B-203-RPL KBox B-203-RPL K3836-Q mITX 4x DisplayPort Dual Channel DDR5-5600 14th Gen. SODIMM Intel® Core™ 1x LAN (1 GbE) (up to 96 GB) i3, i5, i7, i9 &...

  • Page 58: Hardware Specification

    KBox B-203-RPL – Preliminary User Guide Rev. 0.2 12.2. Hardware Specification Table 11: Hardware Specification KBox B-203-RPL Description Motherboard Type K3836-Q mini-ITX Processors Intel® Core™ processor series i9/i7/i5/i3 (Gen. 14 ) & Intel® Desktop 300T TDP 35 W (max.) Chipset Intel®...

  • Page 59: Power Specification

    The 12 VDC DC IN Power Jack connects to the AC/DC 150 W (12 VDC to 100/240 VAC, (50/60 Hz) ±10%) power supply, supplied by Kontron in the delivery. The AC/DC 150 W power supply supplies the 12 VDC DC IN power jack with the electrical specification on the product’s type label and in Table 13.

  • Page 60: Power Protection

    The minimum off state time, to allow internal voltages to discharge, depends on the power supply used and additional electrical factors. To determine the required off state time, each case must be considered individually. For more information, contact Kontron Support. 12.4.4. Power Consumption The chosen power supply option must provide the level of power required to meet the product’s maximum power...

  • Page 61: Environmental Specification

    KBox B-203-RPL – Preliminary User Guide Rev. 0.2 12.5. Environmental Specification Table 16: Environmental Specification KBox B-203-RPL Description Temperature Operating 0°C to 50°C (32°F to 122°F) (according to IEC 60068-2-2 & IEC 60068-2-1) Non-operating -25°C to 70°C (-13°F to 158°F)

  • Page 62: Dimension Diagrams Kbox B-203-Rpl

    KBox B-203-RPL – Preliminary User Guide Rev. 0.2 12.6.1. Dimension Diagrams KBox B-203-RPL Figure 27: KBox B-203-RPL Dimensions For the products 3D STEP data, visit Kontron’s Customer section. www.kontron.com...

  • Page 63: Dimension Diagrams Wall Mount

    KBox B-203-RPL – Preliminary User Guide Rev. 0.2 12.6.2. Dimension Diagrams Wall Mount Figure 28: Wall Mount Dimensions (mm) For the products 3D STEP data, visit Kontron’s Customer section. 12.6.3. Dimension Diagrams VESA 100 Mount Figure 29: VESA 100 Mount Dimensions (mm) For the products 3D STEP data, visit Kontron’s...

  • Page 64: Compliance

    KBox B-203-RPL – Preliminary User Guide Rev. 0.2 12.7. Compliance The KBox B-203-RPL plans to comply with the relevant requirements and the approximation of the laws relating to the CE Mark for non-Wi-Fi/BT® variants and CE Radio Equipment Directive (RED) for Wi-Fi/BT® variants, and the standards that are constitutional parts of the declaration.

  • Page 65: Table 20: Compliance International

    Safety EN 62368-1 Audio/video, information and communication technology equipment – Safety requirements The KBox B-203-RPL plans to comply with the following international specific certifications. Table 20: Compliance International USA/ Canada FCC and NRTL Mark FCC 47 CFR Part 15B and ICES-003 Complies with part 15 FCC rules and regulations of title 47 of the CFR rules for class B products;...
  • Page 66 Kontron is not responsible for any radio television interference caused by unauthorized modifications of the supplied product or the substitution or attachment of connecting cables and equipment other than those specified by Kontron. The correction of interference caused by unauthorized modification, substitution or attachment is the user’s responsibility.

  • Page 67: 13/ Connectors And Leds

    Only connect the product to an external 24 VDC power supply providing the input power (max. current) specified on the Kontron Product Label and meeting the requirements of the Limited Power Source (LPS) and Power Source (PS2) of UL/IEC 62368-1.

  • Page 68: Usb 3.2 Gen 2/1 Port Pin Assignment

    KBox B-203-RPL – Preliminary User Guide Rev. 0.2 13.3. USB 3.2 Gen 2/1 Port Pin Assignment Table 23: USB 3.1 Gen 2/1 Port (Type-A) Pin Assignment Signal Name Signal name 9-pin USB 3.2 (Type-A) Port Date- Gen 2 Data+ Gen 1 13.4.

  • Page 69: Display Port (Dp) V1.4A Pin Assignment

    KBox B-203-RPL – Preliminary User Guide Rev. 0.2 13.6. Display Port (DP) V1.4a Pin Assignment Table 26: Display Port (DP) Connector Pin Assignment Signal Name Signal name DP Connector (standard) Link0+ Link0- Link1+ Link1- Link2+ Link2- Link3+ Link3- DVI dongle detect...

  • Page 70: Com Port Pin Assignment (Option)

    If the RP-SMA connector is mixed with an SMA antenna the connector’s center pin may be damaged. Kontron recommends the use of Kontron’s Wi-Fi/BT® reference antenna chosen to meet RF performance requirements and with a nominal impedance of 50 ohms, see Table 2: List of Accessories.

  • Page 71: 14/ Maintenance

    The product is not designed to operate without a lithium battery. If the lithium battery is empty or disconnected, the BIOS settings will be set to the factory defaults. The CR2032 lithium battery must be replaced with an identical three Volt lithium battery or a Kontron recommended lithium battery.

  • Page 72: Bios Recovery Jumper

    KBox B-203-RPL – Preliminary User Guide Rev. 0.2 Table 31: Battery Header Pins Signal 2-pin BAT header VBAT + Table 32: CR2032 Lithium Battery with Connector Pins Signal 3V CR2032 Black Figure 30: CR2032 Lithium Battery and BAT header BAT header on motherboard...

  • Page 73: 15/ Storage And Transportation

    The storage facility must meet the products environmental storage requirements as stated within this user guide. Kontron recommends keeping the original packaging material for future storage or warranty shipments.

  • Page 74: 16/ Technical Support

    1. Visit the RMA Information website: https://www.kontron.com/en/support/rma-information 2. Download the RMA Request sheet for Kontron Europe GmbH and fill out the form. Take care to include a short detailed description of the observed problem or failure and to include the product identification Information (Name of product, Product number and Serial number).

  • Page 75: 17/ Warranty

    KBox B-203-RPL – Preliminary User Guide Rev. 0.2 17/ Warranty Due to their limited service life, parts that by their nature are subject to a particularly high degree of wear (wearing parts) are excluded from the warranty beyond that provided by law. This applies to the lithium battery, for example.

  • Page 76: 18/ Disposal

    KBox B-203-RPL – Preliminary User Guide Rev. 0.2 18/ Disposal 18.1. Disposal Disposal of the product in accordance with country, state, or local regulations and requirements as part of your disposition and decommissioning policies or recycle the product or parts of the product for re-use after performing data sanitation to erase the data stored on the product.
  • Page 77 Kontron recommends performing data sanitation when reusing the product in a different user environment, sending the product in for repair and disposing or decommissioning the product.

  • Page 78: Statement Of Memory Volatility

    KBox B-203-RPL – Preliminary User Guide Rev. 0.2 Physical Destruction When physically destructing the memory: Follow proper safety protocols. Break the chip packaged silicon die into two or more parts, fragments <= 6 mm. Check both sides as memory devices may be position on the rear side.

  • Page 79: 19/ Cyber Security

    Kontron’s Security White paper. Security Measures Kontron is not aware of the final target end user environment in which the product operates. It is not possible for Kontron to provide precise instructions for your cyber security measures.

  • Page 80: Appendix: List Of Acronyms

    KBox B-203-RPL – Preliminary User Guide Rev. 0.2 Appendix: List of Acronyms Alternating Current Standard Dynamic Range BIOS Basic Input Output System Solid State Drive Bluetooth S/PDIF Sony/Philips Digital Interface Conformitè Europëenne Trusted Platform Module UEFI Communication port Unified Extensible Firmware Interface...

  • Page 81: About Kontron

    User Guide About Kontron Kontron is a global leader in IoT/Embedded Computing Technology (ECT) and offers individual solutions in the areas of Internet of Things (IoT) and Industry 4.0 through a combined portfolio of hardware, software and services. With its standard and customized products based on highly reliable state-of-the-art technologies, Kontron provides secure and innovative applications for a wide variety of industries.
