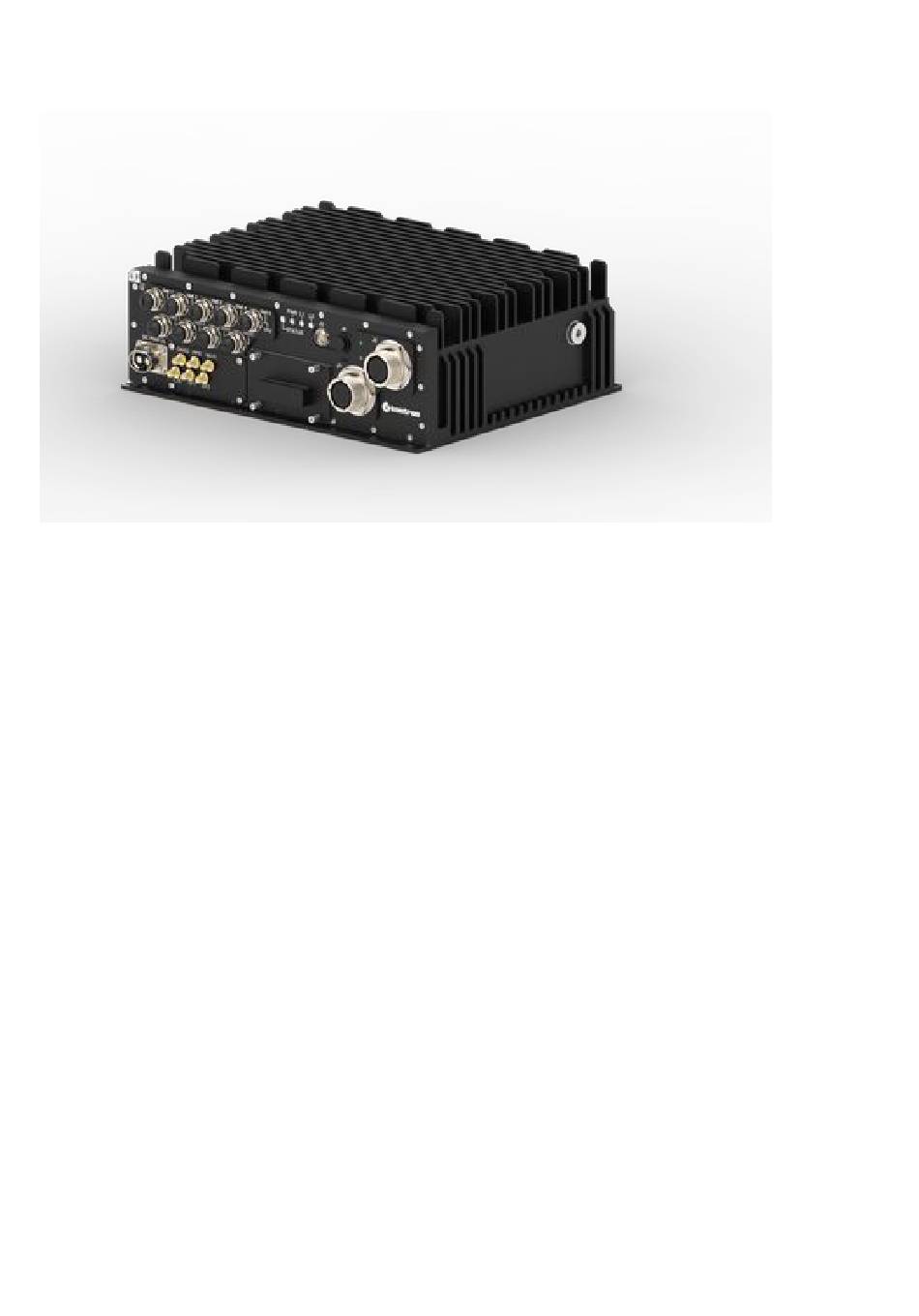

S1901_EvoTrac_User_Guide
User Documentation - S1901 EvoTRAC
User Documentation - S1901 EvoTRAC
July 14, 2023
www.kontron.com
// 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EvoTRAC S1901 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kontron EvoTRAC S1901

Summary of Contents for Kontron EvoTRAC S1901

  • Page 1 S1901_EvoTrac_User_Guide User Documentation - S1901 EvoTRAC User Documentation - S1901 EvoTRAC July 14, 2023 www.kontron.com // 1...
  • Page 2 PCI mapping Linux devices Material, information and software required Platform, modules and accessories Connector pinouts for building custom cables Kontron test cables Validated operating systems Security Getting started Getting started - Platform integration and system access Mechanical installation and precautions...

  • Page 3: Product Description

    Expansion slots that can be used for cellular connectivity, Wi-Fi connectivity, storage, I/O, and more: Two M.2 M key expansion slots One M.2 B key expansion slot Two mini-PCIe slots Support for Linux Ubuntu 18.04 and 20.04 LTS 64-bit operating systems July 14, 2023 www.kontron.com // 3...

  • Page 4: Revision History

    Preliminary version for rev 1 - various corrections made throughout the document March 2022 Supplemented preliminary version for rev 1 December 2022 Mechanical changes to risers Front panel changed to a tray USB #1 port no longer available General update EvoTrac July 2023 July 14, 2023 www.kontron.com // 4...

  • Page 5: Limited Warranty

    Disclaimer Kontron would like to point out that the information contained in this manual may be subject to alteration, particularly as a result of the constant upgrading of Kontron products. This document does not entail any guarantee on the part of Kontron with respect to technical processes described in the manual or any product characteristics set out in the manual.
  • Page 6 DAMAGE (COLLECTIVELY, “HIGH RISK APPLICATIONS”). You understand and agree that your use of Kontron devices as a component in High Risk Applications is entirely at your risk. To minimize the risks associated with your products and applications, you should provide adequate design and operating safeguards. You are solely responsible for compliance with all legal, regulatory, safety and security related requirements concerning your products.
  • Page 7 Electric Shock! Before installing a non-hot-swappable Kontron product into a system always ensure that your main power is switched off. This also applies to the installation of piggybacks. Serious electrical shock hazards can exist during all installation, repair, and maintenance operations of this product.
  • Page 8 S1901_EvoTrac_User_Guide Overview Overview July 14, 2023 www.kontron.com // 8...

  • Page 9: Specifications

    S1901_EvoTrac_User_Guide Specifications Specifications Table of contents Key hardware features Key software features Physical dimensions Packaging physical dimensions Shipping weights Environmental specifications K K ey hardware features ey hardware features July 14, 2023 www.kontron.com // 9...
  • Page 10 One GNSS input SMA One PPS input or output SMA Four optional SMA inputs for LTE/5G and Wi-Fi/Bluetooth modules Nine axis IMU: accelerometer, magnetometer and gyroscope K K ey software features ey software features July 14, 2023 www.kontron.com // 10...

  • Page 11: Shipping Weights

    -40ºC to +71ºC ( -40ºF to +160ºF )* Temperature, non-operating -40ºC to +85ºC (-40ºF to +185ºF) Temperature, storage, non-operating -40ºC to +85ºC (-40ºF to +185ºF) * With specific configurations. Refer to Environmental considerations for details. July 14, 2023 www.kontron.com // 11...

  • Page 12: Platform Components

    1 Gigabit Ethernet to the network switch M12 8-pin X-Coded female Torque: Torque: 5 lbs-in connector: Mating cycles: Mating cycles: 500 Harting 21033812806 Shell: Harting 21033012000 GbE 5 1 Gigabit Ethernet to the network switch M12 8-pin X-Coded female July 14, 2023 www.kontron.com // 12...
  • Page 13 Three GPI, three GPO and seven GPIO Mating cycles: Mating cycles: 500 Two USB 2.0 AL07F17- Temperature sensor 35DA(P10) Balanced audio: Two In Two Out Eight pass-through I/O (option) Overview of internal connectors Overview of internal connectors July 14, 2023 www.kontron.com // 13...
  • Page 14 Description and behavior Status Customer configurable LED from the operating system. Power Power status LED. Solid green when the power is on. Customer configurable LED from the operating system. Customer configurable LED from the operating system. July 14, 2023 www.kontron.com // 14...

  • Page 15: Product Architecture

    S1901_EvoTrac_User_Guide Product architecture Product architecture Table of contents Block diagrams Overview USB devices PCIe and storage devices Serial connections Network devices GPIOs and others Block diagrams Block diagrams Overview Overview USB devices USB devices July 14, 2023 www.kontron.com // 15...
  • Page 16 S1901_EvoTrac_User_Guide PCIe and storage devices PCIe and storage devices July 14, 2023 www.kontron.com // 16...

  • Page 17: Serial Connections

    The platform includes two links between the processor and the Ethernet network switch: A 10 GbE link to send Ethernet data A serial port to enable dynamic Ethernet network switch configuration from the processor July 14, 2023 www.kontron.com // 17...
  • Page 18 S1901_EvoTrac_User_Guide GPIOs and others GPIOs and others This section describes the main signals available from front panel connectors J1 and J2. July 14, 2023 www.kontron.com // 18...
  • Page 19 SSH from a remote computer SSH from a remote computer Operating the platform under normal operation Ideal path once OS installation and OS network interface configurations have been Remote access to the OS performed. Automation, scripting July 14, 2023 www.kontron.com // 19...
  • Page 20 Recommended technical expertise Recommended technical expertise Expertise related to operating systems and network operating systems is required. IP addresses will need to be assigned based on known MAC addresses, so appropriate IT expertise is required. July 14, 2023 www.kontron.com // 20...
  • Page 21 S1901_EvoTrac_User_Guide Planning Planning July 14, 2023 www.kontron.com // 21...

  • Page 22: Environmental Considerations

    71°C, please contact Kontron for technical assistance. The following table provides some general installation design considerations and the values are based on simulations.
  • Page 23 18.75 x 17.25, 1/4 thick aluminum plate Component and usage CPU 75% / GPU 75% load - 19% - 19% Same environmental conditions as baseline D-1559 (45 W) / RTX3000 100% load +32% Same environmental conditions as baseline July 14, 2023 www.kontron.com // 23...

  • Page 24: Power Consumption Examples

    12 V (+12%) 24 V (+7%) 24 V (+7%) Intel® Xeon® D-1539 Intel® Xeon® D-1559 Two 4 GB SODIMM Under active use Two 16 GB SODIMM Under active use Two 32 GB SODIMM Under active use July 14, 2023 www.kontron.com // 24...
  • Page 25 EM7565 M.2 LTE 4G Maximum antenna power WPEB-263ACNI(BT) Wi- Under active use Fi/Bluetooth If all the optional components are used and operate at maximum power, the system co uld exceed its maximum power consumption. July 14, 2023 www.kontron.com // 25...

  • Page 26: Mac Addresses

    Speed (Baud): 115200 Data bits: 8 Stop bits: 1 Parity: None Flow Control: None Recommended emulation mode: VT100+ NOTE: NOTE: PuTTY is recommended. Relevant sections: Relevant sections: Connector pinouts for building custom cables Kontron test cables July 14, 2023 www.kontron.com // 26...
  • Page 27 Procedure To obtain the list of default user names and passwords, refer to Default user names and passwords NOTE: If using the Kontron test harness, RS-232 port #1 is the P3 connector of the J1 harness. NOTE: Step_1 From a remote computer with a serial connection to RS-232 port #1 (the default serial console), open a serial console tool, and start the communication between the console and the serial port to which the device is connected.
  • Page 28 NOTE: Enter . Step_3 Open the OS CLI. kontron@S1901:~$ Step_4 Access the network switch. kontron@S1901:~$ sudo minicom -D LocalServer_OSPrompt:~# sudo minicom -D /dev/ttyS6 sudo minicom -D /dev/ttyS6 /dev/ttyS6 [sudo] password for lab: Step_5 Log in using the appropriate credentials. The prompt displayed is the MAC_BASE (the MAC of the Welcome to minicom 2.7.1...

  • Page 29: Pci Mapping

    Intel Corporation 8 Series/C220 Series Chipset Family SMBus Controller (rev 05) 03:00.0 8086 0880 System peripheral Intel Corporation Xeon Processor D Family QuickData Technology Register DMA Channel 0 03:00.1 8086 0880 System peripheral Intel Corporation Xeon Processor D Family QuickData Technology Register DMA July 14, 2023 www.kontron.com // 29...
  • Page 30 0880 System peripheral Intel Corporation Xeon E7 v4/Xeon E5 v4/Xeon E3 v4/Xeon D Caching Agent (rev FF:0F.6 8086 0880 System peripheral Intel Corporation Xeon E7 v4/Xeon E5 v4/Xeon E3 v4/Xeon D Caching Agent (rev July 14, 2023 www.kontron.com // 30...
  • Page 31 Intel Corporation Xeon E7 v4/Xeon E5 v4/Xeon E3 v4/Xeon D Power Control Unit (rev 04) FF:1E.3 8086 0880 System peripheral Intel Corporation Xeon E7 v4/Xeon E5 v4/Xeon E3 v4/Xeon D Power Control Unit (rev 04) July 14, 2023 www.kontron.com // 31...
  • Page 32 Card in expansion mPCIe #1 Depends on mPCIe card 11:00.0 XXXX XXXX Card in expansion M.2 3042-B Depends on M.2 card 12:00.0 XXXX XXXX Card in expansion M.2 2280-M #1 Depends on M.2 card July 14, 2023 www.kontron.com // 32...

  • Page 33: Serial Ports

    LocalServer_OSPrompt:~# dmesg | grep -i usb dmesg | grep -i usb List of all USB devices connected with Vendor and ProdID information LocalServer_OSPrompt:~# cat /sys/kernel/debug/usb/devices | more cat /sys/kernel/debug/usb/devices | more Balanced audio ports Balanced audio ports July 14, 2023 www.kontron.com // 33...
  • Page 34 Control /dev/snd/controlC1 Internal Playback (audio /dev/snd/pcmC1D0p J2 out) GNSS port GNSS port Relevant section: Relevant section: Configuring the GNSS Port Port Linux device path Linux device path Location Location GNSS U-Blox NEO-M9N /dev/ttyACM0 Internal July 14, 2023 www.kontron.com // 34...
  • Page 35 Up to 10 AWG red stranded wire to build the power cable based on the length required NOTE: Use a wire gauge appropriate based on current and local wiring codes. NOTE: Item_4 (Optional) One Kontron test cable kit or one Kontron DC power input cable Network cables and modules Network cables and modules All mating connectors and cables used with the S1901 platform must have an IP67 rating.

  • Page 36: Center Of Gravity Location

    Platform components Connector pinouts for building custom cables Kontron test cables Cabling NOTE: If a part number is specified, all items in the part list may be replaced by equivalents only after approval by Kontron. NOTE: Item_1 Flat screwdriver Item_2...
  • Page 37 S1901_EvoTrac_User_Guide Item_1 A terminal emulator such as PuTTY PuTTY is installed on a remote computer. Item_2 (For demo products) A Remote Desktop client is installed on a remote computer. July 14, 2023 www.kontron.com // 37...
  • Page 38 S1901_EvoTrac_User_Guide Platform, modules and accessories Platform, modules and accessories This section provides the complete list of compatible parts and components that can be ordered from Kontron. Description Description Kontron P/N Kontron P/N RSSD 1TB SATA 1068-1217 RSSD 2TB SATA 1068-1125...
  • Page 39 Controlling GPIOs 55-pin I/O connector – J1 55-pin I/O connector – J1 Description: 55-pin Straight Plug 17-35 I/O female connector, Key N Description: Mating connector: Amphenol D38999/26FE35PN Mating connector: External connector pinout: External connector pinout: July 14, 2023 www.kontron.com // 39...
  • Page 40 Electrical characteristics: 0 to 40 V (open collector output only). A 22 AWG wire required and the GPIO isolated GND will take all return current. The current must not exceed the rating of the GPIO isolated GND. The chip used for GPOs is a TPL7407LDR. USB 2.0 #2 Power, Reset Ignition key switch (50mA max) July 14, 2023 www.kontron.com // 40...
  • Page 41 Electrical characteristics: 0 to 40 V (open collector output only). A 22 AWG wire required and the GPIO isolated GND will take all return current. The current must not exceed the rating of the GPIO isolated GND. The chip used for GPOs is a TPL7407LDR. General Purpose I/O #1, #2, #3, #4, #5, #6 and #7 July 14, 2023 www.kontron.com // 41...

  • Page 42: Ethernet Port Connectors

    GPIO 2 Isolated M2 or mPCIe pass-through 6 Ethernet port connectors Ethernet port connectors Description: M12 8-pin X-Coded female connector Description: Mating connector: Harting 21330100850 series or equivalent Mating connector: External connector pinout: External connector pinout: July 14, 2023 www.kontron.com // 42...
  • Page 43 DC power supply input connector DC power supply input connector Description: 2-pole X-Coded Powerlok DC power female connector Description: Mating connector: Amphenol TPI PL182X-61-6P11 or equivalent Mating connector: External connector pinout: External connector pinout: July 14, 2023 www.kontron.com // 43...
  • Page 44 S1901_EvoTrac_User_Guide Signal description Signal description Power input+ (Vbat+) Power input- (Vbat-) July 14, 2023 www.kontron.com // 44...

  • Page 45: Power Cable

    USB 2.0 #3 (P9) – USB Type A connector USB 2.0 #4 (P10) – USB Type A connector The Kontron test cables are not IP67 rated. They are designed for use in a lab or test environment. Test cable kit...

  • Page 46: Network Cables

    Network cables Network cables Nine 2-meter M12 to RJ45 shielded IP67 network cables are included in the Kontron test cable kit or can be purchased separately by customers (P/N 1064- 9369). It is also possible for customers to build their own cables.
  • Page 47 I/O harness for J1 I/O harness for J1 A 2-meter I/O test harness for J1 is included in the Kontron test cable kit or can be purchased separately by customers (P/N 1068-5060). It is also possible for customers to build their own cable.
  • Page 48 S1901_EvoTrac_User_Guide The Kontron test harness for J1 includes 15 devices: CAN bus #1 ( P9) – DB9 female connector CAN bus #2 ( P10) – DB9 female connector CAN bus #3 ( P11) – DB9 female connector CAN bus #4 ( P12) – DB9 female connector GPIs 1 to 6, GPOs 1 to 5 ( P6) –...
  • Page 49 Signal description Signal description Reserved CAN bus L Reserved Reserved Reserved CAN bus H Reserved Reserved CAN bus #2 ( P10) CAN bus #2 ( P10) – DB9 female – DB9 female connector connector July 14, 2023 www.kontron.com // 49...
  • Page 50 Reserved CAN bus H Reserved Reserved GPIs 1 to 6, GPOs 1 to 5 GPIs 1 to 6, GPOs 1 to 5 ( ( P6) – DB25 female P6) – DB25 female connector connector July 14, 2023 www.kontron.com // 50...
  • Page 51 Signal description Signal description Reserved RS-232 Rx RS-232 Tx Reserved Reserved Reserved Reserved Reserved RS-232 #2 ( RS-232 #2 ( P2) – P2) – DB9 male DTE connector DB9 male DTE connector July 14, 2023 www.kontron.com // 51...
  • Page 52 Reserved RS-232 #5 or RS-485/422 #1 ( RS-232 #5 or RS-485/422 #1 ( P7) – – DB9 male DTE connector DB9 male DTE connector For information on connector configuration, refer to Configuring serial ports July 14, 2023 www.kontron.com // 52...
  • Page 53 I/O harness for J2 I/O harness for J2 A 2-meter I/O test harness for J2 is included in the Kontron test cable kit or can be purchased separately by customers (P/N 1068-5062). It is also possible for customers to build their own cable.
  • Page 54 S1901_EvoTrac_User_Guide The Kontron test harness for J2 includes 11 devices: Balanced audio left out (P4) – XLR male connector Balanced audio right out (P5) – XLR male connector Balanced audio left in (P7) – XLR female connector Balanced audio right in (P8) – XLR female connector GPIs 7 to 9, GPOs 6 to 8, GPIOs 1 to 7 ( P6) –...
  • Page 55 GPIs 7 to 9, GPOs 6 to 8, GPIOs 1 to 7 ( P6) – DB25 female GPIs 7 to 9, GPOs 6 to 8, GPIOs 1 to 7 ( P6) – DB25 female connector connector July 14, 2023 www.kontron.com // 55...
  • Page 56 RS-485/422 Tx- (Y) RS-485/422 Tx+ (Z) Reserved Reserved RS-485 Isolated GND RS-485/422 Rx- (B) RS-485/422 Rx+ (A) Reserved Reserved RS-485/422 #4 (P3) – DB9 male DTE connector RS-485/422 #4 (P3) – DB9 male DTE connector July 14, 2023 www.kontron.com // 56...
  • Page 57 USB 2.0 #3 (P9) – USB Type A connector Signal description Signal description USB 2.0 #4 (P10) – USB Type A connector USB 2.0 #4 (P10) – USB Type A connector Signal description Signal description July 14, 2023 www.kontron.com // 57...

  • Page 58: Status Description

    IN PROCESS Certification has started OS certification status OS certification status Operating system Operating system Status Status Ubuntu Server LTS 18.04.5 with kernel 5.4 VALIDATED VALIDATED Ubuntu Server LTS 20.04.1 with kernel 5.4 VALIDATED VALIDATED July 14, 2023 www.kontron.com // 58...
  • Page 59 Refer to Configuring the TPM in section Configuring UEFI BIOS options Kontron can provide an encrypted UEFI/BIOS with an SSH key. Contact Kontron for more information. For more information on security features, contact Kontron. July 14, 2023 www.kontron.com...

  • Page 60: Getting Started

    S1901_EvoTrac_User_Guide Getting started Getting started July 14, 2023 www.kontron.com // 60...

  • Page 61: Safety And Regulatory

    DC power cable and tooling Network cables and modules Software required Connecting the cables Connecting the serial cable and network cables Kontron I/O harness for J1 Connecting the power cable Powering ON the platform Electrical prerequisites Procedure Logging into the operating system...

  • Page 62: What's In The Box

    The OS access method must be through a serial connection The default IPv4 scheme is DHCP The Kontron test cable kit is used (includes a power input cable, an I/O harness for J1 and a network cable) Ubuntu 20.04 and the board support package (BSP) are installed on the platform...
  • Page 63 Mating cycles: Mating cycles: 500 Harting 21033812806 Shell: Harting 21033012000 2.5GbE 2.5 Gigabit Ethernet to the network switch M12 8-pin X-Coded female Torque: Torque: 5 lbs-in connector: Mating cycles: Mating cycles: 500 Harting 21033812806 July 14, 2023 www.kontron.com // 63...
  • Page 64 Relevant section: Cabling Item_1 One I/O harness for J1 (included in the Kontron test cable kit) Item_2 One network cable to connect the laptop to the network switch Item_3 One laptop with a serial port with a null modem connection and a network port...

  • Page 65: Connecting The Cables

    Kontron I/O harness for J1 I/O harness for J1 In the Kontron test harness for J1, the DB9 male DTE adapter labeled P3 is connection RS-232 #1. The following table describes the pinout of the DB9 adapter. Signal description Signal description...
  • Page 66 Recommended emulation mode: VT100+ NOTE: PuTTY is recommended. NOTE: Relevant section: Relevant section: Platform components Procedure Procedure To obtain the list of default user names and passwords, refer to Default user names and passwords. July 14, 2023 www.kontron.com // 66...
  • Page 67 S1901_EvoTrac_User_Guide NOTE: In the Kontron test harness, RS-232 port #1 is the P3 connector of the J1 harness. NOTE: Step_1 From a remote computer with a serial connection to RS-232 port #1 (the default serial console), open a serial console tool, and start the communication between the console and the serial port to which the device is connected.
  • Page 68 CBIT is installed in demo mode by default and will start a Web service on port 80. Step_1 Open a browser and enter the IP of eno2 to access the CBIT/kehm Web interface. July 14, 2023 www.kontron.com // 68...
  • Page 69 A serial console tool is installed on the OS. Speed (Baud): 115200 Data bits: 8 Stop bits: 1 Parity: None Flow Control: None Recommended emulation mode: VT100+ NOTE: NOTE: Minicom is recommended. Procedure Procedure Access the OS. July 14, 2023 www.kontron.com // 69...

  • Page 70: Browser Considerations

    Cookies must be enabled in order to access the website. For further information about enabling cookies, please refer to your Web browser's documentation. NOTE: The procedure may vary depending on the browser used. Examples provided use Firefox. NOTE: Access procedure Access procedure July 14, 2023 www.kontron.com // 70...
  • Page 71 S1901_EvoTrac_User_Guide Step_1 From a remote computer that has access to the switch network, open a browser window and enter the IP address discovered for the switch. http://[SWITCH_IP] July 14, 2023 www.kontron.com // 71...
  • Page 72 S1901_EvoTrac_User_Guide Mechanical installation and precautions Mechanical installation and precautions July 14, 2023 www.kontron.com // 72...
  • Page 73 Keep a part of your body (e.g. a hand) in contact with the metal chassis to dissipate the static charge while handling the electronic component. Avoid moving around unnecessarily. Use a ground strap attached to the front panel (with the bezel removed). Read and follow the safety precautions provided for a specific component by the manufacturer. July 14, 2023 www.kontron.com // 73...
  • Page 74 The S1901 platform box includes one preassembled S1901 system platform one preassembled S1901 system platform . Step_1 Carefully remove the platform from its packaging. Step_2 Remove the platform from the ESD bag using all the appropriate ESD protection measures. July 14, 2023 www.kontron.com // 74...

  • Page 75: Replacing A Battery

    If the platform is never powered, t he RTC circuit consumes a maximum of 10 µA/h with a 200 mA CR2032 battery: When one battery is installed and the platform is not powered, the battery can last approximately 20,000 hours (2.2 years). July 14, 2023 www.kontron.com // 75...
  • Page 76 Inserting the front tray Step_1 Insert the front tray in the platform. Using a T10 Torx screwdriver, fasten the 4 captive screws to secure the front tray to the enclosure (6 lbs-in torque) . July 14, 2023 www.kontron.com // 76...

  • Page 77: Installing The Platform

    5.5 mm (0.217 in) and is designed to support 10-24 (in), 10-32 (in), or M5 (metric) mounting hardware. The recommended mounting configuration is to use a flat washer/locking washer/bolt stack, a self-locking bolt, or a simple bolt with a Loctite-like material. Top view Top view Side view Side view July 14, 2023 www.kontron.com // 77...
  • Page 78 The logical ground is connected directly to the chassis ground on the faceplate for efficient ESD protection. The torque for the ECM grounding screw located in front of the platform (top left) is 24 lbs-in. July 14, 2023 www.kontron.com // 78...

  • Page 79: Power Cables

    DC power supply A 2-meter DC power input cable is included in the Kontron test cable kit or can be purchased separately by customers (P/N 1067-8665). It is also possible for customers to build their own cable according to the mating connector manufacturer's instructions.

  • Page 80: Other Cables

    Other cables Other cables Relevant sections: Relevant sections: Connector pinouts for building custom cables Kontron test cables Step_1 Build all the cables required using the appropriate material and according to the manufacturer's instructions and local wiring codes. July 14, 2023 www.kontron.com...

  • Page 81: Equipment Required

    Once a test is successful, remove the custom fitting from the pressure port and reattach the plug (200 lbs-in torque). NOTE: NOTE: It is crucial to respect the torque when reinstalling the plug. An improperly installed plug could compromise the IP67 rating of the platform. July 14, 2023 www.kontron.com // 81...
  • Page 82 S1901_EvoTrac_User_Guide Accessing platform components Accessing platform components July 14, 2023 www.kontron.com // 82...
  • Page 83 Access procedure To obtain the list of default user names and passwords, refer to Default user names and passwords NOTE: If using the Kontron test harness, RS-232 port #1 is the P3 connector of the J1 harness. NOTE: Step_1 From a remote computer with a serial connection to RS-232 port #1 (the default serial console), open a serial console tool, and start the communication between the console and the serial port to which the device is connected.

  • Page 84: Remote Desktop

    An OS with Remote Desktop is installed. NOTE: NOTE: When Kontron installs a demo OS, Remote Desktop is installed by default. An IP address is known: eno2 Ethernet port IP address (GbE 0) if the network switch is not configured eno1 Ethernet port IP address (GbE 1 to 6, 2.5GbE and 10GbE) once the network switch is configured...
  • Page 85 Enter the appropriate credentials and click on OK OK . Step_4 Click or press any key. Step_5 Enter the password of the OS and press Enter Enter . Step_6 The OS screen is displayed. July 14, 2023 www.kontron.com // 85...
  • Page 86 NOTE: If using the Kontron test harness, RS-232 port #1 is the P3 connector of the J1 harness. NOTE: NOTE: If using the Kontron test harness, the power button is the SW3 connector of the J1 harness and the reset switch is the SW2 connector of the J1 NOTE: harness.
  • Page 87 Log in using the appropriate credentials. NOTE: NOTE: If "username:" is not displayed, press Enter Enter . Accessing the switch NOS using the Web UI Accessing the switch NOS using the Web UI Prerequisites Prerequisites July 14, 2023 www.kontron.com // 87...
  • Page 88 To obtain the list of default user names and passwords, refer to Default user names and passwords Step_1 From a remote computer, open an SSH client tool and connect with the NOS IP address. Step_2 Log in the switch NOS CLI using the appropriate credentials. July 14, 2023 www.kontron.com // 88...
  • Page 89 S1901_EvoTrac_User_Guide July 14, 2023 www.kontron.com // 89...
  • Page 90 Default user names and passwords For details on network architecture, refer to Network devices NOTE: If using the Kontron test harness, RS-232 port #1 is the P3 connector of the J1 harness. NOTE: Step_1 From a remote computer with a serial connection to RS-232 port #1 (the default serial console), open a serial console tool, and start the communication between the console and the serial port to which the device is connected.
  • Page 91 Step_5 (Optional) To retry a DHCP request and get a NOS IP address that is not the default. LocalSwitchNOS_OSPrompt:~# ip dhcp retry interface vlan 1 ip dhcp retry interface vlan 1 Wait one minute. LocalSwitchNOS_OSPrompt:~# show show ip interface brief ip interface brief July 14, 2023 www.kontron.com // 91...
  • Page 92 The MAC address of the network switch (MAC_BASE) is known. Relevant section: Relevant section: MAC addresses Procedure Procedure Step_1 Look in the DHCP server to find the IP address based on the MAC address. July 14, 2023 www.kontron.com // 92...

  • Page 93: Default User Names And Passwords

    User name Password Password admin ready2go Operating system Operating system The user name and password are application-specific. However, if Kontron provided an operating system, the credentials will be the following: User name User name Password Password kontron ready2go UEFI/BIOS UEFI/BIOS No password is set by default.
  • Page 94 S1901_EvoTrac_User_Guide Software installation and deployment Software installation and deployment July 14, 2023 www.kontron.com // 94...
  • Page 95 Step_2 Confirm the OS version to be installed is compatible with the board support package (BSP). If the OS used is not an OS validated by Kontron, refer to the BSP section to determine the drivers required and the configuration parameters to be adapted to your OS.
  • Page 96 The following instruction "console=ttyS0,115200n8" must be added to the grub instructions. For more details on the process, refer to the OS manufacturer's documentation. Useful keywords for an Internet search are: console=ttyS0 grub. Relevant sections: Relevant sections: July 14, 2023 www.kontron.com // 96...
  • Page 97 (to use USB ports available from the front plate connectors using custom cables) Kontron test cables (to use USB ports available from the front plate connectors using Kontron test cables) Components installation and assembly (to use the USB port located under the front panel) This procedure can be performed using any of the platform's USB ports.
  • Page 98 The BSP is provided in the form of a .zip archive and is specific to the target OS. If the OS used is not an OS validated by Kontron, refer to the extracted BSP scripts to determine the drivers required and the configuration parameters to adapt for your OS.
  • Page 99 Upon successful installation, the "Installation Complete" message should be displayed. Installing BSP components specific to the S1901 EvoTRAC platform Installing BSP components specific to the S1901 EvoTRAC platform For additional information on the components, refer to Monitoring platform components July 14, 2023 www.kontron.com // 99...
  • Page 100 S1901_EvoTrac_User_Guide Step_1 Install the FT422H component by running the following command: ./FT4222-gpio/install.sh Upon successful installation, the "Installation Complete" message should be displayed. July 14, 2023 www.kontron.com // 100...
  • Page 101 NOTE: The output should be similar to the following sample, sic451-i2c-0-11 although actual readings will vary. Adapter: SMBus I801 adapter at f000 coretemp-isa-0000 Adapter: ISA adapter max6581-i2c-0-4d Adapter: SMBus I801 adapter at f000 ads7830-i2c-0-49 Adapter: SMBus I801 adapter at f000 July 14, 2023 www.kontron.com // 101...
  • Page 102 Step_3 Run the following command to verify that KEAPI is installed. LocalServer_OSPrompt:~# ktool gen GetBoardInfo LocalServer_OSPrompt:~# ktool gen GetBoardInfo ktool gen GetBoardInfo Board manufacturer: Kontron Board name: COMe-bBD7 E2 Board SN: NXD7O0004 Carrier Info: S1901 Hardware Version: 2.0.0 Manufacturing Date: 1/26/2021...
  • Page 103 "KEMPLD is on $(i2cdetect -l | grep "i2c-kempld" | cut -f 1 | cut -d - -f 2)" NOTE: NOTE: The answer will be KEMPLD is on [KEMPLD_NO]. Confirming the GPIO drivers are present Confirming the GPIO drivers are present Most commands below require administrative privileges (sudo). July 14, 2023 www.kontron.com // 103...
  • Page 104 [tic12400] (8 lines) [gpi 2-9] drivers are installed. gpiochip1 [mcp23s17-0] (7 lines) [gpo 2-8] LocalServer_OSPrompt:~# s1901-gpiodetect s1901-gpiodetect gpiochip2 [mcp23s17-1] (7 lines) [gpio 1-7] The following GPIO devices must be present: tic12400 mcp23s17-0 mcp23s17-1 July 14, 2023 www.kontron.com // 104...
  • Page 105 S1901_EvoTrac_User_Guide Configuring Configuring July 14, 2023 www.kontron.com // 105...

  • Page 106: Configuring Date And Time

    Step_1 From the left-side menu, select Configuration, Configuration, System, System, and then NTP NTP . Step_2 Enable the NTP service by changing the value from the Mode Mode dropdown menu to Enabled . Enabled July 14, 2023 www.kontron.com // 106...
  • Page 107 Step_5 (Optional) To make the change persistent, save running-config to startup-config. Configuring the switch NOS date and time using the CLI Configuring the switch NOS date and time using the CLI There are three options to proceed: July 14, 2023 www.kontron.com // 107...
  • Page 108 [ENDING_MONTH] [ENDING_DAY] [ENDING_HH:MM] [MINUTE_OFFSET] [ENDING_HH:MM] [MINUTE_OFFSET] NOTE: This command sets the parameters for every year. No reprogramming needed. NOTE: Step_4 Verify the time zone configuration. LocalSwitchNOS_OSPrompt:~(config)# exit exit LocalSwitchNOS_OSPrompt:~# show clock detail show clock detail July 14, 2023 www.kontron.com // 108...
  • Page 109 +%T -s "11:14:00" Setting the date date +%Y%m%d -s "20120418" date +%Y%m%d -s "20120418" Setting the date and time with NTP See information on Chrony Setting the date and time with PTP See information on linuxptp July 14, 2023 www.kontron.com // 109...
  • Page 110 Adding a NOS VLAN interface IP address using the Web UI Refer to Accessing the switch NOS using the switch NOS Web UI for access instructions. Adding a NOS VLAN interface Adding a NOS VLAN interface July 14, 2023 www.kontron.com // 110...

  • Page 111: Configuring A Static Ip Address

    Step_3 Press on the Save Save button to confirm. Step_4 (Optional) To make the change persistent, save running-config to startup-config. Configuring a dynamic IP address using DHCP Configuring a dynamic IP address using DHCP July 14, 2023 www.kontron.com // 111...
  • Page 112 Removing a NOS VLAN interface IP address using the Web UI Removing a NOS VLAN interface IP address using the Web UI Refer to Accessing the switch NOS using the switch NOS Web UI for access instructions. July 14, 2023 www.kontron.com // 112...
  • Page 113 For the secure HTTPS protocol to work, a certificate needs to be installed. As a temporary measure, the switch can create a self-signed certificate, which is secure but cannot be trusted as a long term solution. Users will need to provide their own certificate, delivered from a valid certificate authority. July 14, 2023 www.kontron.com // 113...
  • Page 114 Mode is set to Disabled Disabled . Certificate Certificate Holds the Pass Pass passphrase Phrase Phrase protecting the (Available certificate to when the upload. Certificate Certificate Maintain Maintain field is set to Upload Upload July 14, 2023 www.kontron.com // 114...

  • Page 115: Generating A Self-Signed Certificate

    Upload a certificate from a user file system Generating a self-signed certificate Generating a self-signed certificate A self-signed certificate, which should only be used as a temporary solution, allows communication to be encrypted, but cannot certify that the server is July 14, 2023 www.kontron.com // 115...
  • Page 116 If a self-signed certificate is used, the Web browser will display a warning message before you can access the page. If this is the case, click on Advanced. Advanced. Then click on the Proceed to [IP_ADDRESS] (unsafe) Proceed to [IP_ADDRESS] (unsafe) link. From the switch Web UI, perform the following steps. July 14, 2023 www.kontron.com // 116...
  • Page 117 Step_5 The Certificate Status Certificate Status field will indicate that the certificate is present. Step_6 (Optional) To make the change persistent, save running-config to startup-config. Uploading a certificate from a URL Uploading a certificate from a URL July 14, 2023 www.kontron.com // 117...
  • Page 118 Step_7 The Certificate Status Certificate Status field will indicate that the certificate is in present. Step_8 (Optional) To make the change persistent, save running-config to startup-config. Deleting an installed certificate Deleting an installed certificate July 14, 2023 www.kontron.com // 118...
  • Page 119 Mode field to Disabled Disabled . Step_3 Press Save Save to confirm. Step_4 (Optional) To make the change persistent, save running-config to startup-config. Configuring the interface for HTTPS only Configuring the interface for HTTPS only July 14, 2023 www.kontron.com // 119...
  • Page 120 Automatic Redirect field to Enabled Enabled . Step_5 Press Save Save to confirm. Step_6 (Optional) To make the change persistent, save running-config to startup-config. Configuring the interface for HTTP and HTTPS Configuring the interface for HTTP and HTTPS July 14, 2023 www.kontron.com // 120...
  • Page 121 Enabled beforehand. Switch secure HTTP Shows if a certificate is installed in the system. Presented certificate is Presented means that a certificate is installed and can be used for HTTPS encryption. presented Certificates Certificates July 14, 2023 www.kontron.com // 121...
  • Page 122 NOTE : Certificate generation can take a few seconds. If it is still NOTE generating when checking the status, the CLI will indicate that it is generating... Step_4 (Optional) To make the change persistent, save running-config to startup-config. July 14, 2023 www.kontron.com // 122...
  • Page 123 Step_4 Ensure the certificate and HTTP web server are correctly configured. LocalSwitchNOS_OSPrompt: ~(config) # do show ip http do show ip http Step_5 (Optional) To make the change persistent, save running-config to startup-config. July 14, 2023 www.kontron.com // 123...
  • Page 124 NOS00A0A5E26E4A(config)# copy running-config startup- startup-config. config config LocalSwitchNOS_OSPrompt:~# copy running-config startup- copy running-config startup- Building configuration... Building configuration... config config % Saving 1341 bytes to flash: startup-config % Saving 1341 bytes to flash: startup-config July 14, 2023 www.kontron.com // 124...

  • Page 125: Configuring The Switch

    Almost all configuration commands have a corresponding 'no' form. The 'no' form is syntactically similar (but not necessarily identical) to the configuration command; however, it either resets the parameters to default values for the configurable item or disables the item altogether. July 14, 2023 www.kontron.com // 125...
  • Page 126 10GbE Copper Back Plane link. Verifying link status using the Web UI Verifying link status using the Web UI Access the switch NOS Web UI. Refer to Accessing the switch network operating system for access instructions. July 14, 2023 www.kontron.com // 126...
  • Page 127 (Optional) To make the change persistent, save running-config to startup-config. Disabling a switch port using the Web UI Disabling a switch port using the Web UI Access the switch NOS Web UI. Refer to Accessing the switch network operating system for access instructions. July 14, 2023 www.kontron.com // 127...
  • Page 128 Configuring the port membership Displaying VLANs Displaying VLANs Displaying VLANs using the CLI Displaying VLANs using the CLI Access the switch NOS CLI. Refer to Accessing the switch network operating system for access instructions. July 14, 2023 www.kontron.com // 128...
  • Page 129 Removing a VLAN Removing a VLAN Removing a VLAN using the CLI Removing a VLAN using the CLI Access the switch NOS CLI. Refer to Accessing the switch network operating system for access instructions. July 14, 2023 www.kontron.com // 129...
  • Page 130 Step_3 (Optional) To make the change persistent, save running-config to startup-config. Configuring port membership using the Web UI Configuring port membership using the Web UI Access the switch NOS Web UI. Refer to Accessing the switch network operating system for access instructions. July 14, 2023 www.kontron.com // 130...

  • Page 131: Configuring Static Routing

    [PLANNED_VLAN_IP_ADDRESS] [PLANNED_VLAN_IP_ADDRESS] [MASK_ADDRESS] [MASK_ADDRESS] Step_4 (Optional) To make the change persistent, save running-config to startup-config. Configuring static routing Configuring static routing Static routing can be configured using: The CLI The switch Web UI July 14, 2023 www.kontron.com // 131...

  • Page 132: Managing The Switch Configuration

    Accessing the switch network operating system for access instructions. Displaying the running configuration using the CLI Displaying the running configuration using the CLI Step_1 Display the current configuration. LocalSwitchNOS_OSPrompt:~# show show running-config running-config Displaying versions Displaying versions July 14, 2023 www.kontron.com // 132...
  • Page 133 Board Type : Kontron S1901 Flash Type : NOR-only Port Count : 9 Product : Kontron S1901 Switch Software Version : Kontron S1901 NOS IStaX 0.25.01561c82 Build Date : 2021-07-14T14:02:04-04:00 Code Revision : 2ca68f2+ Saving the current configuration using the CLI Saving the current configuration using the CLI Changes to the switch configuration are not persistent after rebooting the switch.

  • Page 134: Changing The Boot Order

    Save & Exit menu and then to the Boot Override Boot Override section. Enabling secure boot Enabling secure boot The following application notes are required to generate secure boot keys and configure them: Generating custom secure boot keys Provisioning custom secure boot keys July 14, 2023 www.kontron.com // 134...
  • Page 135 Step_3 Use the application notes mentioned above as reference to generate and configure secure boot keys. Step_4 Navigate to the Save & Exit Save & Exit menu, go to Save Changes and Exit Save Changes and Exit and press Enter Enter to confirm. Configuring the TPM Configuring the TPM July 14, 2023 www.kontron.com // 135...
  • Page 136 Save Changes and Exit and press Enter Enter to confirm. Configuring the PBIT Configuring the PBIT PBIT configuration steps. To use the PBIT tool and read its result, it must be enabled in the EFI Shell. July 14, 2023 www.kontron.com // 136...
  • Page 137 USB Dev 11 connected Number of System Test Elements detected : 50 DRAM area [ 0x7316A0A0 0x7316B1A8 ] will be stored in EEPROM Storing system infos... Storing system configuration... Step_3 Exit the EFI Shell. Shell> exit exit July 14, 2023 www.kontron.com // 137...

  • Page 138: Configuring Serial Ports

    Enable or disable the internal chip receiver termination on RS-485/422 ports Relevant sections: Relevant sections: Linux devices Connector pinouts for building custom cables Kontron test cables Default serial port configurations Default serial port configurations Serial ports Serial ports Connector Default configuration...
  • Page 139 To use this command, RS-485 #1 and RS-485 #2 must be enabled. To find the value of the [SMBUS_NO] variable, refer to Defining the I2C bus number Use the following command: LocalServer_OSPrompt:~# sudo gpioset pca9539-[SMBUS_NO]-0074 10=1 sudo gpioset pca9539-[SMBUS_NO]-0074 10=1 July 14, 2023 www.kontron.com // 139...
  • Page 140 Enabling or disabling the receiver termination on RS-485 #3 Use the following command: LocalServer_OSPrompt:~# sudo sudo gpioset exar_gpio0 8= gpioset exar_gpio0 8= [VALUE] [VALUE] Enabling or disabling the receiver termination on RS-485 #4 Enabling or disabling the receiver termination on RS-485 #4 July 14, 2023 www.kontron.com // 140...
  • Page 141 S1901_EvoTrac_User_Guide Use the following command: LocalServer_OSPrompt:~# sudo sudo gpioset exar_gpio0 10= gpioset exar_gpio0 10= [VALUE] [VALUE] July 14, 2023 www.kontron.com // 141...
  • Page 142 LocalServer_OSPrompt:~# apt-get install -y gpsd-clients apt-get install -y gpsd-clients Step_2 Configure the serial connection at a baud rate of 115200. kontron@s1901:~$ sudo ubxtool -f /dev/ttyACM0 -P 32 -S kontron@s1901:~$ sudo ubxtool -f /dev/ttyACM0 -P 32 -S LocalServer_OSPrompt:~# ubxtool -f /dev/ttyACM0 -P 32 -S...
  • Page 143 Access the OS using the preferred method. Step_2 Read the NMEA value directly from the USB device. $GNRMC,,V,,,,,,,,,,N,V*37 LocalServer_OSPrompt:~# cat /dev/ttyACM0 cat /dev/ttyACM0 $GNVTG,,,,,,,,,N*2E $GNGGA,,,,,,0,00,99.99,,,,,,*56 $GNGSA,A,1,,,,,,,,,,,,,99.99,99.99,99.99,1*33 $GNGSA,A,1,,,,,,,,,,,,,99.99,99.99,99.99,2*30 $GNGSA,A,1,,,,,,,,,,,,,99.99,99.99,99.99,3*31 $GNGSA,A,1,,,,,,,,,,,,,99.99,99.99,99.99,4*36 $GPGSV,1,1,00,1*64 $GLGSV,1,1,00,1*78 $GAGSV,1,1,00,7*73 $GBGSV,1,1,00,1*76 $GNGLL,,,,,,V,N*7A July 14, 2023 www.kontron.com // 143...
  • Page 144 Yes . Step_4 Enter the password in fields Password Password and Password Password (again) . (again) Step_5 Click on Save Save to confirm. Step_6 (Optional) To make the change persistent, save running-config to startup-config. July 14, 2023 www.kontron.com // 144...

  • Page 145: Adding A User

    (Optional) To make the change persistent, save running-config to startup-config. Configuring privilege level Configuring privilege level Step_1 From the left-side menu, select Configuration Configuration , Security Security , Switch Switch and then Users Users . Step_2 Click on the desired user. July 14, 2023 www.kontron.com // 145...
  • Page 146 Configuring OS users Access the OS. Refer to Accessing the operating system of a server for access instructions. Step_1 Proceed with configuration as recommended in the OS documentation. Typical commands in Linux Typical commands in Linux July 14, 2023 www.kontron.com // 146...
  • Page 147 S1901_EvoTrac_User_Guide Typical commands in Linux Typical commands in Linux Adding a user useradd [OPTIONS] USERNAME Removing a user userdel [OPTIONS] USERNAME For more information, search for "User and Group Management in Linux". July 14, 2023 www.kontron.com // 147...
  • Page 148 All devices linked to one of the I2C buses of the S1901 will be assigned a number when the platform boots. For configuration and operation purposes, the number assigned to the SMBus and the kempld must be known. July 14, 2023 www.kontron.com // 148...
  • Page 149 The default behavior when using hardware management is as follows: When the platform is not powered: The IKS is set to the ON position The PSU is powered The power LED turns on The platform is powered The OS booting process occurs July 14, 2023 www.kontron.com // 149...
  • Page 150 Adding a script in the OS to program the IKS behavior For the typical behavior to work properly, a script must be included in the OS. This script is typically included by Kontron, but it is good practice to check for its presence.
  • Page 151 Use the following commands to set the KeyOvrSt to 0 . LocalServer_OSPrompt:~# i2cset -y i2cset -y [SMBUS_NO] [SMBUS_NO] 0x55 2 "$(($(i2cget -y 0x55 2 "$(($(i2cget -y [SMBUS_NO] [SMBUS_NO] 0x55 2) | 0x04))" 0x55 2) | 0x04))" July 14, 2023 www.kontron.com // 151...
  • Page 152 S1901_EvoTrac_User_Guide Operating Operating July 14, 2023 www.kontron.com // 152...
  • Page 153 10 mA (consumption of less than 10 mA; only the ignition key switch is powered) Powered OFF completely (power supply cable is unplugged) Also note that i n the S1901 platform, the software reset of the COMe and of the network switch are independent. Relevant sections: Relevant sections: July 14, 2023 www.kontron.com // 153...
  • Page 154 S1901_EvoTrac_User_Guide Power consumption and power budget Connector pinouts for building custom cables Kontron test cables Accessing the operating system of a server (to access the OS CLI) Accessing the switch network operating system (to access the network switch CLI or Web UI)
  • Page 155 /etc/systemd/logind.conf HandlePowerKey= ignore can be used to prevent a short press on the power button from having an effect. NOTE: If the OS does not complete the shutdown procedure, the platform remains powered ON. NOTE: July 14, 2023 www.kontron.com // 155...
  • Page 156 From standby state Going to 10 mA state from powered ON state Going to 10 mA state from powered ON state This action is performed using the ignition key switch. Electrical prerequisites Electrical prerequisites July 14, 2023 www.kontron.com // 156...
  • Page 157 The power supply cable must be plugged in. The Ignition Key Switch Input pin is connected to Vbat+. The Reset Button Input pin is not connected (internal pull-up). The Power Button Input pin is not connected (internal pull-up). July 14, 2023 www.kontron.com // 157...
  • Page 158 The Power Button Input pin is not connected (internal pull-up). Procedure Procedure This is not currently documented. Resetting the network switch using the network switch CLI Resetting the network switch using the network switch CLI July 14, 2023 www.kontron.com // 158...

  • Page 159: Powering Off Completely

    Step_1 From the left-side menu, select Maintenance Maintenance and then Restart Device Restart Device . Powering OFF completely Powering OFF completely The platform can be completely powered OFF by unplugging the power supply cable. July 14, 2023 www.kontron.com // 159...
  • Page 160 The power LED indicates that power is available at the power supply output to supply platform components. It will not be ON when power is supplied and the platform is in 10 mA state . On this platform, the power LED will turn ON by default . To use the night vision mode, it needs to be set to OFF. July 14, 2023 www.kontron.com // 160...
  • Page 161 1 = Turn ON green gpioset --mode=wait pca9539-[SMBUS_NO]-0074 5=1 0 = Turn OFF green gpioset --mode=wait pca9539-[SMBUS_NO]-0074 5=0 0 = Turn ON IR gpioset --mode=wait pca9539-[SMBUS_NO]-0074 13=0 1 = Turn OFF IR gpioset --mode=wait pca9539-[SMBUS_NO]-0074 13=1 July 14, 2023 www.kontron.com // 161...
  • Page 162 Relevant sections: Relevant sections: Accessing the operating system of a server Connector pinouts for building custom cables (for information on GPIO electrical characteristics) Kontron test cables Grounding (for information on electrical connections) Installing the board support package Description of platform GPIOs...
  • Page 163 [GPIO_PIN] [GPIO_PIN] or or LocalServer_OSPrompt:~# gpioget gpioget [GPIO_CHIP_NAME] [GPIO_PIN] [GPIO_CHIP_NAME] [GPIO_PIN] Where: [GPIO_CHIP_NAME] = gpio-kempld or pca9539-[KEMPLD_NO]-0077 [GPIO_PIN] = see tables below Configuring a GPIO as a GPO Configuring a GPIO as a GPO July 14, 2023 www.kontron.com // 163...

  • Page 164: Gpio Mapping

    Name used in the connector pinout Name used in the connector pinout J1 J1 P6 pin of the DB25 connector of the Kontron test cable for P6 pin of the DB25 connector of the Kontron test cable for tic12400 tic12400...
  • Page 165 Name used in the connector pinout section Name used in the connector pinout section J2 pin J2 pin P6 pin of the DB25 connector of the Kontron test cable for J2 P6 pin of the DB25 connector of the Kontron test cable for J2 tic12400 tic12400...

  • Page 166: Common Applications

    The following section was documented using the following loopback configuration: can0 ↔ can1 can2 ↔ can3 Sending and listening to messages between interfaces Sending and listening to messages between interfaces In this example, two Bash shells are used. July 14, 2023 www.kontron.com // 166...
  • Page 167 RX - - 2AA [8] 11 22 33 44 55 66 77 88 Where: TX is the transmitter interface RX is the receiver interface More information More information The following links provide more information about SocketCAN and can-utils: https://www.kernel.org/doc/html/latest/networking/can.html https://github.com/linux-can/can-utils July 14, 2023 www.kontron.com // 167...
  • Page 168 S1901_EvoTrac_User_Guide Monitoring Monitoring July 14, 2023 www.kontron.com // 168...

  • Page 169: Monitoring Sensors

    ERROR: Can't get value of subfeature temp7_input: Divide by zero 49 2> /dev/null NTC2_A2D: N/A to remove error from output. CoreTemp Intel Digital Temperature ISA 0 sensors coretemp-* $ sensors coretemp-* Thermal coretemp-isa-0000 July 14, 2023 www.kontron.com // 169...
  • Page 170 (max = +3.63 V, crit max = +3.79 V) Temp: +62.0°C (high = +105.0°C, crit = +125.0°C) Amp Out: 673.00 mA (max = +12.00 A, crit max = +13.00 A) SMBus sensors sic451-i2c-*-13 $ sensors sic451-i2c-*-13 0x13 sic451-i2c-0-13 July 14, 2023 www.kontron.com // 170...
  • Page 171 This .xml file can be used to create a full log of system statuses in time that can be exported to different analysis tools. NOTE: Kehm is provided in evaluation form, which allows monitoring, but no customization. Contact your Kontron sales representative to obtain a full NOTE: license giving access to all kehm features.
  • Page 172 PASSED : vpd (fast,simple) PASSED : gbe0_loop (slow,simple) PASSED : 10gbe0_loop (slow,simple) PASSED : sata0_ctrl (fast,simple) PASSED : xhci_ctrl (fast,simple) PASSED : system (fast,simple) RUN : 20 PASSED : 20 FAILED : 0 NOT_RUN: 0 July 14, 2023 www.kontron.com // 172...

  • Page 173: Maintenance

    S1901_EvoTrac_User_Guide Maintenance Maintenance July 14, 2023 www.kontron.com // 173...

  • Page 174: System Event Log

    Access the network switch Web UI. Refer to Accessing the switch network operating system for access instructions. Step_1 From the left-side menu of the switch NOS Web UI, select Monitor Monitor , then System System , and then July 14, 2023 www.kontron.com // 174...

  • Page 175: Component Replacement

    S1901_EvoTrac_User_Guide Component replacement Component replacement Refer to Components installation and assembly for component replacement procedures. July 14, 2023 www.kontron.com // 175...

  • Page 176: Backup And Restore

    Using SCP Using the switch NOS Web UI – not recommended Because of a known issue, Kontron recommends not using not using the switch NOS Web UI to perform backup and restore procedures. Backing up and restoring the switch NOS configuration using SCP...

  • Page 177: Backing Up The Switch Configuration

    This can be achieved by selecting Maintenance Maintenance , then Restart Restart Device from the left-side menu. Then, confirm that a restart is to be performed by clicking Device Yes . July 14, 2023 www.kontron.com // 177...

  • Page 178: Upgrading The Bsp

    Prerequisites Prerequisites The .zip .zip archive provided by Kontron has been decompressed in a folder on a Linux OS installed on the platform . Relevant sections: Relevant sections: Installing the board support package Accessing the operating system of a server...
  • Page 179 Prerequisites A server configured for the desired protocol is available and accessible from the switch NOS. The . itb itb upgrade file provided by Kontron was downloaded on the server. Relevant section: Relevant section: Accessing the switch network operating system...
  • Page 180 From the OS CLI Once the FGPA transfer begins, it must not be stopped. Once the FGPA transfer begins, it must not be stopped. Otherwise, the platform will need to be shipped back to Kontron for a factory update. Make sure power or communication is not lost during the upgrade. We also recommend performing the upgrade via the console on We also recommend performing the upgrade via the console on RS-232 #1.
  • Page 181 LocalServer_OSPrompt:~# sudo i2cdump -y $i2cbus 0x55 i | grep 00\: | awk '{print $17 "." $16 "." $15 $14 $13 $12 }' sudo i2cdump -y $i2cbus 0x55 i | grep 00\: | awk '{print $17 "." $16 "." $15 $14 $13 $12 }' July 14, 2023 www.kontron.com // 181...

  • Page 182: Troubleshooting

    S1901_EvoTrac_User_Guide Troubleshooting Troubleshooting July 14, 2023 www.kontron.com // 182...
  • Page 183 The operating system error messages and logs can be used to make health diagnostics. Refer to the operating system's documentation for instructions. Typical commands in Linux Typical commands in Linux The following commands create a log file. This is the file to be sent to Kontron for troubleshooting. Getting various logs sudo su i2cbus="$(i2cdetect -l | grep "SMBus I801"...
  • Page 184 A list of devices connected to the platform A list of cables plugged into the platform A list of interfaces used (serial, network, CAN bus, etc.) Whether the Kontron Test Harness was used or the cables were custom-made July 14, 2023 www.kontron.com...

  • Page 185: Factory Default

    NOTE: This procedure is equivalent to a factory reset for switch configuration. All configuration changes will be lost. NOTE: Step_1 Restore the default configuration. LocalSwitchNOS_OSPrompt:~# reload defaults reload defaults Step_2 To make the revert to default values permanent, use the following command. LocalSwitchNOS_OSPrompt:~# copy running-config startup-config copy running-config startup-config July 14, 2023 www.kontron.com // 185...

  • Page 186: Support Information

    S1901_EvoTrac_User_Guide Support information Support information Kontron's technical support team can be reached through the following means: By phone: 1-888-835-6676 By email: support-na@kontron.com Via the website: www.kontron.com July 14, 2023 www.kontron.com // 186...

  • Page 187: Application Notes

    S1901_EvoTrac_User_Guide Application notes Application notes July 14, 2023 www.kontron.com // 187...
  • Page 188 -y efitools sbsigntool mkdir make_keys cd make_keys wget https://www.rodsbooks.com/efi-bootloaders/mkkeys.sh chmod +x mkkeys.sh ./mkkeys.sh Step_2 The commands will generate a lot of files. You need the *.cer file to use in the provisioning procedure. July 14, 2023 www.kontron.com // 188...
  • Page 189 Step_1 Access the UEFI Setup Utility by pressing F2 or DEL when the sign-on screen is displayed during boot. Step_2 Access the Secure Boot Secure Boot submenu from the Security Security tab. July 14, 2023 www.kontron.com // 189...
  • Page 190 A list of available file systems will be displayed, using their corresponding UEFI device path. Select the USB device where the Public Key certificates are located. Note that if Virtual Media redirection is used, the device will be identified as a CDROM. July 14, 2023 www.kontron.com // 190...
  • Page 191 Key Exchange Keys to update or append the KEK database with your own. In this case: Selecting Update Update from the pop-up window will erase the pre-provisioned KEK entries and add a new KEK as a single entry; July 14, 2023 www.kontron.com // 191...
  • Page 192 Step_15 Select Save Changes and Exit Save Changes and Exit from the Setup Utility. To take advantage of the Secure Boot feature, make sure it is enabled in the Security → Secure Boot submenu. July 14, 2023 www.kontron.com // 192...
  • Page 193 Symbols Symbols The following symbols are used in Kontron documentation. DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury. WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.
  • Page 194 IPMI Intelligent Platform Management Interface Interrupt Request Line KB, Kbyte Kilobyte – 1024 bytes Keyboard Controller Style KEAPI Kontron Embedded Application Programming Interface Keyboard, Video, Mouse Local Area Network Light-Emitting Diode Low Profile Low Pin Count LVDS Low Voltage Differential SCSI...
  • Page 195 System on a Chip Serial over LAN Solid State Drive Secure Shell THOL Tested Hardware and Operating System List Trusted Platform Module Technischer Uberwachungs-Verein (A safety testing laboratory with headquarters in Germany) UART Universal Asynchronous Receiver Transmitter July 14, 2023 www.kontron.com // 195...
  • Page 196 Volt-Ampere (volts multiplied by amps) Volts Alternating Current Volts Direct Current Verband Deutscher Electrotechniker (German Institute of Electrical Engineers) Video Graphics Array vRAN Virtualized Radio Access Network Voltage Standby Watt WEEE Waste Electrical and Electronic Equipment Ω July 14, 2023 www.kontron.com // 196...
